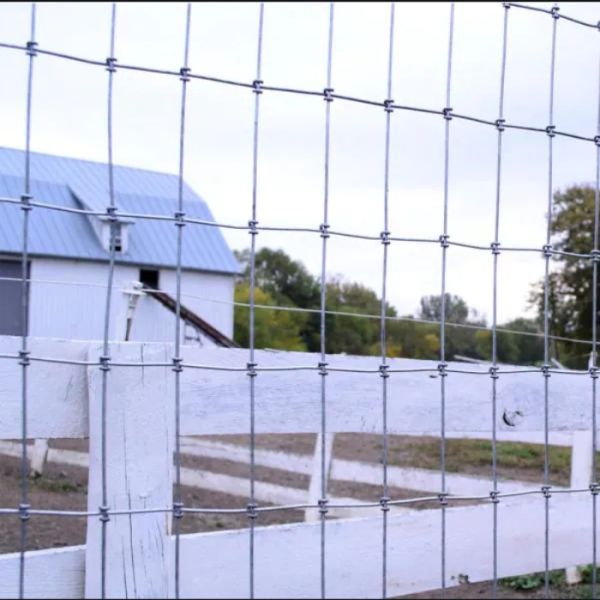

Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Specifications
Edge wire diameter :
2.0mm~3.2mm
Length :
50m-100m
Surface treatment :
Hot dipped galvanized
Opening size :
(Warp) 15-14-13-11-10-8-6; (Weft) 15-18-20-40-50-60-65
Height :
0.8m,1.0m,1.2m,1.5m,1.7m,2.0m,2.3m
Brand Name :
Bingze
Model Number :
FFCF20230921
Certification :
ISO9001-2015
Place of Origin :
Anping,China
MOQ :
1roll
Price :
13-16 dollars
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
15000rolls per month
Delivery Time :
10-15days
Packaging Details :
plastic film, wooden pallet, bulk package or as your demand for cheap field sheep wire mesh fence
Mesh wire diameter :
1.8mm~2.5mm
Description
0.8m To 2.4m Woven Wire Mesh Fencing Galvanised Stock Fencing Heat Treat
This versatile woven wire mesh fencing is designed for agricultural and livestock applications, featuring galvanized construction and heat treatment for enhanced durability.
Applications
  • Farm wire mesh fence
  • Deer fence
  • Horse fence
  • Sheep fence
  • Goat fence
  • Alpacas and ostriches fence
Construction Features
The fence consists of line wire and stay wire with independent knots. Narrower vertical spacing near the bottom provides improved stock resistance.
Technical Specifications
  • Materials: Low carbon galvanized wire, hot dipped galvanized high carbon wire, low carbon cold galvanized wire
  • Knot Type: Hinge knot, Fixed knot
  • Surface Treatment:
    • Class A: Hot dipped galvanized hinge joint field fence (zinc coated: 220-260g/m²)
    • Class B: Hot dipped galvanized hinge joint field fence (zinc coated: 60-70g/m²)
    • Class C: Electro galvanized hinge joint field fence (zinc coated: 15-20g/m²)
  • Mesh Wire Diameter: 1.8mm~2.5mm
  • Edge Wire Diameter: 2.0mm~3.2mm
  • Opening Dimensions (cm): Warp: 15-14-13-11-10-8-6; Weft: 15-18-20-40-50-60-65
  • Height: 0.8m, 1.0m, 1.2m, 1.5m, 1.7m, 2.0m, 2.3m (custom heights available)
  • Length: 50m-100m (custom lengths available)
Product Specifications
Sequence Number Specification Weight (kg) Edge Wire Diameter (mm) Inner Wire Diameter (mm)
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 / 2.0
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 / 2.0
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 / 2.0
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 / 2.0
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 / 2.0
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 / 2.0
7 10/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 / 2.0
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203+229 27.3 2.5 / 2.0
9 19/150/1442/50 89+102+114+127+140+152+178+203+229 28.4 2.5 / 2.0
Product Details
Farm Wire Mesh Fence (also known as Grassland Fence, Cattle Fence, Kraal Network Fence) is widely used in America and Europe. Manufactured in various heights and styles, it features graduated spacing with smaller mesh openings at the bottom to prevent entry from small animals. The hinge joint construction enhances flexibility and cushioning while maintaining fence tension under changing weather and temperature conditions.
Product Applications
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Hinged mesh fencing is an economical and durable solution for fencing pastures, fields, forests, and other large areas. It's the preferred choice for ranchers protecting jumping animals like deer, horses, cows, sheep, and goats. The 5cm mesh height at the bottom is also recommended for poultry such as chickens and rabbits, providing protection against rabbits and foxes for farm fields, roads, forests, and gardens.
Packaging Options
  • Nude packing
  • Plastic film
  • Wood pallet
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Company Profile
Anping Bingze Wire Mesh Products Co., Ltd. has specialized in stainless steel wire mesh production and R&D for 25 years. As a manufacturer integrating production, processing, distribution, and wholesale, our product range includes galvanized welded wire mesh, stainless steel welded wire mesh, PVC welded wire mesh, crimped wire mesh, galvanized woven wire mesh, stainless steel woven wire mesh, chain link fence, steel fence, welded wire mesh fence panels, PVC euro fence, 358 anti-climb fence, farm wire mesh fence, and razor wire.
Since our establishment, we've focused on four key principles: High Quality, Quick Delivery, Better Price, and Thorough Service. Our reputation is built on product quality and credit standing, earning favorable customer feedback worldwide.
We utilize precise manufacturing machines and techniques, combining scientific management methods with quality control systems. Our products meet high standards and are exported to Southeast Asia, Middle East, America, Japan, and African countries.
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Certifications
Hot Dipped Galvanized Woven Wire Mesh Fence 0.8m to 2.4m Height with Hinge Joint Knot for Farm and Stock Fencing
Frequently Asked Questions
Are you factory or Middleman?
Yes, we are factory, since 1988
Can you offer free sample?
Yes, but usually the customer needs to pay the freight
What information should I provide for a lowest quotation?
The specification, market, pictures, quantity
Can I customize the products?
Yes, as long as you provide specifications and drawings
How about the delivery time?
Usually within 15-20 days, customized orders may require longer time
Which kind of Trading Terms you can accept?
Payment: L/C, D/P, D/A, T/T (with 30% deposit), Western Union, Paypal, etc.
How many days you need to produce one container fence?
Production Time: 12-15 days for one container
