Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Gr9 Seamless Titanium Tube ASTM B338 Light Weight for Industrial Applications
Specifications
Brand Name :
Hongbao
Model Number :
HB-TI
Certification :
DNV,PED,ISO,TUV,LR
Place of Origin :
Jiangsu, China
MOQ :
200kg
Price :
Negotiable
Payment Terms :
D/P,L/C,D/A,L/C,Western Union
Supply Ability :
800MT/YEAR
Delivery Time :
within 50 days
Packaging Details :
seaworthy plywooden case packing.
Material: :
Gr1,Gr2,Gr3,Gr7,G9,Gr12
Certificate: :
DNV,PED,ISO,TUV,LR
Thickness: :
0.4-10mm
OD: :
10-114mm
Length: :
100-15000mm
Shape: :
Round
Description

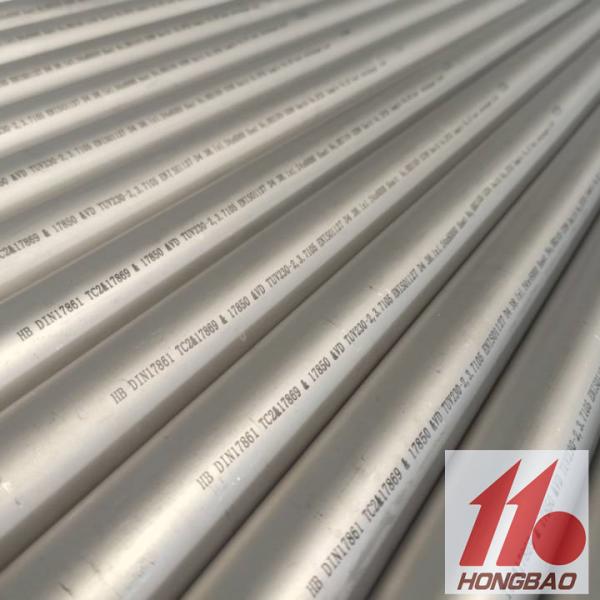

Gr9 Seamless Titanium Tube
Low Price 3.1 Certificate Gr9 Seamless Titanium Tube Standard ASTM B338 ASTM B861 ASME SB338 ASME SB861
Product Description
Titanium tubes are the ninth most abundant element in the earth's crust and the seventh most abundant metal. Its low density, slightly over half that of steel, and its high strength combination is the reason for the metals growing preference in commercial aircraft. The alloying of titanium tubing with elements such as aluminum and vanadium increase the strength of titanium while at the same time retains its weight advantage over steel.
Titanium is classified in two categories, commercially pure and alloys with additives such as aluminum and vanadium. We are a titanium tubing manufacturer and supplier, and our inventories consist of both types and cover both seamless and welded methods of manufacture.
Titanium Tube for Industrial Applications
  • Marine Industry
  • Chemical and petrochemical industry
  • Pulp and paper industry
  • Sporting goods - golf shafts, bicycle frames, etc.
  • Medical industry
  • Nuclear industry
Product Specifications
Standard ASTM B337, ASTM B338, ASTM B861, ASTM B862
Grade Gr1, Gr2, Gr7, Gr9, Gr12
Dimension OD*WT*L (10-114)*(0.4-10)*(100-15000)mm
Manufacturing Method Cold rolled
Condition Annealed(M)
Features Light weight, excellent corrosion resistivity, strongly heat-resistance, high strength
Inspection Ultrasonic testing, Hydrostatic testing, Flattening testing, visual surface inspection, Dimensional inspection, tensile properties inspection and Chemical elements analysis
Basic Tension Data
Grade Tensile Strength, min Yield Strength 0.2% offset Yield Elongation in 2in or 50mm Min%
1 35 Ksi / 240 Mpa 20-45 Ksi / 138-310 Mpa 24
2 50 Ksi / 345 Mpa 40-65 Ksi / 275-450 Mpa 20
7 50 Ksi / 345 Mpa 40-65 Ksi / 275-450 Mpa 20
9A 125 Ksi / 860 Mpa 105 Ksi / 725 Mpa 10
9B 90 Ksi / 620 Mpa 70 Ksi / 483 Mpa 15
12 70 Ksi / 483 Mpa 50 Ksi / 345 Mpa 18
A. Properties for cold-worked and stress-relieved B. Annealed. C. Solution treated
Chemical Composition of Material
  • Grade 1 - Unalloyed titanium
  • Grade 2 - Unalloyed titanium
  • Grade 7 - Unalloyed titanium plus 0.12 to 0.25% palladium
  • Grade 9 - Titanium alloy (3% aluminum, 2.35% vanadium)
  • Grade 12 - Titanium alloy (0.3% molybdenum, 0.8% nickel)
Size Tolerance
Standard OD Tolerance WT Tolerance
ASTM B338 <25.4mm, ±0.102mm ±10%
24.4-38.1mm ±0.127mm
38.1-50.8mm ±0.152mm
50.8-63.5mm ±0.178mm
60.3-88.9mm ±0.254mm
ASTM B861 3.2-3.8mm -0.794/+0.397mm ±12.5%
38-102mm ±0.794mm
102-203mm 0.794/+1.588mm
