Specifications
Brand Name :
HONGBAO
Model Number :
HG-OWD1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
3000T/Month
Delivery Time :
45 - 60 days
Packaging Details :
Plywood case
Material :
30CrMo（4130/34CrMo4）, 42CrMo（4140/42CrMo4）
Standard :
GB/T 9808, ASTM A519, DIN2391, EN10305-1
OD Range :
4-219mm
WT Range :
0.5-20mm
Processing :
Cold Drawn
Description
Gr 4130 OD 114 Oil Drilling Pipe Chromoly Steel Tube for Casing Tubing
Product Overview
This Gr 4130 OD 114mm Oil Drilling Pipe represents a high-performance chromoly steel tube specifically engineered for demanding casing and tubing applications in the oil and gas industry. Manufactured from AISI 4130 chromium-molybdenum alloy steel with a precise 114mm outer diameter, this seamless pipe delivers exceptional mechanical properties and reliability for critical downhole operations in both conventional and challenging drilling environments.
The pipe's chromium-molybdenum composition provides an optimal balance of high tensile strength, excellent toughness, and superior fatigue resistance, significantly outperforming conventional carbon steel pipes in demanding drilling applications. With typical yield strengths ranging from 550 MPa to 750 MPa, this material maintains its structural integrity under extreme torsional stresses, compression loads, and cyclic bending moments encountered during drilling and production operations.
The seamless manufacturing process guarantees a homogeneous microstructure free from welds and imperfections, providing consistent mechanical properties throughout the pipe length. This chromoly drill pipe undergoes precise heat treatment including quenching and tempering to achieve optimal mechanical characteristics, including improved impact resistance and enhanced fatigue life compared to standard drilling materials.
Specifications
Specifications Details
Standards ASTM, ASME and API
Size O.D.: 4 to 219mm W. T.: 0.5 to 20mm
Specialized in Large Diameter Size
Length Within 13500mm
Type Seamless
Shape Round
End Plain End, Beveled End, Threaded
Chemical Composition
Steel Grade C Si Mn P S Cr Mo
4130 0.28-0.33 0.15-0.35 0.40-0.60 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.15-0.35 0.75-1.00 ≤0.040 ≤0.040 0.80-1.10 0.15-0.25
Mechanical Properties
Steel Grade Deliver Condition Tensile Strength (MPa) Yield Strength (MPa) Elongation (%) Hardness (HRC)
4130 + SR ≥813 ≥690 ≥15% ≥24
4140 QT ≥950 ≥850 ≥14% 28 - 33
Key Features and Benefits
  • Superior Mechanical Properties: High yield strength (550-950 MPa) and excellent impact toughness
  • Enhanced Collapse Resistance: Heavy-wall design withstands extreme formation pressures
  • Improved Fatigue Performance: Excellent resistance to cyclic loading and vibration stresses
  • Multiple Grade Options: Tailored material selection for specific well conditions
  • Seamless Construction: Homogeneous microstructure without weld defects
Quality Assurance
  • Full material traceability and certification
  • Ultrasonic testing for defect detection
  • Hydrostatic pressure testing

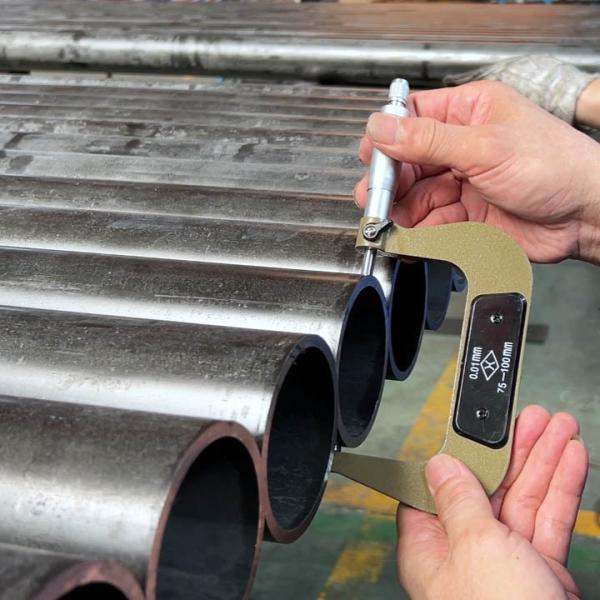

  • Dimensional and visual inspection
  • Mechanical property verification
  • Hardness testing throughout length
