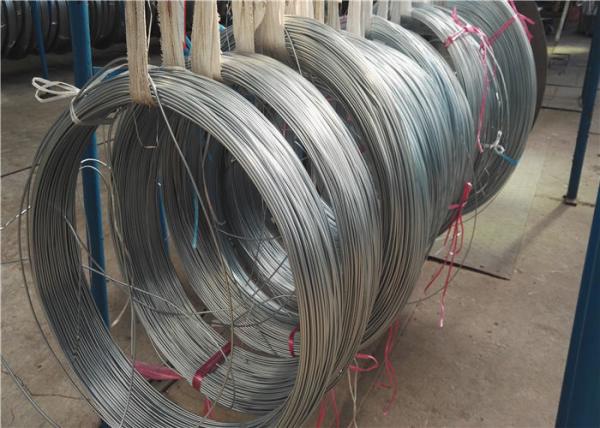

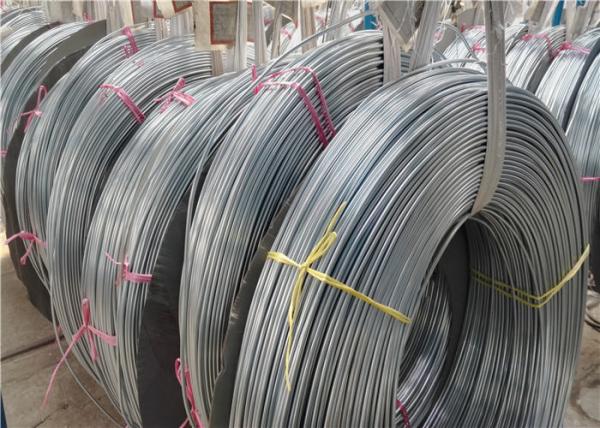

Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
Specifications
Brand Name :
Hongbao
Model Number :
Hongbao-BT01
Certification :
DNV,PED
Place of Origin :
Jiangsu,China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
1500MT per year
Delivery Time :
Within 50 days
Packaging Details :
Seaworthy Coil Bundle Packing.
Material: :
SPCC-KL，SPCD-SD，BHG1 ，Low Carbon Steel
Thickness: :
0.5-1.0mm
OD: :
4-10mm
Processing: :
Welded
Port :
Shanghai Port
Sample :
Free Sample
Description

OD4.6mm Zinc Coated Steel Bundy Tube For Refrigerator Freezer Galvanized Coil

Description:
Specification: to ASTM A 254
Material: Low carbon steel tube

We can supply a variety of steel pipes, such as condenser pipe, coated copper steel pipe, coated zinc steel pipe, plain pipe and seamless steel pipe.Details are as follows:
1. Condenser pipe: mainly used for refrigerator, condenser, evaporator, cooler and
freezer making
2. Materials can be altered according to customers' requirements
3. Outer diameter: 4.0mm - 10.00mm
4. Wall thickness: 0.5mm - 1.00mm

surface treatment: zinc coated
features:soft and easy to bend
elongation:more than 25%

Applications:
Zn coated steel tubes mainly used in refrigerator, freezer ,condenser, evaporator and compressor etc,it is made by material low carbon steel strip. It has been export to Europe, America,the Middle of East,Africa and South-East of Asia.

Specifications:

Thickness 0.5 - 1.0 mm
Section Shape Round
Outer Diameter 4 - 10 mm
Place of Origin Jiangsu, China (Mainland)
Secondary Or Not Non-secondary
Application refrigerator, freezer
Technique Cold Drawn
Certification ISO9001,ISO14001,SGS
Surface Treatment Galvanized
Alloy Or Not Non-alloy
tensile strength more than 290 Mpa
yield strength more than 180 Mpa
elongation more than 25%
standard GB/T 24187-2009
salt spray test 70~240h
Diametertolerance ±0.08
Wall thickness tolerance ±0.08

Galvanized pipe corrosion performance index

Product name Zinc coating thickness Salt spray test time
White galvanized tube ≥2μm ≥24 hours
≥4μm ≥72 hours
≥6μm ≥84 hours

Green

Galvanized tube

 ≥4μm ≥96hours
≥6μm ≥108hours
≥7μm ≥120 hours

Competitive Advantage:

we can produce zn coated steel tube according to customer's requirement,salt spray time from 24h to 120h,corrosion resistance is good .size is complete ,quality is best with competive price ,according to the national standard.

Outer Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel TubeOuter Diameter 4.6mm Steel Bundy Tube , Round Zinc Coated Mild Steel Tube
