0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes
0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes
Specifications
Brand Name :
Tisco
Model Number :
Weled Pipe
Certification :
ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1-18 Tons
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
5000 Ton/Tons per Month
Delivery Time :
15-21 days
Packaging Details :
Industry seaworthy wooden package or as customer's requirements
Product Name :
Stainless steel pipes
Standard :
JIS, AiSi, ASTM, GB, DIN, EN
Type :
Welded
Grade :
304/304L/316/316L
Welding Line Type :
ERW
Outer Diameter :
20mm
Tolerance :
±1%
Section Shape :
Round
Invoicing :
by actual weight
Payment Term :
30%T/T Advance + 70% Balance
Technique :
Cold Rolled Hot Rolled
Business Type :
Manufaturer
Description

0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes

Product Details

Stainless steel piping has very good corrosion resistance. This quality holds in the full range of potable waters, including soft waters. Stainless steel will corrode with high chloride levels but is in general, more corrosion-resistant than copper.316 stainless steel stands up to corrosion better than 304 and its other counterparts. It even stands up to corrosion from some very harsh chemicals. This allows it to be used in highly acidic or caustic environments that would eat other metals away.316Ti is essentially 316 with the addition of some titanium(Ti) to reduce the risk of losing corrosion resistance in the heat-affected zone. An alternative to prevent this, is to reduce the carbon(C) level, which results in the grade 316L.

Product Name
Rectangular Stainless Steel Tube
Standard
ASTM, JIS, DIN EN,GB
type
Seamless pipe/tube, welded pipe/tube
Outer Diameter
Outer Diameter
1) Round pipe: 8mm to 680 mm
2) Square pipe: 10x10mm to 300x300mm
3) Rectangular pipe: 10x20mm to 120x180mm
Certificate
CO ,FTA,MTC ,ISO, SGS ,CE or other third party inspection acceptable.
Shape
Round, Square, Rectangular, Slot, Oval, etc
Application
Decoration,construction,upholstery,industry instrument,medical equipment,ect
Material Grade

201 ( Ni 1.2%), 202 (Ni 3.5%~4.5%)
301(Ni 5%), 304 (Ni 8%, Cr 18%)
316 (Ni 10%, Cr 18%), 316L (Ni10%~14%)
430(Cr16%~18%)
Length
6m or as customer's request
Thickness
0.5mm-100mm
Surface
180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish,HL,8K,etc
Standard
JIS, AISI, ASTM, GB, DIN, EN
Advantage
Small MOQ + Superior quality + Competitive price + Fast delivery
Package
Water proof film coated, standard export package or as required.
Delivery Time
15-20 days after receive the deposit
Payment terms
T/T, L/C at sight, Western Union,etc.

Chemical composition

Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -

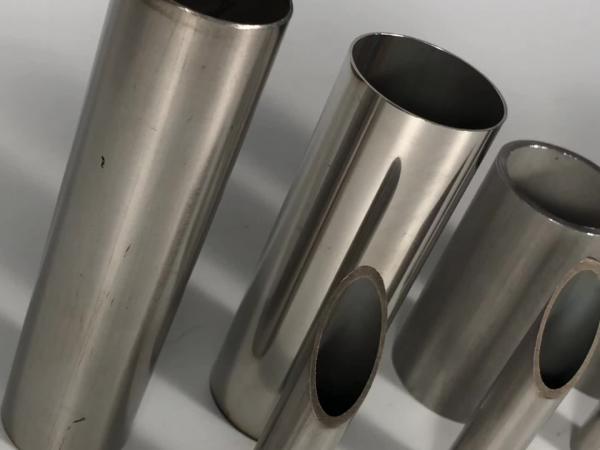

Photo Details

0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes

0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes

0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes

Package&Delivery

0.3-3mm Thickness Ss 201 304 316 Welded/Seamless Round/Square Stainless Steel Pipes

FAQ

Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
