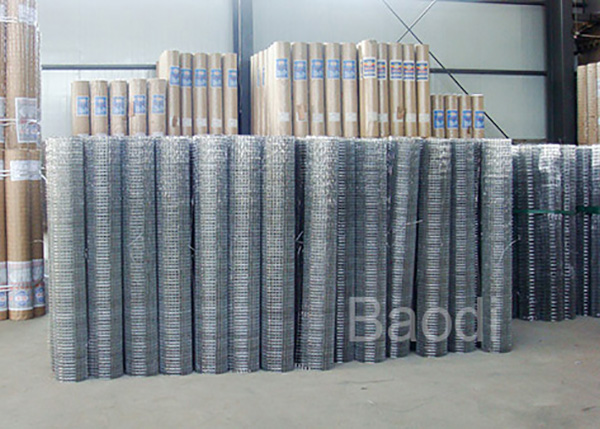

Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length
Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length
Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length
Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length
Specifications
Brand Name :
Baodi
Model Number :
BD-WWMBA
Place of Origin :
China
MOQ :
100 ROLLS
Price :
negotiated
Payment Terms :
T/T, Western Union
Supply Ability :
1000 Rolls per month
Delivery Time :
15-40 days
Packaging Details :
Plastic film or water-proof paper
Item :
Galvanised Welded Wire Mesh
Feature :
Solid construction
Wire Gauge :
14# to 29#
Aperture :
1/4" to 4"
Application :
industry, agriculture, building, transportation, mine,etc.
Grid shape :
Square grid
Description

Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length

The Welded Wire Mesh is a metal wire screen in roll.

It’s made of high quality iron wire or stainless steel wire by welding to form mesh structure and square pattern.

Wire Material Low carbon iron wire
Stainless steel wire
PVC coating / plastic-soaked iron wire
Surface Treatment Electro galvanized, hot dipped galvanized, PVC coated, or power coated.
Characteristics

Strong welded points and bright luster.

The mesh doesn't come loose even if cut in parts or being exerted force on parts.

Compared with general iron wire,the products are better in respects of anticorrosion and anti-rust.
Process The wire fabric is made up of iron wires arranged in parallel fashion in two orthogonal directions, with the points of contact being welded between the wires by electrical welding process (spot welding) by welding machine.
Features

Solid construction;

Easy handling;

Wires resist movement;

Flush edge trim available
Applications Used widely in industry, agriculture, building, transportation, mine, field, lawn. cultivation .etc. profession's guard decorate, machine protection etc.

The welded wire fabric could be custom made by our factory.

It could be packed in plastic film or waterproof paper.

Specification List

Mesh Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Fencing Mesh

Mesh Opening

Wire Diameter<BWG>

In inch

In metric unit(mm)

2" x 3"

50mm x 75mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mm x 756mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mm x 100mm

2.11mm,2.5mm

4" x 4"

100mm x 100mm

2.0mm,2.5mm

Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Packing Detail: Roll Welded Wire Fabric is packed in plastic film.

Electric Galvanised Welded Wire Mesh 3' Roll Height 100' Roll Length
