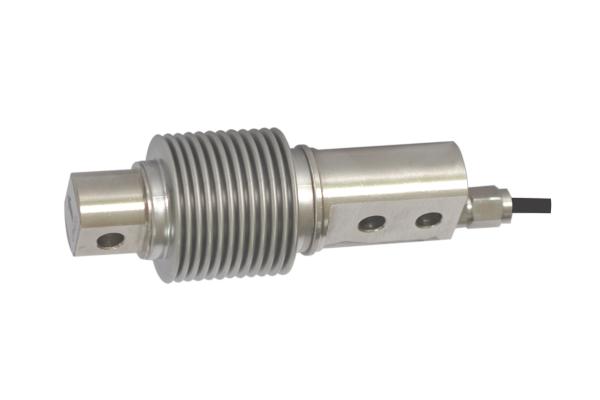

SAL500A 5-500kg bending beam load cell, alloy steel and stainless steel optional
SAL500A 5-500kg bending beam load cell, alloy steel and stainless steel optional
Specifications
Brand Name :
SATIS
Model Number :
SAL500A 5-500kg
Certification :
OIML
Place of Origin :
CHINA
MOQ :
50 units
Price :
USD 60- 100
Payment Terms :
T/T
Supply Ability :
3000 units per month
Delivery Time :
30 working days
Packaging Details :
netural carton
Description

Features

  • Capacity: 5-500kg
  • High accuracy
  • Alloy steel construction
  • OIML TC number: TC8154 (for 50-250kg only)
  • Single point with bellow, suitable for crane scales, mechanical conversion scales, hopper scales and other electronic weighing device

Specification

Maximum capacity (Emax) kg 5, 10, 20, 30, 40 50 , 75, 100, 150, 200, 250 300, 500
Rated output (Cn) mV/V 2,0 ± 0,002
Accuracy ±%FS 0.02 OIML C3 0.02
Max. number of intervals (nLC) - 3000
Creep (30 minutes) ±%FS 0.02
Zero balance ±%FS 1
Temperature effect on zero balance (TCO) ±%FS/10°C 0.02
Temperature effect on sensitivity (TC Span) ±%FS/10°C 0.02
Safe overload %FS 120
Ultimate overload %FS 150
Nominal temperature range °C -10 ... + 40
Operating temperature range °C - 30 ... + 70
Input impedance Ω 400 ± 10
Output impedance Ω 352 ± 3
Insulation impedance MΩ ≥ 5000
Recommended excitation V DC/AC 10 -12
Excitation maximum V DC/AC 15
Material - Alloy steel
Protection class - IP68
Cable -

Length: 3m

or customize special length to order;

Diameter: Φ 5mm

Wiring

The load cell is provided with a shielded 4 or 6 conductor cable. The shield will be connected or not connected to the load cell according to customer’s preference.

SAL500A 5-500kg bending beam load cell, alloy steel and stainless steel optional

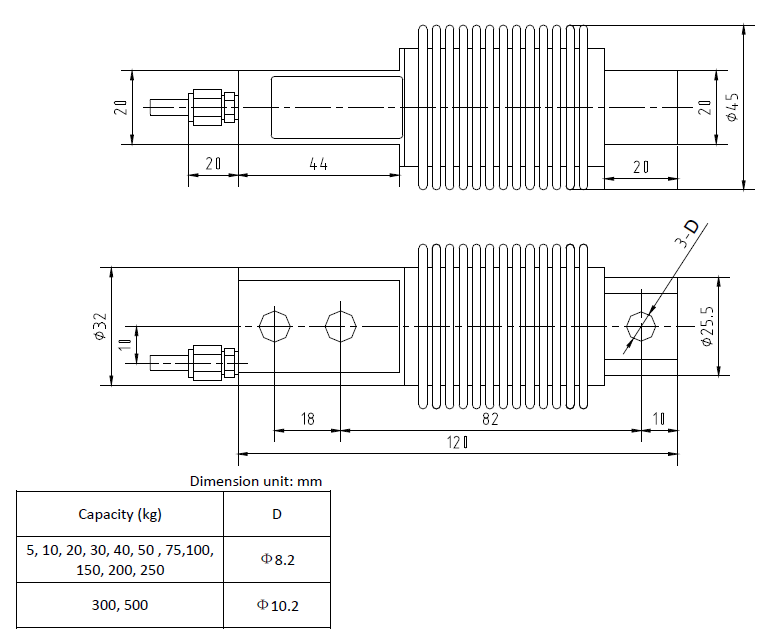

Dimension

SAL500A 5-500kg bending beam load cell, alloy steel and stainless steel optional

Accessories

No accessory is provided for standard shipment
