Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision
Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision
Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision
Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision
Specifications
Brand Name :
Supmeter
Model Number :
BST106-M60S[L]
Certification :
CE
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
8-15 working days
Packaging Details :
Carton Box
Power :
DC24V
Weight Display Range :
-9,999~+99,999
Scale Capacity :
Setting Range 1~99,999
Scale Division :
Optional 1, 2, 5, 10, 20, 50, 100, 200, 500
Display Resolution :
1/50,000
Decimal Point :
Optional 0, 0.0, 0.00, 0.000, 0.0000
Description

Super High Accuracy Weighing Module For Transmitting With AO (0~20mA)

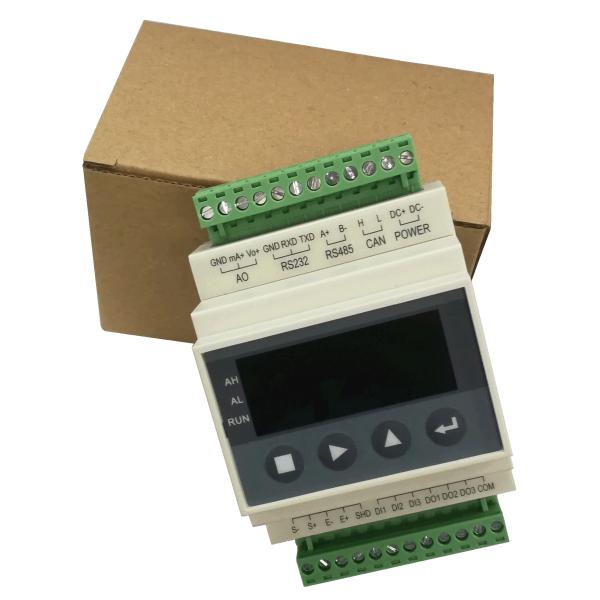

BST106-M60S[L] is a Guide Rail Type weighing module. It is with 24-bit High-precision and high-speed ∑-△A/D conversion module with 1/1,000,000 internal resolution and max. sampling frequency 1600Hz.

Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision

BST106-M60S[L] is guide rail type installation

Outline Size W×H×D[mm]:
71.5×115.6×57.9
Guide Rail Groove Size W×D[mm]:
35×1.6
Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision

Terminals:

1. 3 Optional&definable normally open switch inputs [DI];

2. 3 Optional&definable normally open transistor switch outputs [DO]: DC24V, 250mA;
3. 1 Optional&definable current signal output [AO: 0~20mA], Non-linearity: 0.05%FS;
4. 1 Optional&definable voltage signal output [VO: 0~10V], Non-linearity: 0.05%FS;
5. COM1: RS232;
6. COM2: Optional RS485;
7. COM3: Optional CANBUS
Delivery:
Guide Rail Type Digital Weighing Controller Module 24 Bit High Precision
