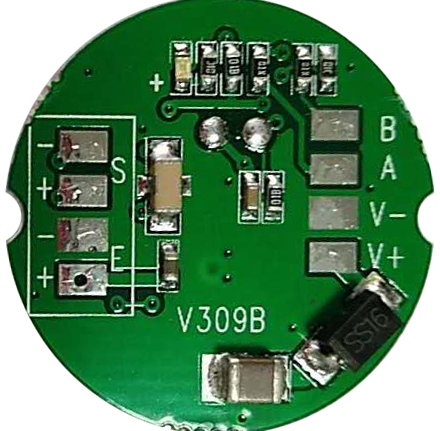

Force Digital Weight Indicator Transmiting PCB Module With High - Speed
Force Digital Weight Indicator Transmiting PCB Module With High - Speed
Specifications
Brand Name :
SUPMETER
Model Number :
AD485-B
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
7-10 working days
Communication Protocol :
Host-slave Modbus RTU
Optional Baud Rate :
9600, 19200[default], 115200bps
Power Supply :
DC5~15V, Max 0.25W
Description

1. Applications:

1) Transform the analog signal from loadcell to digital signal.
2) Encapsulat it into the loadcell for making digital loadcell.
3) For remote host-slave weighing & force-measuring system.

2. Technical Specifications:

CPU & System 32-bit ARM CPU with 48MHz clock & high arithmetic speed
Excitation Voltage / Max. Current DC5V/20mA
Signal Input Range ±19.5mV
Output Sensitivity of Loadcell 1.0~3.5mV/V
Optional Sampling Frequency 1280Hz, 640Hz, 40Hz [default], 10Hz
Communication RS485
Outline Size 25 × 6 mm [Diameter×Thickness]
Weight Approx. 2g
