LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing
Specifications
Brand Name :
Supmeter
Model Number :
BST100-D12
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, T/T
Supply Ability :
10000pcs/month
Delivery Time :
3workdays
Packaging Details :
one pc per carton
Power supply :
AC220V
Protection Level :
IP65
Accuracy Grade :
0.5
Max. Connection number of Loadcell :
8 Loadcells (350Ω)
Communication Port :
COM1:Optional RS232/RS485/RS422/ Profibu-DP/Ethernet; COM2:RS485
Description

Main Applications
Belt weigher with weight Totalizing.
Suitable for corrosive gas environment.

Technical Specification

  • Power Supply: AC220V±15%, 50/60Hz, Max. 10W.
  • Loadcell Excitation Voltage/Current: DC10V/250mA.
  • 8 Loadcells[350Ω] connectable.
  • Weighing Signal Input Range: 0~25mV.
  • Speed Sensor Excitation Voltage/Current: DC12V/100mA.
  • Speed Signal Input Range: 0.5~3000Hz.
  • COM1: Optional RS232/RS485/RS422/Profibus-DP/Ethernet.
  • COM2: RS232.
  • Connect Host IPC, Remote Display, Printer&Wireless Module.
  • Optional 4~20mA Analog Output [AO] Module by COM1.
  • Outline Size [W×H×D]: 235.5 × 227.5 × 119.5 mm.
  • Operating Temperature: -25℃～+45℃.
  • Protection Level: IP65.
  • Accuracy Grade: 0.5

Model Panel-mounting / Wall-mounting Keypad Operation
If there is not any keypad operation in one minute and it’s not in the processes of ‘F2 Calibration’ & ‘F6 Factory Adj.’, the Indicator will return to ‘Main Display Interface’ automatically.

Menu Operation
Key Name Description
【MENU】 Enter Main Menu / Exit.
【ENT】

Enter/Save.

Return to the initial display interface.
【▲】

Cursor shifts up or left.

Display the previous interface or option.
【▼】

Cursor shifts down or right.

Display the next interface or option.
【0~9】 Digit Input.
Quick Operation
【LOCK】

Key-locking.

Key-unlocking.
【F1】 Static Span Calibration with Hanging Weight.
【ZERO】 Zero Calibration.
【CAL1】 Dynamic Span Calibration.
【CAL2】 Static Span Calibration with Chain Weight.
【SEG】 Segmenting Span Correction.
【SPD】 Speed Calibration.
【LEN】 Belt Length Calibration.
【TIME】 Date/Time Setting.
【CLS】 Clear Screen.
【REC】 Query and Print Weight Record.
【PRINT】 Print.

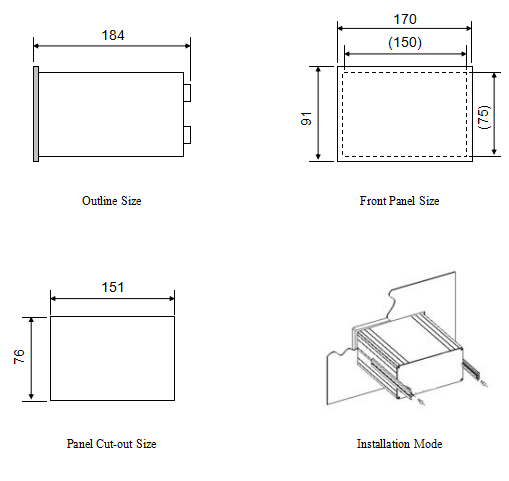

Installation

LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing

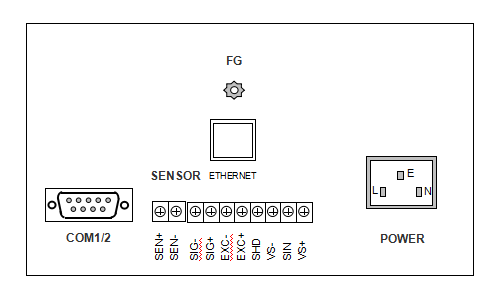

Model Panel-mounting Terminal

LCD Display Weighing Instrument Indicator For Belt Weigher With Weight Totalizing

FAQ:

1. What detailed information do I need to provide if I want to place an order?

We need to know the following information: Capacity, Usage and other related parameters you need.

2. Do you have any discount?

Yes, if you buy large QTY, please send us a email, we will give you a big discount.

3. What terms of payment are available?

We accept T/T, L/C, Trade assurance, Secure payment, Western Union, Paypal, , etc.

4.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

5. How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments before shipping to our clients.
