Specifications
Brand Name :
Bitvisus
Model Number :
VWC-MD1212Ma
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
1572$
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
5.7KG, 54cm*32.5cm*22.5cm
Product name :
VWC-MD1212Ma
Product type :
12-in 12-out 4K60 Seamless Matrix Splicer
Resolution :
3840x2160@60Hz
Feature :
12 input source seamless switching
Function :
Splicing+seamless matrix switching
Input :
12xHDMI2.0
Output :
12xHDMI2.0
Warranty :
3 Years
Input Interface :
600MHz
Output Interface :
600MHz
Description

Product Overview

12-in 12-out 4K60 Seamless Matrix Splicer

⇒Supports 12 HDMI inputs and 12 HDMI outputs;

⇒Device input and output support 3 boards, each board 4 HDMI port;

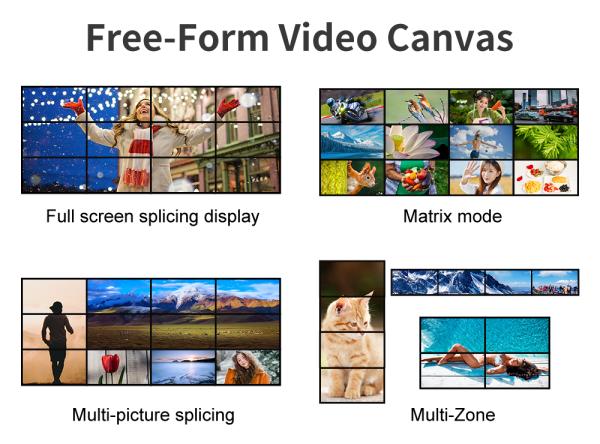

⇒Single device,12 in 12 out, can be combined 12 rectangular splicing mode 12 input source seamless switching, horizontal screen/vertical screen/field shape,and support large-scale parallel use;
⇒The maximum value of the input is 3840x2160P60, backward compatible. The maximum output output is 4096x2160P60;
⇒Supports custom resolution of an independent graphics card and EDID management. You can create and save custom EDID using the WEB UI;
⇒Splicing does not require compression of the input source, and the picture is clear;
⇒Support infrared remote control, serial port RS232, network port WEB interface, key board control;
⇒Uses HD video process in chip;
⇒The chassis comes with an LCD display. You can switch the source, set the resolution, and switch the dynamic and static IP addresses by pressing the button.

⇒Welcome to contact us to consult about the products required by your project!

Product Specifications
Product Name BIT-VWC-MD1212Ma
Input interface type 12xHDMI2.0
Input interface maximum video pixel frequency 600MHz
Input Maximum resolution 3840x2160P60
Input depth 8bit
Color format RGB444, YUV444, YUV422, YUV420
Output interface type 12xHDMI2.0
Output interface maximum video pixel frequency 600MHz
Output resolution 4096x2160P60
Control mode RS232 serial port, Web, keypad
Audio HDMI output audio with out,separate
Power source 220V
Power dissipation 72W(3 input cards,3 output cards)
Storage/working temperature - 10 to 50 º C/0 to 50 º C
Product size Length×width×height:483mm×200mm×130mm
Package size Length×width×height:540mm×325mm×225mm
Product weigh 5KG
Packing weight 5.7KG
Accessories list 1×220V power cable, 13×Phoenix terminal(Selection of 25×Phoenix Terminals), 1-meter Ethernet Cable,USB-AtoType-C(Optional)
After-saleswarranty 3 yearws warranty
