Specifications
Brand Name :
Bitvisus
Model Number :
BIT-Ex-Fib-IP-4K-KVM
Certification :
FCC/CE/RoHS
Place of Origin :
Guangdong China
MOQ :
1
Price :
USD155
Payment Terms :
T/T,PayPal
Supply Ability :
1unit 3 days,10units 7 days
Delivery Time :
7 Days
Packaging Details :
37mm*24mm*11mm,1.5KG
Product Name :
BIT-Ex-Fib-IP-4K-KVM
Supported Resolution :
4K30Hz is backward compatible with standard resolutions
Pixel Bandwidth :
297MHz
Color Space :
Support RGB444; YUV color space
EDID Learning :
Support
KVM :
USB 2.0,keyboard and mouse,U disk,radar,infrared touch, printer,etc.
RS232 :
Two-way RS232 transparent transmission
CEC :
Support
3D :
Support
Warranty :
1 Year
Description

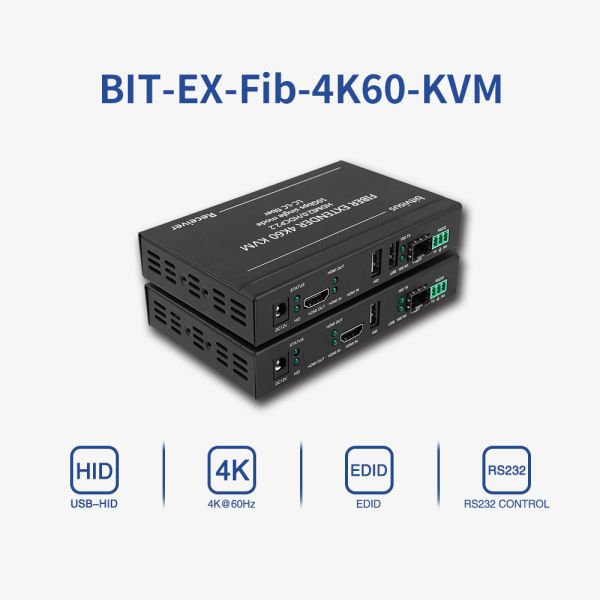

Bitvisus Zero-Delay 30KM 4K KVM Fiber IP Extender
Professional 1.4 USB 2.0 Multi-Device RS232 Transparent Transmission Metal Solution
Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission
Product Overview
BIT-Ex-Fib-IP-4K-KVM is a zero-delay and uncompressed long-distance transmitter featuring industrial-grade design with robust internal protection and easy installation.
Key Features
  • Advanced video processing chip with powerful functions, high picture restoration, long transmission distance, and low power consumption
  • Fiber optic transmission up to 30 kilometers with HDMI interface input/output
  • Zero-delay transmission with no compression and no artifacts
  • Customizable conventional video resolutions with maximum supported resolution of 3840x2160@30Hz

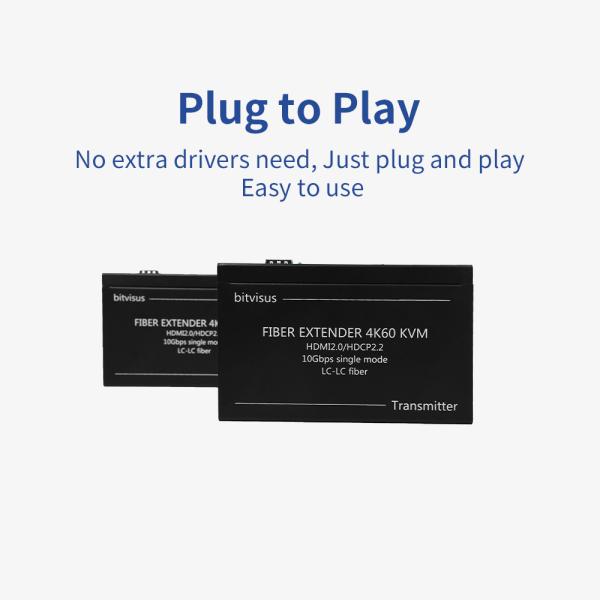

  • Pure hardware design architecture - plug and play with no software drivers required
  • Two-way RS232 communication function
  • USB-KVM function with dual USB interfaces for mouse and keyboard connectivity
  • EDID learning capability for easy display compatibility
Technical Specifications
Input Transmitter (TX) HDMI1.4 (≤5m), IR, RS232 signal
Input Receiver (RX) LC-LC single-mode single-core fiber, 10KM
Output Transmitter (TX) LC-LC single-mode single-core fiber, 10KM
Output Receiver (RX) HDMI1.4 (≤5m), IR, RS232 signal
Output Audio HDMI audio out
Supported Resolution 4K30Hz with backward compatibility for standard resolutions
Color Space Support RGB444; YUV color space
Transmission Bandwidth 1Gbps
Support Features EDID, CEC, 3D, Remote wake up, OEM
KVM Compatibility USB 2.0, keyboard and mouse, U disk, radar, infrared touch, printer, etc.
RS232 Two-way RS232 transparent transmission
Storage/Operating Temperature -10～50ºC / -25～55ºC
Application HDMI, KVM, RS232 signal extension
Package Contents
Equipment × 2, Power supply × 2, Double-ended USB cable × 1, Single-mode single-core optical module × 2, Certificate × 1, Warranty card × 1
Warranty
1 year warranty included
Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission Bitvisus Zero-Delay 30KM 4K HDMI Fiber Extender with KVM and RS232 Transparent Transmission
Why Choose Bitvisus?
  • Own warehouse ensuring shipping within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in the industry with proven expertise
How to Order
  • Contact us via email, TM, WhatsApp, or Skype with your order requirements
  • We will provide a proforma invoice based on your request
  • After payment confirmation, goods will be delivered promptly
Warranty & After-Sale Service
  • 12 months warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect models
Shipment & Payment
Payment Methods: T/T, Visa, PayPal, Western Union, L/C
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
