Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MSE-4K60-104Pro
Certification :
FCC/CE/RoHS/ANSI C63
Place of Origin :
Guangdong China
MOQ :
1
Price :
1unit USD309,>10units USD268
Payment Terms :
T/T,PayPal
Supply Ability :
1unit 3 days,10units 7 days
Delivery Time :
7 Days
Packaging Details :
37mm*24mm*11mm
Input Max. Pixel FPS :
600MHz
Output Max. Pixel FPS :
300MHz
Input type :
HDMI or DP (choose one, HDMI priority)HDCP2.2
Output type :
4 HDMI
Product factory default resolution :
3840x2160@60Hz
Output distance :
15 meters
Power supply :
12V@2A AC-DC
3 screens support typical resolution :
3x1920x1200@60Hz,3x1920x1080@60Hz,3x1280x800@60Hz,3x1024x768@60Hz
4 screens support typical resolution :
4x1920x1200@60Hz,4x1920x1080@60Hz,4x1280x800@60Hz,4x1024x768@60Hz
Warranty :
1 year
Description

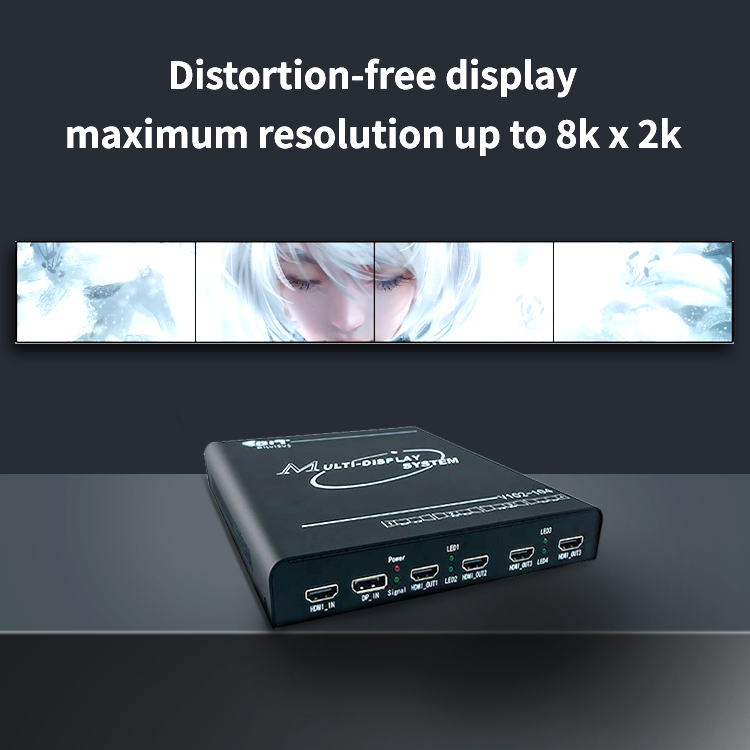

4K60 1 HDMI/DP Input 4 HDMI Output Multi-Screen Expander

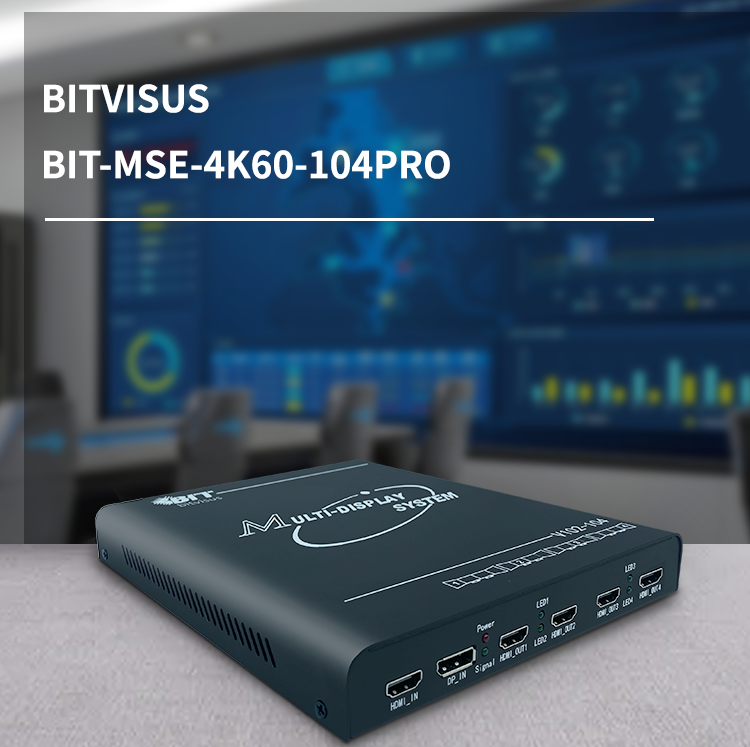

BIT-MSE-4K60-104PRO industrial-grade 4K multi-screen expander, HDMI/DP input + 4 HDMI outputs, supports multi-ratio splicing and 90° rotation.
Equipped with 45nm FPGA for full hardware delay-free processing, 16KV anti-static & 6-layer PCB for super stability.
Low power consumption, no external heat dissipation, parallel operation for large screen needs, and USB EDID modification supported.

4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control

Features

1.This is an industrial-grade high-performance product specially developed for the needs of multi-desktop operation and multi-channel projection fusion. It uses HDMI/DP input interface and HDMI output.

2.Super high resolution, the output supports a maximum resolution of 4x1920x1200@60Hz/1920x1200x4@60Hz, which is backward compatible with low resolution.

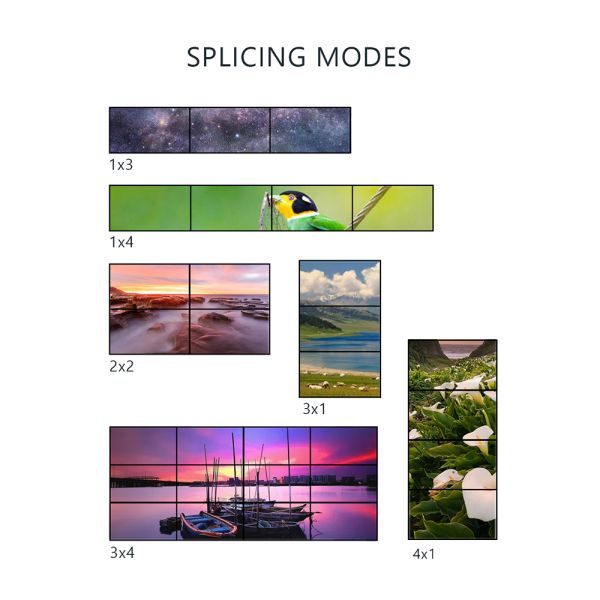

3.Support 1xN, Nx1, MxN and 90° rotation ratio stitching, without stretching, deformation, and wider field of vision.

4.Support to modify the EDID through the USB interface.

5.Adopt high-end programmable FPGA chip with 45nm technology, full hardware real-time processing architecture, ultra fast processing speed without delay.

6.Industrial-grade design, thickened 6-layer PCB board, 16KV super strong anti-static ability, super product stability.

7.Support parallel operation to meet the real-time display requirements of large screen.
8.Low power consumption, energy saving and environmental protection design. Conductive heat dissipation is used inside without any external heat dissipation measures.

4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control
4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control

Technical Specifications
Product name
BIT-MSE-4K60-104Pro
Input Max. Pixel FPS 600MHz
Output Max. Pixel FPS

300MHz
Input type
HDMI or DP (HDMI priority), HDCP2.2
Output type
4 HDMI
2x2 Max supported resolution
3840x2400@60Hz
3x1/1x3 Max supported resolution
1920x3600@60Hz/5760x1200@60Hz
4x1/1x4 Max supported resolution
1920x4800@60Hz/7680x1200@60Hz
Output distance
15 meters
Warranty
One year

4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control

FAQs

Why Choose Bitvisus?
• Own warehouse ensuring shipment within 48 hours after payment (weekends and holidays excluded)
• OEM/ODM services available for custom requirements
• Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems
• Proven R&D experience and product quality assurance

Shipping & Payment
Payment Methods: T/T, Visa, PayPal, Western Union, L/C available.
Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
