Specifications
Brand Name :
Bitvisus
Model Number :
BIT-MSE-8K60-204HD
Certification :
CE、FCC、GB
Place of Origin :
Guangdong China
MOQ :
1
Price :
500
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
2KG, 36cm*21.5cm*7cm
Product name :
BIT-MSE-8K60-204HD
Product type :
2-in 4-out 8K60 Ultra high resolution Multi-Screen Expander
Resolution :
8192x2160P60
Feature :
Ultra clear processor
Function :
Pixel per pixel
Input :
2xHDMI2.1/2xDP 1.4
Output :
4XHDMI 2.0
Input Interface :
1200MHz
Output Interface :
600MHz
Warranty :
3 Years
Description

Product Overview

Professional 8K60 Multi-Screen Processor for Industrial-Grade Performance The BIT-MSE-8K60-204HD is an industrial-grade video wall processor engineered by Bitvisus to meet demanding 4K60 multi-desktop operations and multi-channel display needs. Supporting 2× 8K inputs (HDMI/DP selectable) and 4× 4K60 HDMI outputs, it delivers ultra-clear, fluid visuals across ultra-high-definition large screens or standard monitors. Ideal for mission-critical applications including control rooms, exhibition halls, virtual reality setups, and multi-screen LCD/LED displays.

Product Characteristics
✅ Ultra-High Resolution & Flexibility
Dual 8K Inputs: 2× independent 8K ports (HDMI or DP selectable), supporting up to 7680×2160@60Hz per input. Quad 4K Outputs: 4× HDMI 2.0 outputs @3840×2160@60Hz, compatible with all mainstream displays.
✅ Seamless Multi-Screen Control

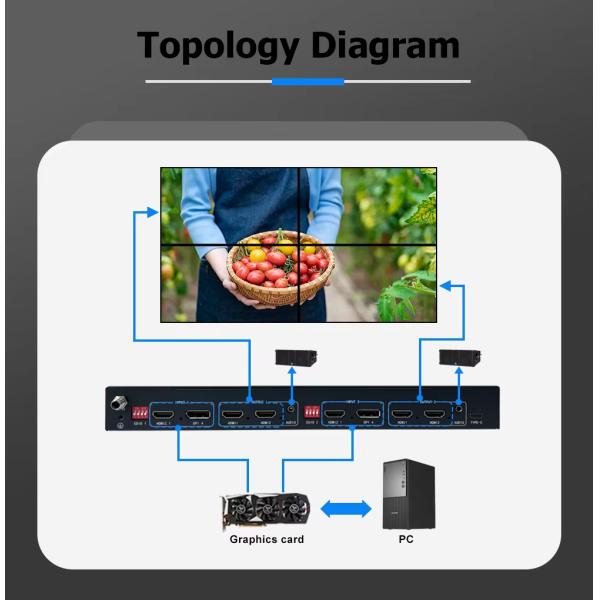

Zero-Latency Splicing: Supports 1×2, 2×2, or 1×4 layouts for pixel-perfect 4K60 video walls without stretching or distortion. Real-Time Processing: All-hardware architecture ensures ultra-fast operation with no lag (no software dependency).
✅ Industrial-Grade Reliability
16KV Super Anti-Static Protection: Withstands harsh electrical environments. Advanced Thermal Design: 18W thermal-conductive material + internal heat dissipation + overheating protection for 24/7 stable operation. Anti-Interference Shielding: Ensures signal integrity in complex setups.
✅ Efficiency & Compatibility
Low-Power Design: Energy-efficient (18W TDP) and eco-friendly. Bitvisus OpenWindow Software: Enables 8K60 multi-window display with drag-and-control flexibility. Parallel Operation Mode: Guarantees uninterrupted large-screen display during maintenance.
✅Applications
Command & Control Centers Multi-Channel 4K60 Projection Systems Exhibition Halls & Digital Signage Virtual Reality (VR) Environments LCD/LED Video Walls

Product Specifications
Product Name BIT-MSE-8K60-204HD
Input interface type 2XHDMI 2.1,2xDP 1.4(Copper wire≤3M)
HDCP 2.2
Input interface maximum video pixel frequency 1200MH
Maximum resolution 8192x2160P60
Color format RGB444,YUV444,YUV422
Output interface type 4XHDMI 2.0(Copper wire≤10M)
Output interface maximum video pixel frequency 600MHz

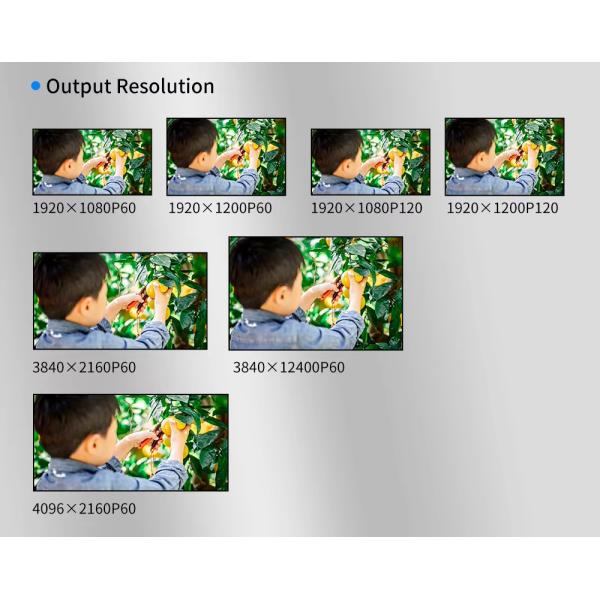

Output resolution 4096x2160P60,3840x2160P60,3840x2400P60,2560x1600P60,2560x14400P60,1920x1080P120,1920x1200P120,1920x1080P60,1920x1200P60
Color depth 8bit
Audio 3.5MM audio separation, HDMI audio follow out
Power supply DC12V/5A
Power comsumption 20W
Storage/working temperature - 10 to 50 º C/0 to 50 º C

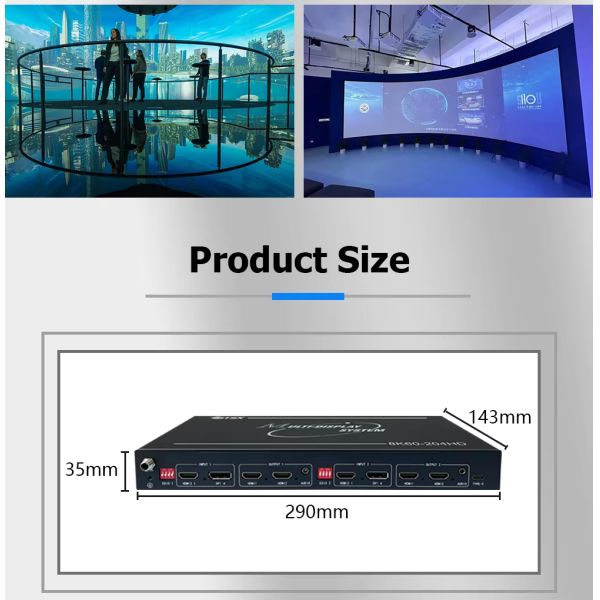

Product size LXWXH:290mmx143mmx35mm
Package size LXWXH:360mmX215mmX70mm
Product weigh 1.2KG
Packing weight 1.7KG

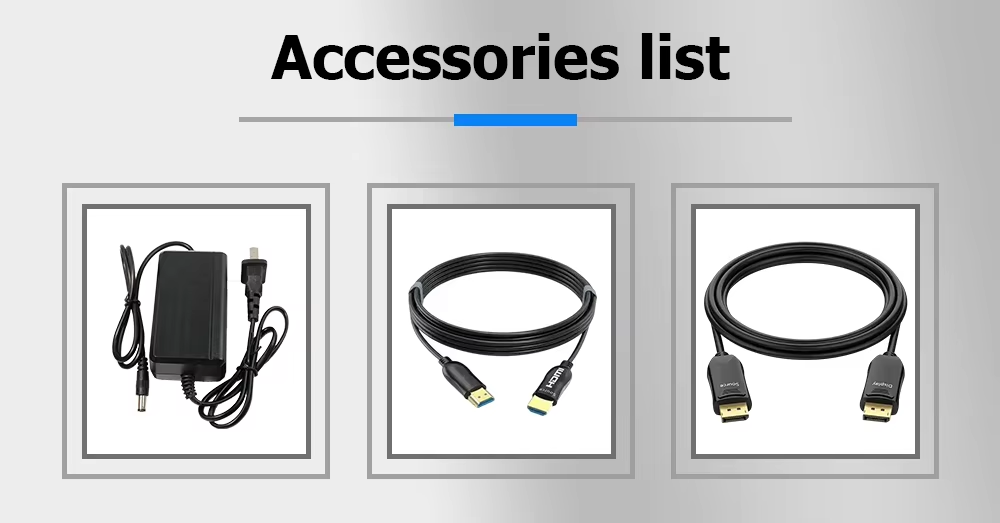

Accessories list 1 X 12V5A power adapter, 2 xHDMI 2.1 cable or DP1.4 cable
After-saleswarranty After-sales service 3-year warranty


Features at a Glance

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander


Company Profile

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander

8K60 Large Screen Parallel Use Multi-Monitor Splitter 2-in 4-out Multi-Screen Viewer 2x2 Pixel-to-pixel Multi-Screen Expander


FAQ


Why Choose Bitvisus ?

1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We have various pruduct that may suit for you, such as Video Wall controller, Multiscreen Expander, Multiviewer, Embeded Projector Fusion and so on, which proves that our company has sufficient R&D experience and product quality assurrance.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
How to order?
1. Please send us an email or chat with us via TM, WHATS UP, SKYPE and let us know your requirements for order details.
2. We will provide a proforma invoice to you based on your order requirements.
3. Please check the PI, if everything is OK, we will deliver the goods to you as soon as possible after receiving your payment.
