Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :

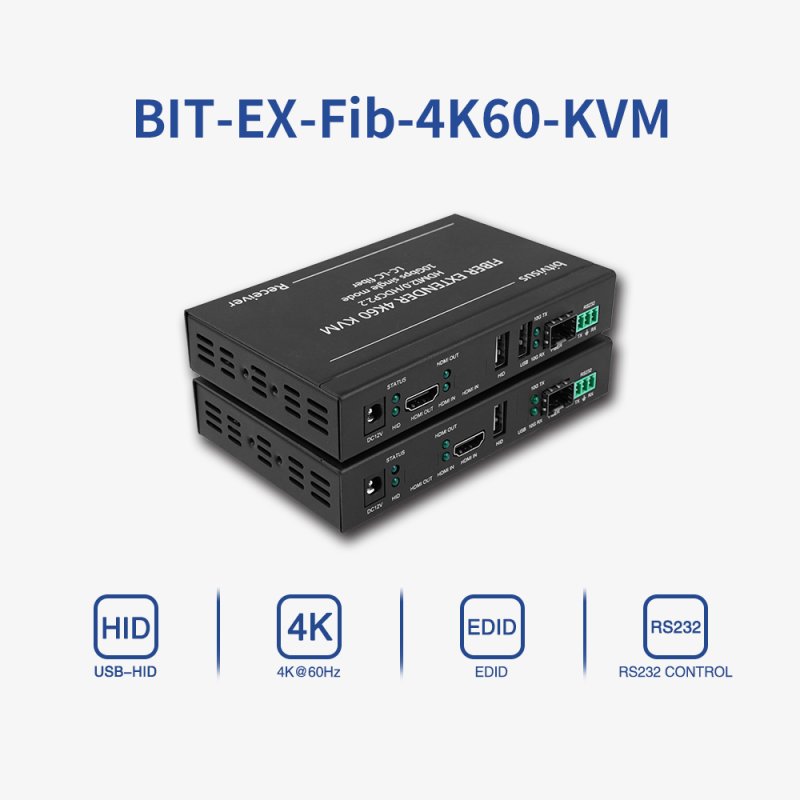

BIT-Ex-Fib-4K60-KVM
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
105*76*27mm
Material :
Metal
Color space :
RGB444 ; YUV
Pixel bandwidth :
594 MHz
Transmission bandwidth :
10.2G bps
KVM support :
USB 1.0, keyboard and mouse
RS232 support :
Two-way transparent transmission
Interface Protocol :
HDMI 2.0, HDCP 2.2, DVI1.0, VGA
Power supply :
DC 12V 2A
Storage temperature :
-10~50°C
Working temperature :
-25~55°C
Max resolution :
3840x2160@60Hz
Max distance :
30 km
Power consumption :
≤7W

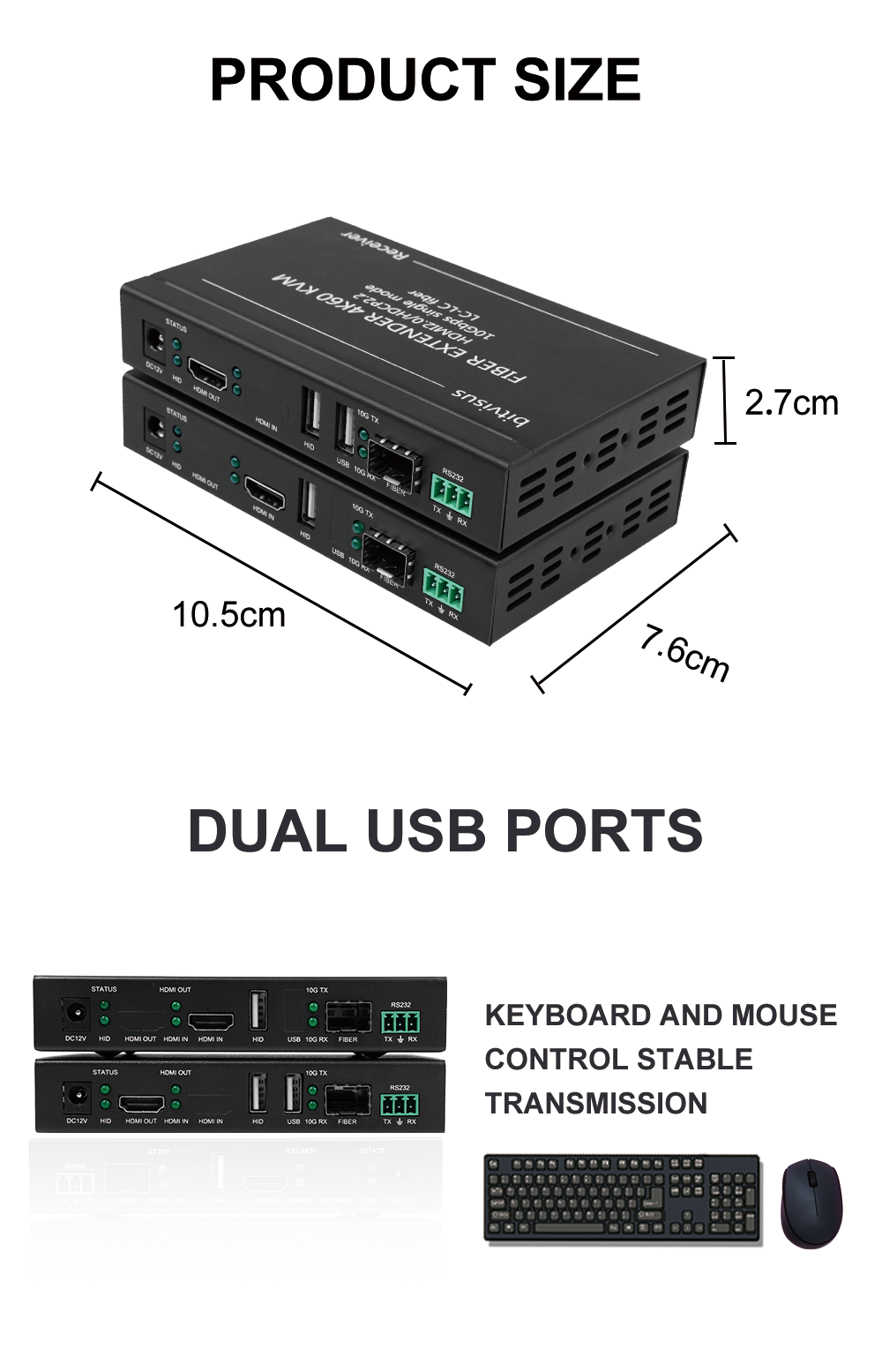

Dimensions :
105*76*27mm
Weight :
0.9 KG
Description
Product Description
Product Features
☞Support 4k ultra-high-definition picture, choose the industry's most advanced video processing chip, transmission distance far
power consumption.
☞The farthest transmission distance can support up to 30 km, HDMI interface input and output.
☞The highest supported resolution reaches 3840x2160@60Hz, backward compatible with low resolution.
☞Support USB-HID function, dual USB interface to connect mouse and keyboard.

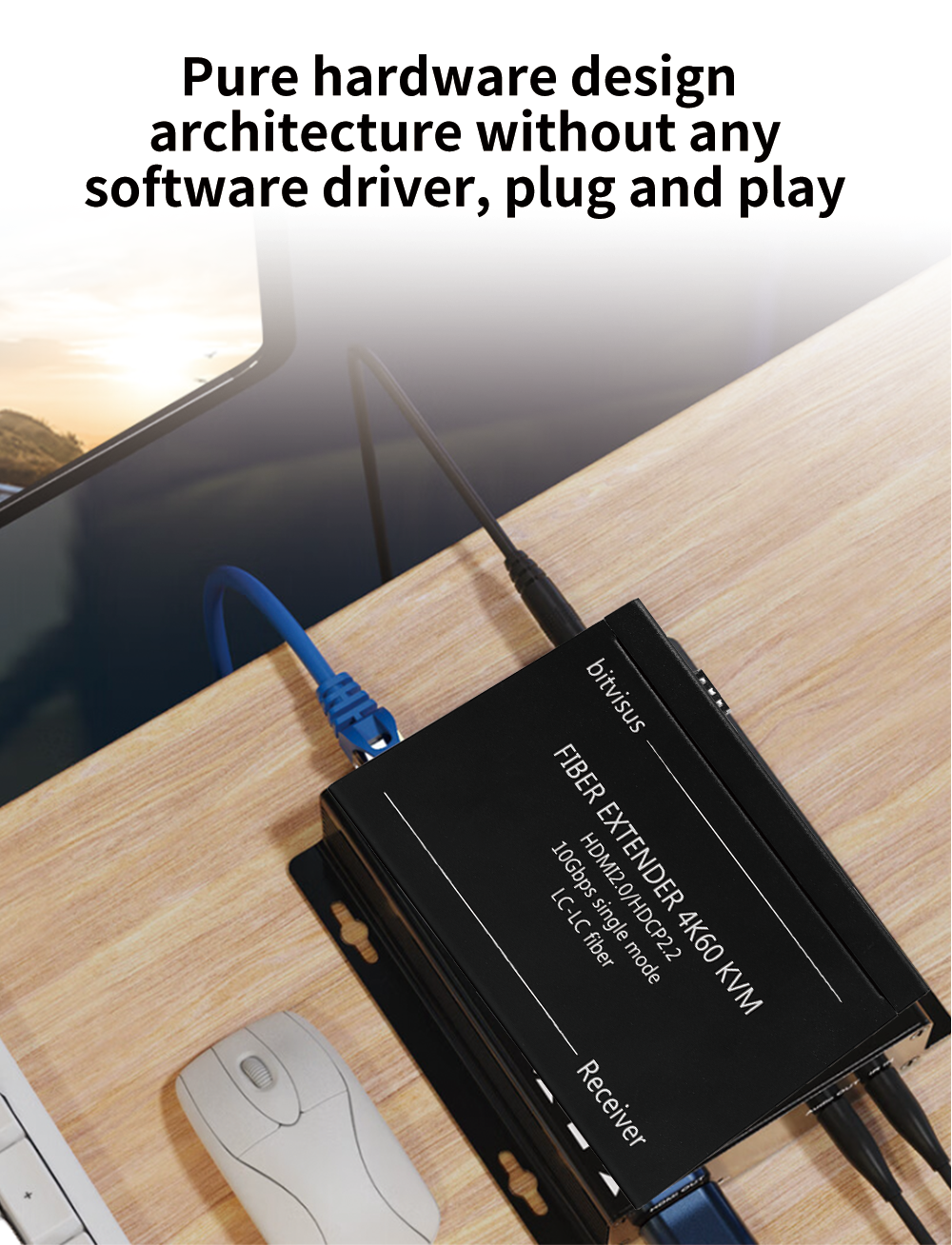

☞Zero delay, uncompressed long-distance transmission, easy to install, simple operation, plug and play.

☞Contact customers
Welcome to consult the project function requirements!
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission

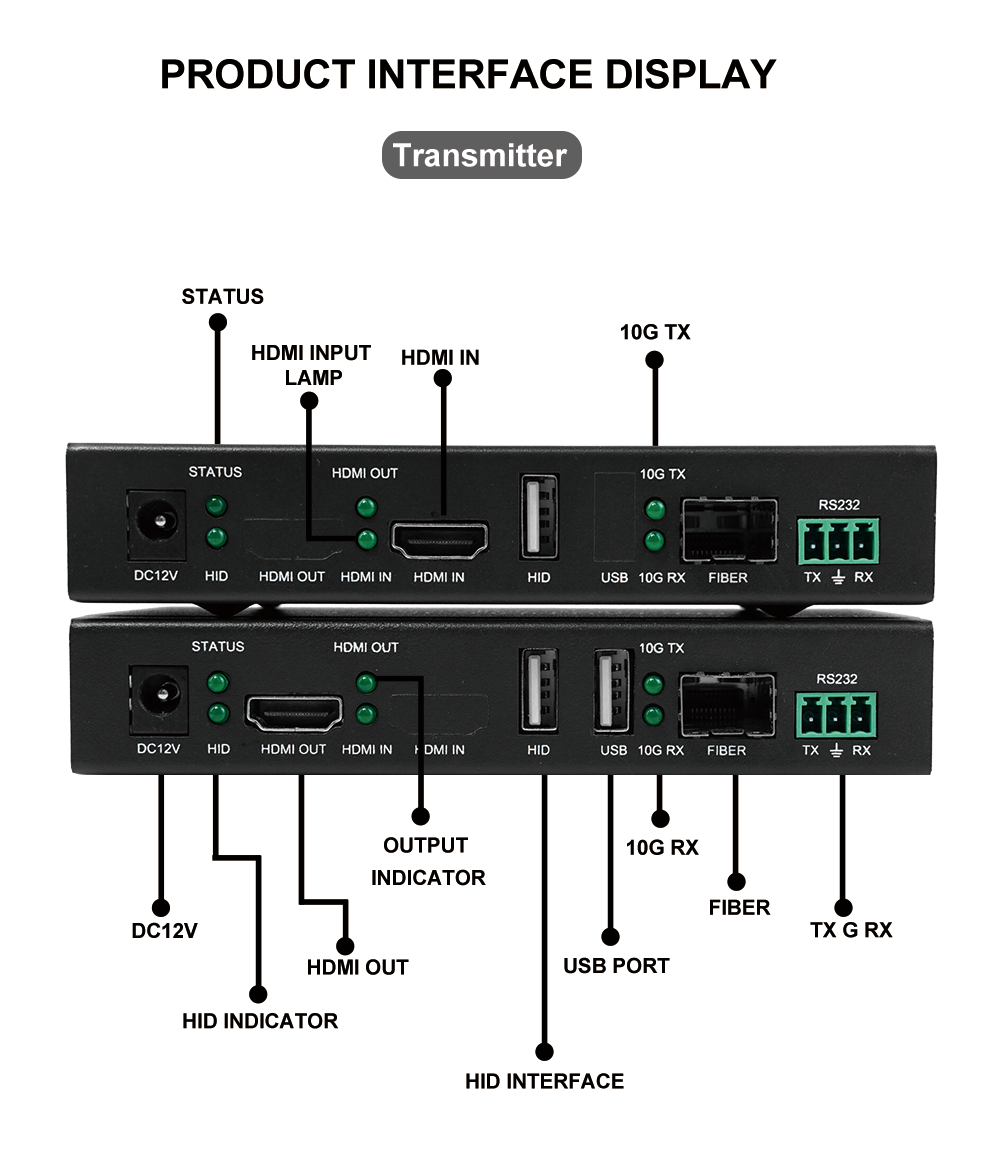

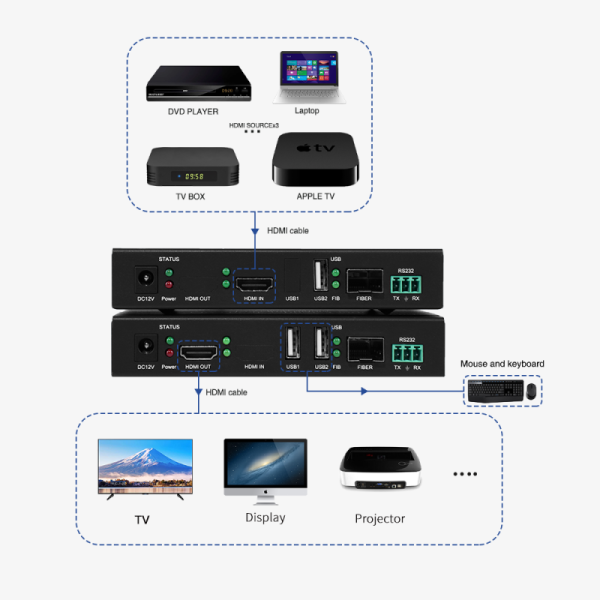

Specification
Enter
Transmitter ( TX)
HDMI 2.0 (≤ 5 m) , IR, RS232 signal
Receiver ( RX)
LC-LC single- mode single-core/dual -core optical fiber, 10KM
LC-LC multimode fiber, 300 M


Output
Transmitter ( TX)
LC-LC single mode fiber /dual core fiber, 10KM
LC-LC multimode fiber, 300 M
Receiver ( RX)
HDMI 2.0 (≤ 5 m) , IR, RS232 signal
Audio
HDMI audio out


Other
Support resolution
4k60Hz backward compatible ( horizontal resolution ≤ 5760 , vertical resolution ≤ 3600 )
Color space
Support RGB444 ; YUV color space
Pixel bandwidth
594 MHz
Transmission bandwidth
10.2G bps
Support
CEC,3D,Remote wake up,EDID,OEM
KVM
USB 1.0 , keyboard and mouse
RS232
Two-way RS232 transparent transmission
Power supply
DC 12V 2A
Power consumption
≤7W


Specification
Size
105*76*27mm
Weight
About 0. 9 KG
Ppacking list
Device *2, power supply * 2 , double-headed USB cable *1,
Single-mode dual-core optical module ( standard configuration) *2 , certificate of conformity *1, warranty card *1
After-sales service
1 year warranty
