Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ex-IP-4K-KVM
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
105*76*27mm
Material :
Metal
Input Transmitter :
HDMI 1.4 (≤ 5 m), IR, RS232 signal
Output Transmitter :
CAT5E / CAT6, 100m
Supported resolution :
4K30Hz
Color Space :
RGB444, YUV
Pixel bandwidth :
297MHz
Transmission bandwidth :
10.2Gbps
Transmission distance :
100m
Interface Protocol :
HDMI1.4, HDCP 1.4, DVI1.0, VGA
Power supply :
DC 12V 2A
Power consumption :
6W
Operating temperature :
-25～55ºC

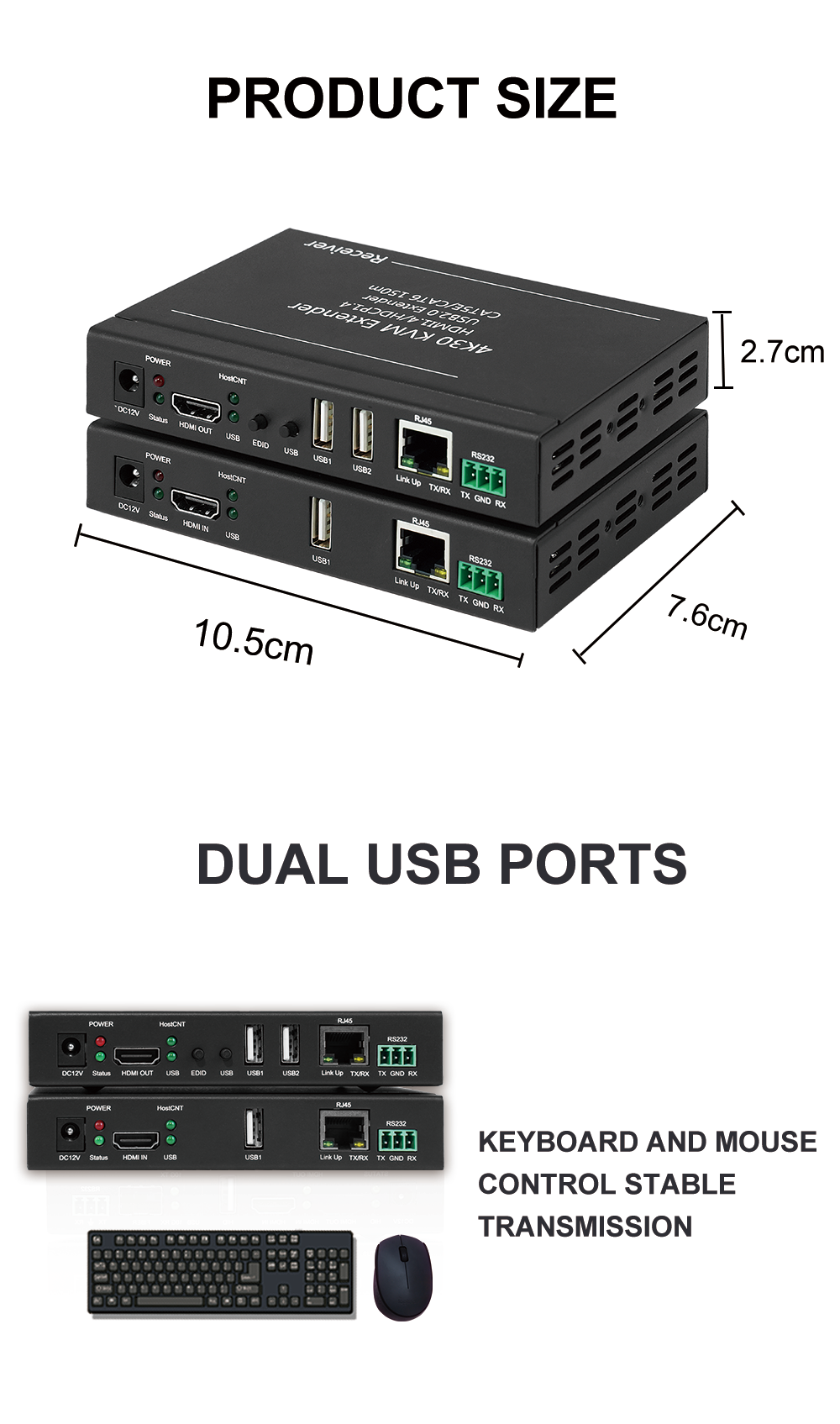

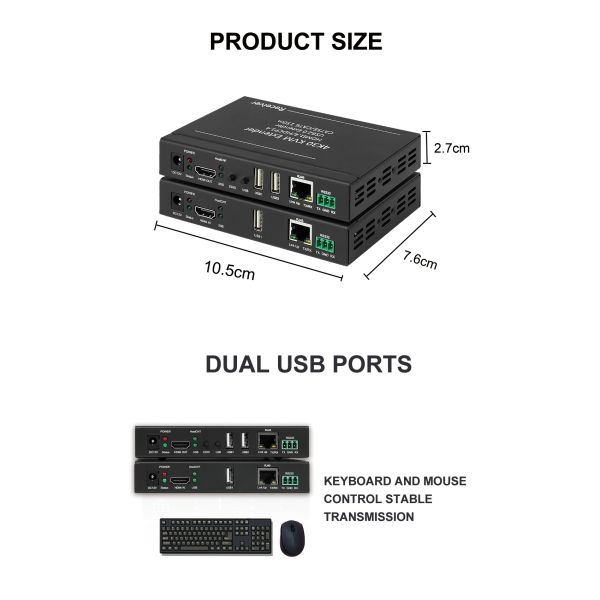

Dimensions :
105*76*27mm
Weight :
0.5KG
USB Support :
USB2.0, KVM function
Description
Product Description

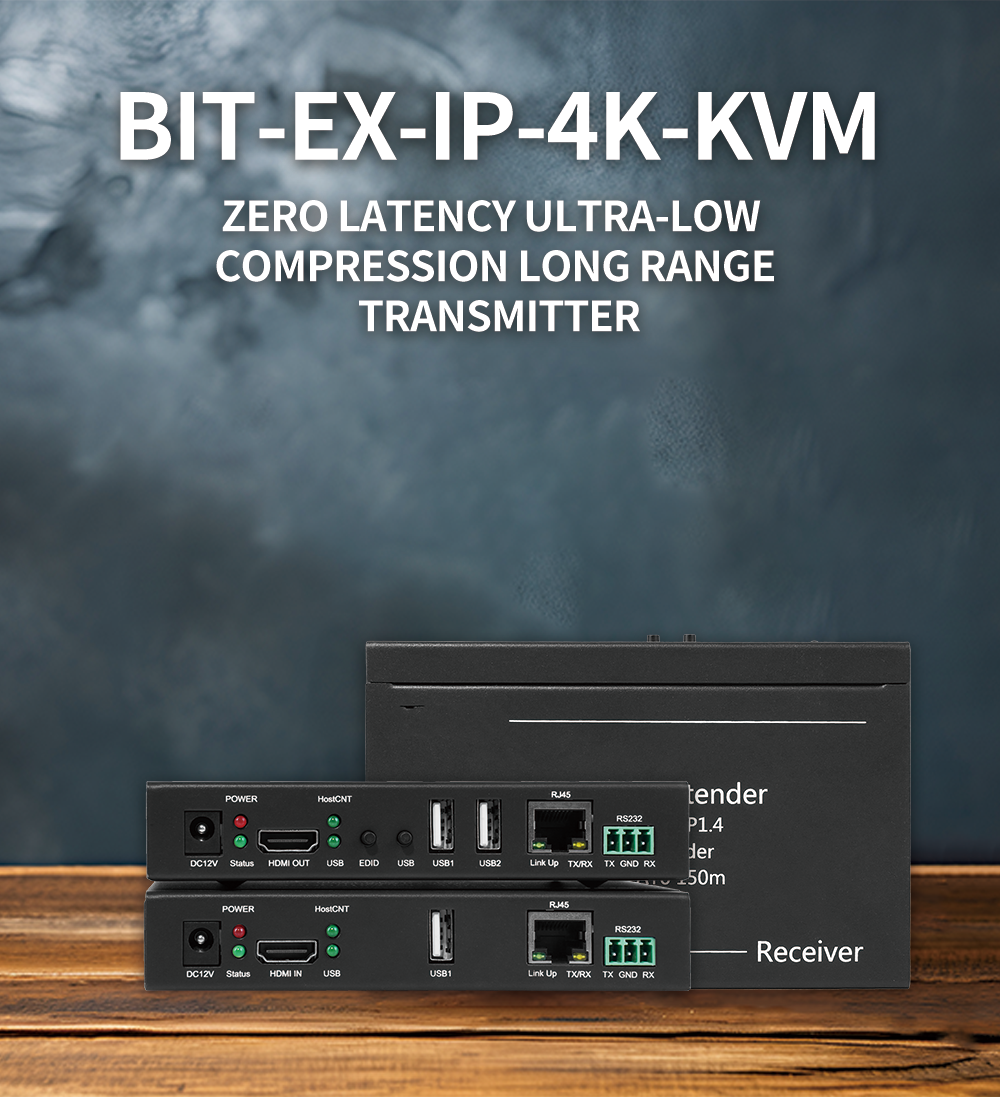

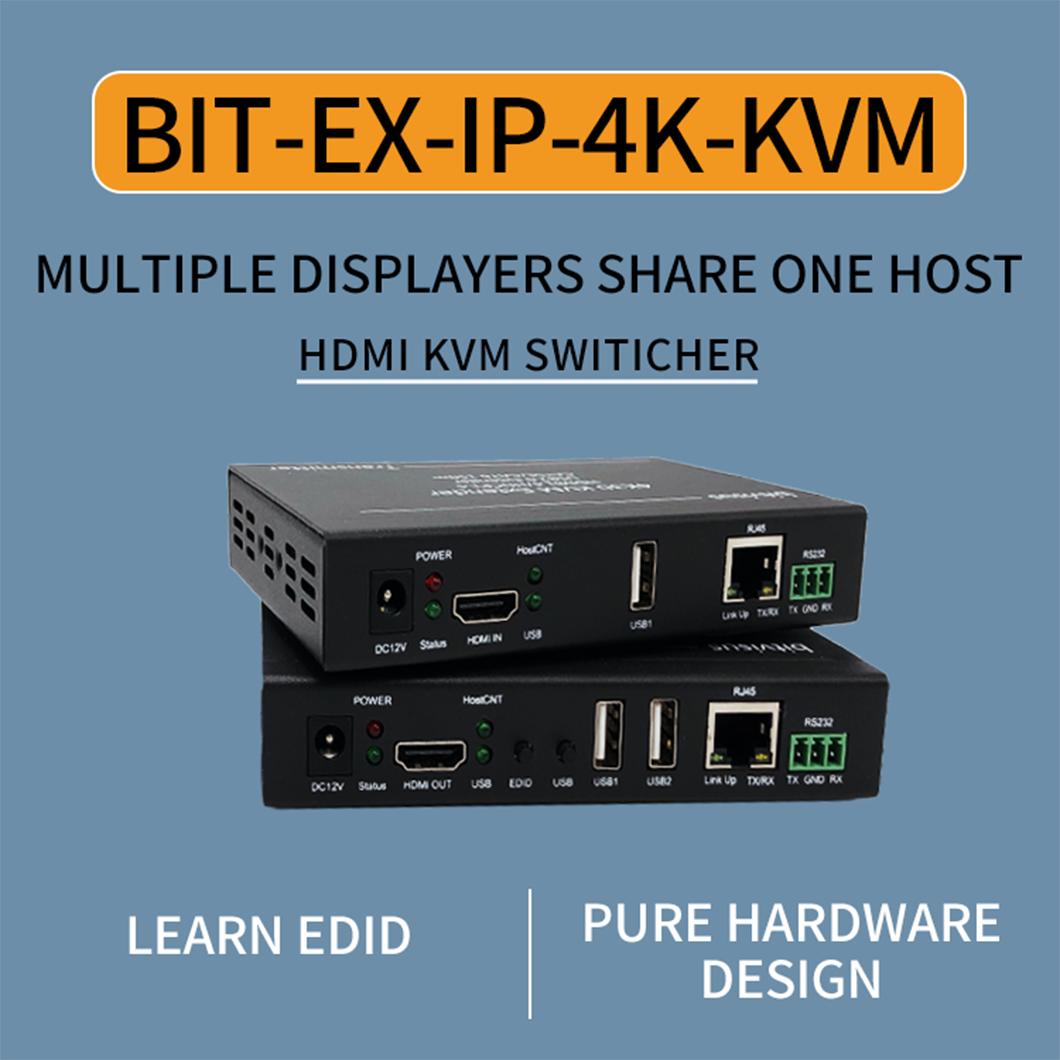

4K30 USB KVM HDMI Extender
☞Support screen ultra-high definition 4k, choose the most advanced video processing chip in the industry.
☞The farthest transmission distance can support up to 100m, HDMI interface input and output, transmission without delay, ultra-low compression picture without artifacts.
☞The highest supported resolution reaches 3840x2160@30Hz, backward compatible with low resolution.
☞Support bi-directional RS232 communication function.
☞Support USB-KVM function, dual USB interface to connect the mouse and keyboard.
☞Support high-speed USB2.0 extension function, can support touchscreens, U disk reading and writing, radar, printer, etc.
☞Learning EDID Management, read the display EDID easy to use.

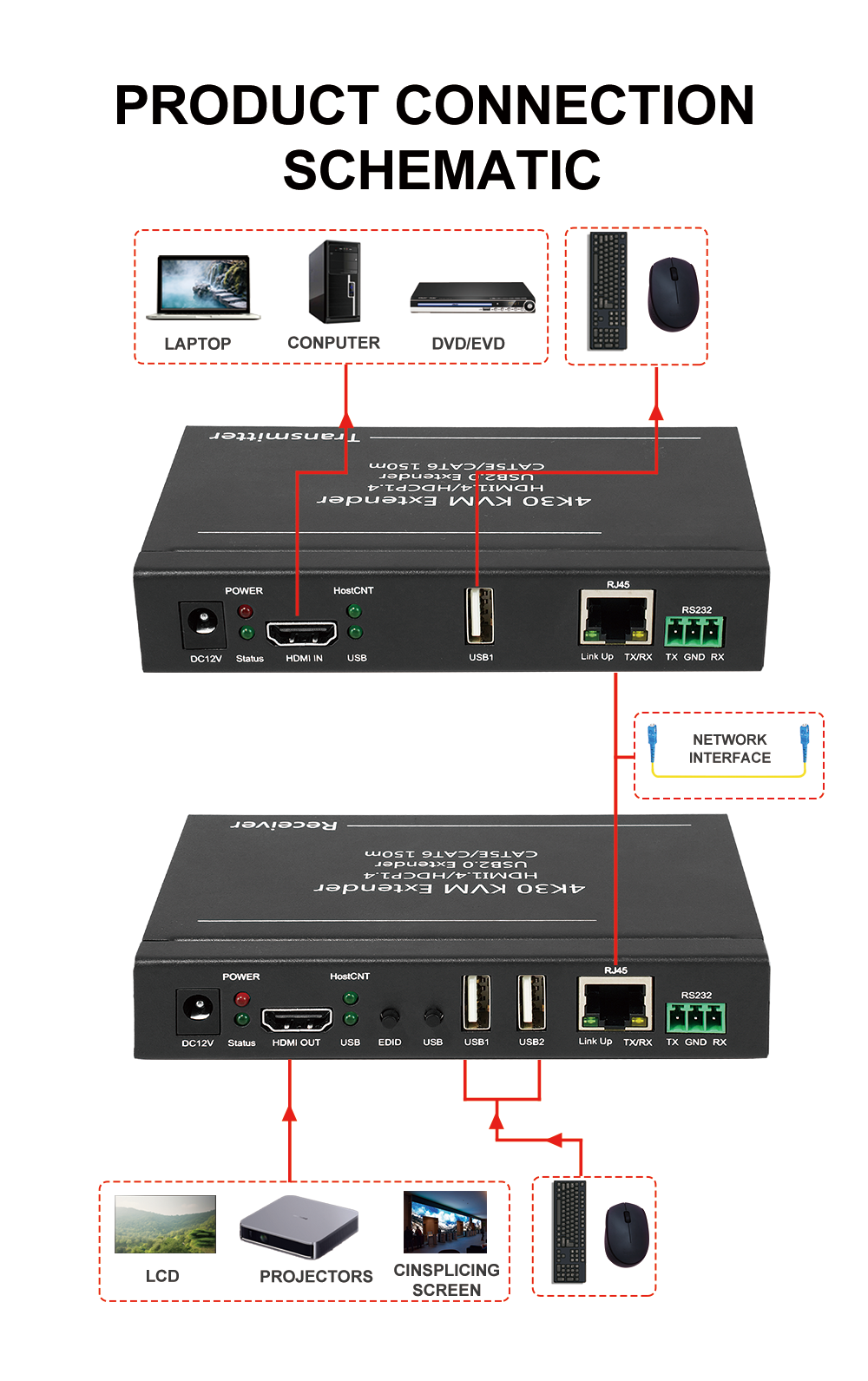

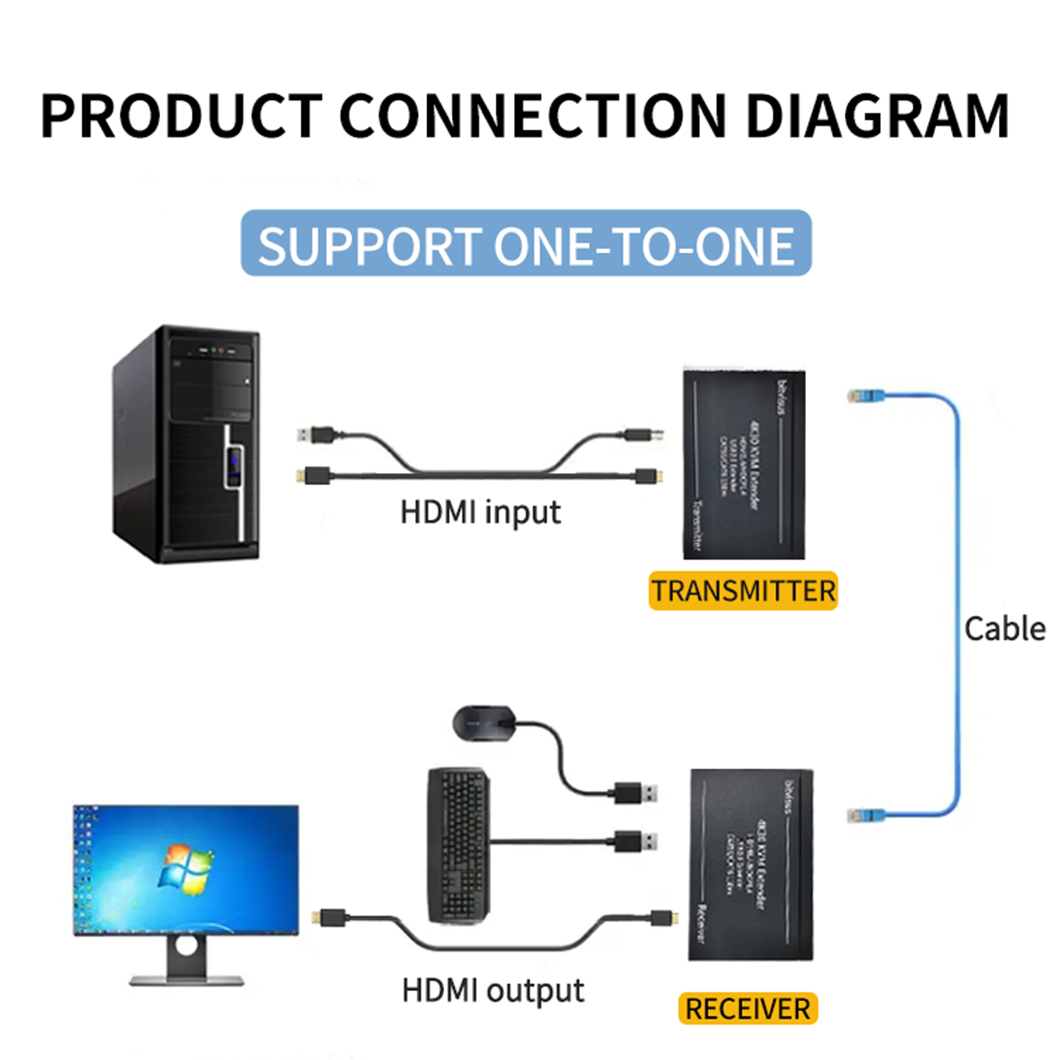

☞Support network IP transmission, support Gigabit switch, support one-to-one, one-to-many (32 receivers).
☞No delay, ultra-low compression, long-distance transmitter, easy to install, simple operation, plug and play.

☞Contact customers!
Welcome to consult the project function requiremen.
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
4K30Hz Video Wall Controller with 100m Transmission and USB-KVM Function for Multi-Channel HDMI KVM Extender
Specification

Enter

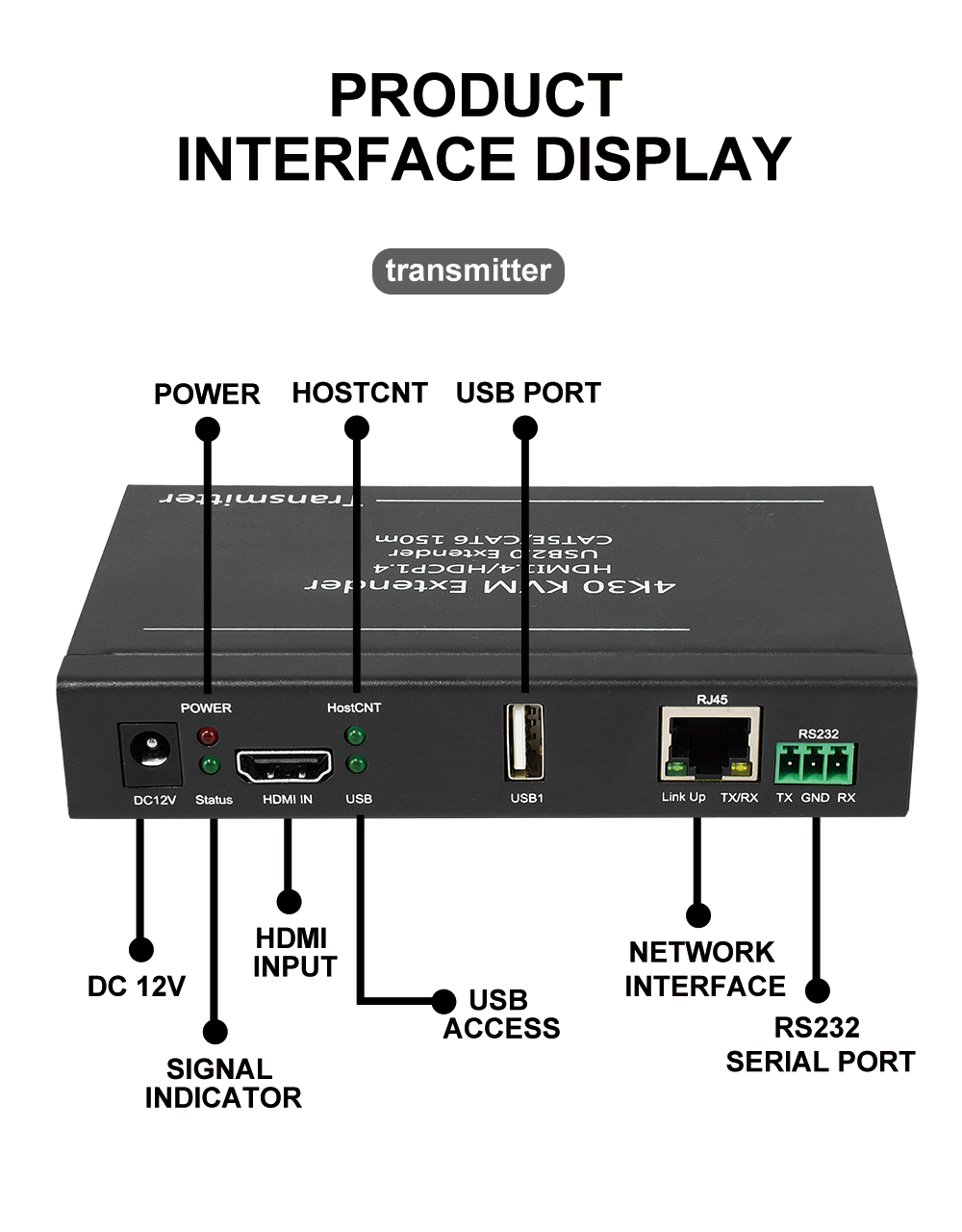

Transmitter (TX)
HDMI 1.4 (≤ 5 m) , IR, RS232 signal

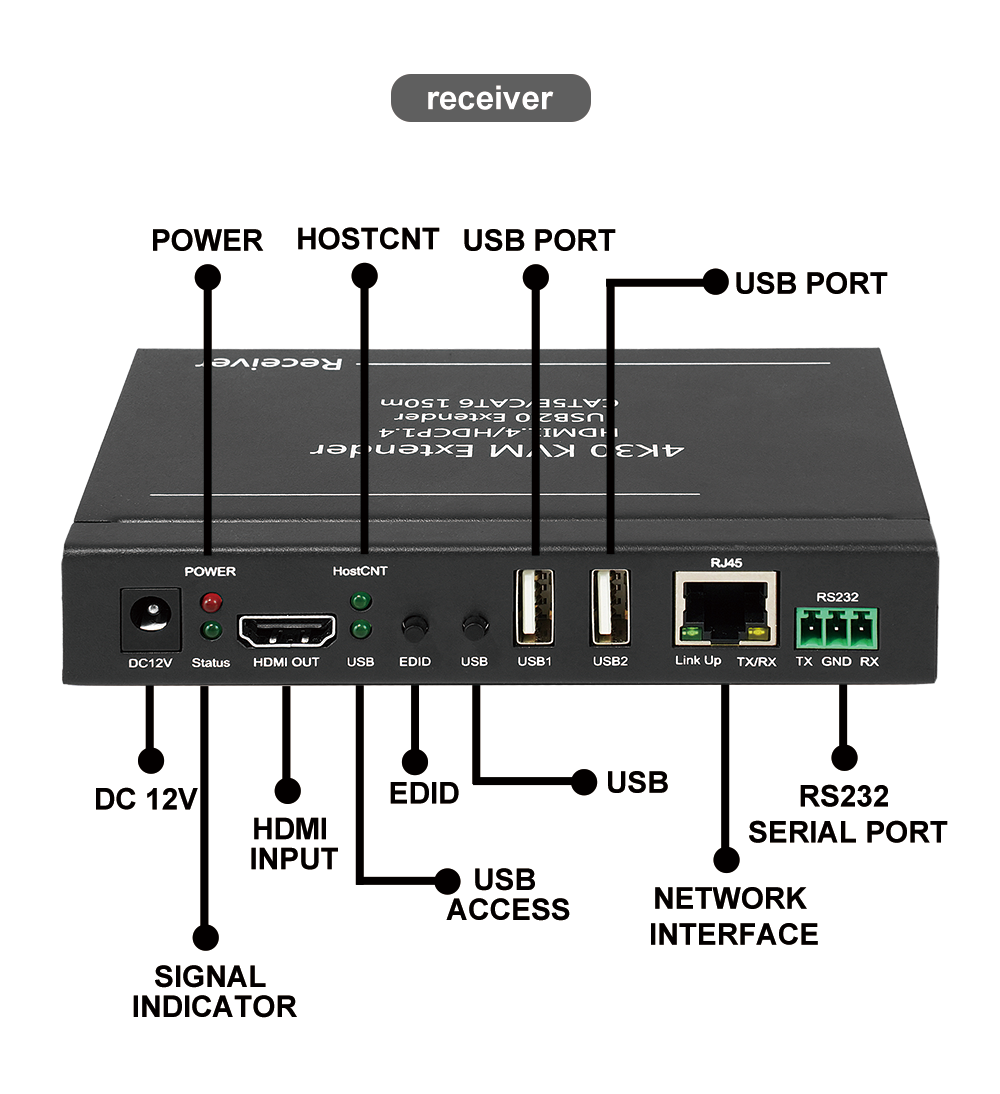

Receiver (RX)
CAT5E / CAT6,100m

Output
Transmitter (TX)
CAT5E / CAT6,100m
Receiver (RX)
HDMI 1.4 (≤ 5 m) , IR, RS232 signal
Audio
HDMI audio output







other
Supported resolution
4K30Hz is backward compatible with standard resolutions
Color Space
Support RGB444 ; YUV color space
Pixel bandwidth
297MHz
Transmission bandwidth
1Gbps
Transmission distance
100 m
Support
EDID learning,CEC,3D,Remote wake up,OEM
RS232
Two-way RS232 transparent transmission
Interface Protocol
HDMI1.4, HDCP 1.4 compatible with DVI1.0, VGA
Power supply
DC 12V 2A
Power consumption
6W
Storage/operating temperature
-10～50ºC/-25～55ºC


Specification
Size
Weight
105*76*27mm
0.5KG
Packing list
Equipment *2, power supply * 2 , double-ended USB cable *1, certificate *1, warranty card *1
After-sales service
1 year warranty
