Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ex-HDBT-70
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
10.5*7.6*2.7cm
Material :
Metal
Input Transmitter :
HDMI 1.4 (≤ 5 m)
Input Receiver :
CAT 5E, 70 m
Output Transmitter :
CAT 5E, 70m
Output Receiver :
HDMI 1.4 (≤ 5 m)
Color space :
RGB444; YUV
Pixel bandwidth :
165MHz / 300MHz
Transmission bandwidth :
10.2Gbps
Transmission distance :
1080p: 70m (CAT5E), 4K: 40m (CAT6E)
Interface Protocol :
HDMI1.4, HDCP2.2, DVI1.0, VGA
Resolution :
4K30Hz, 7680x1200@30, 5760X1200@30, 7680X1080@30
Power Supply :
DC 12V 2A
Power Dissipation :
≤12W

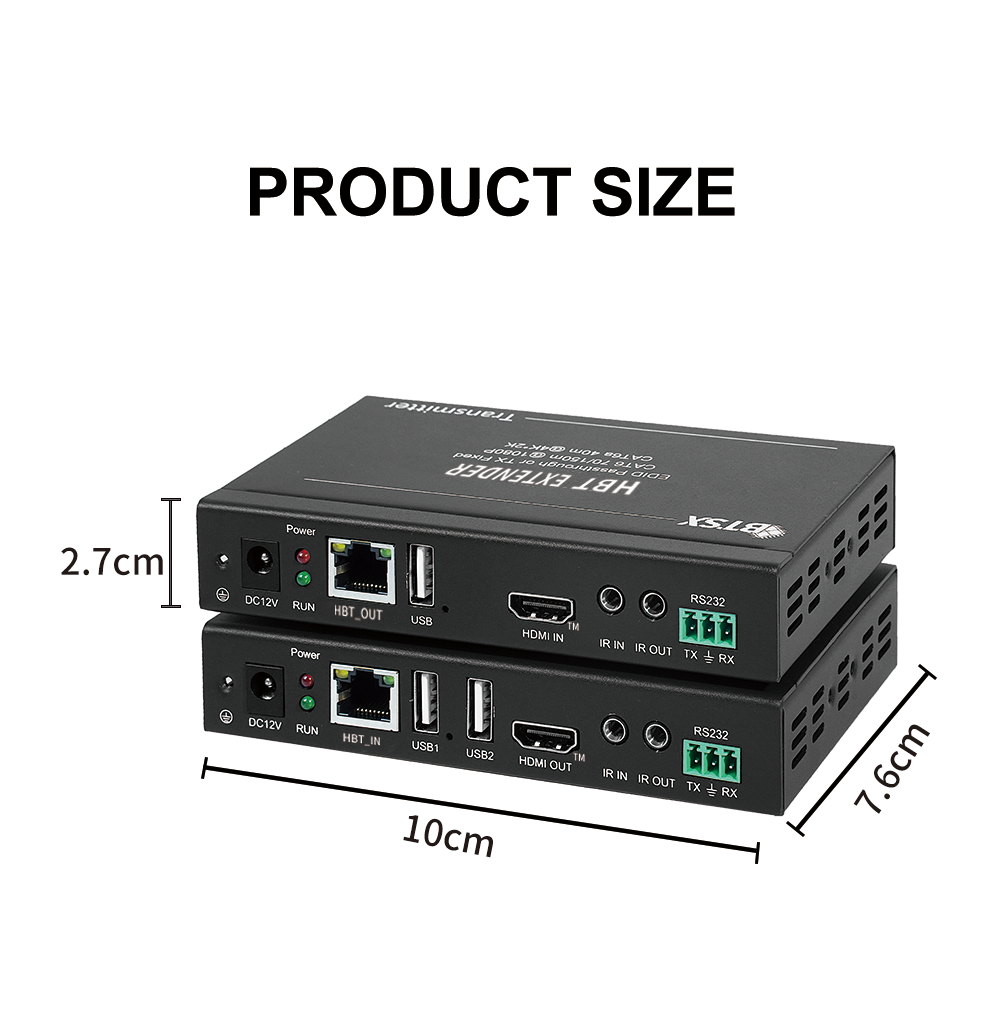

Dimensions :
10.5*7.6*2.7cm
Net weight :
0.5KG
Description
Product Description

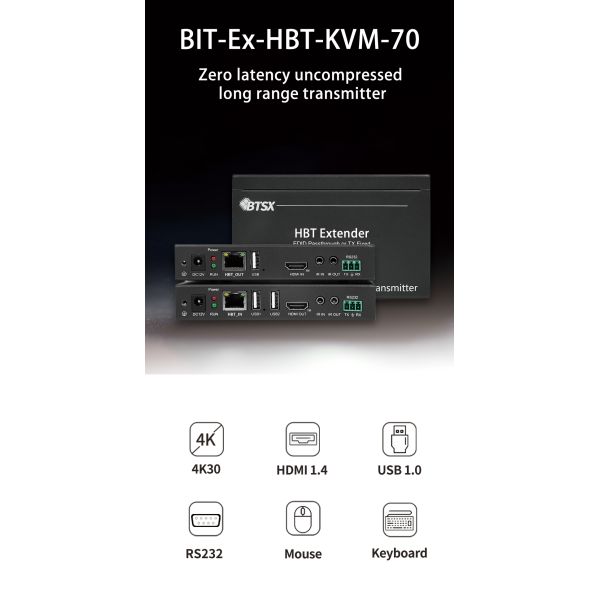

4K2K@30Hz 70m/40m HD BaseT HDMI KVM Extender

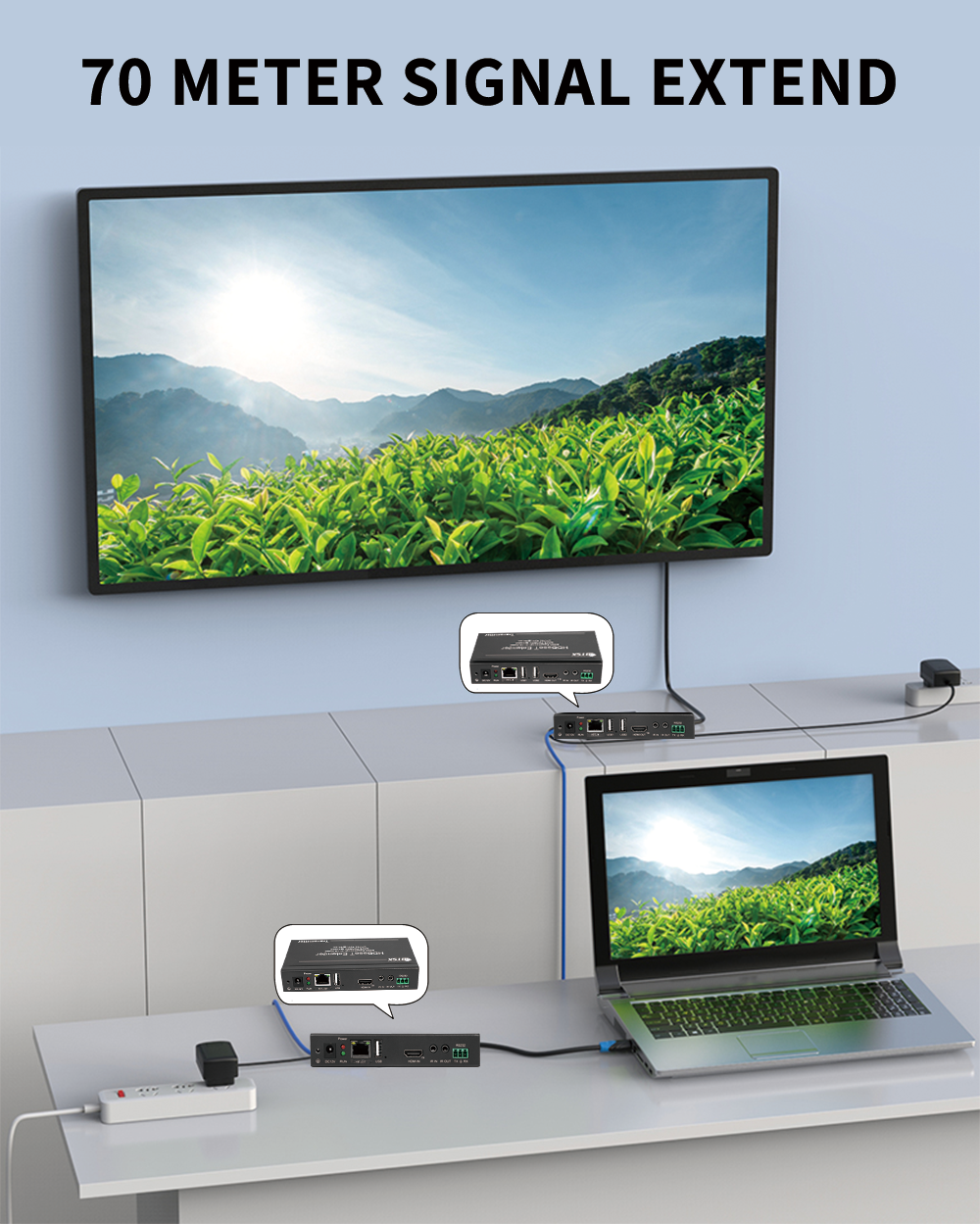

This HDMI 70m extender can extend high-definition audio and video signals, RS-232 signals and bi-directional IR signals up to 70 meters between the transmitter and receiver through a single CATAT5e/CATAT6a cable.The video resolution supports up to 4K2K@30Hz RGB4:4:4.

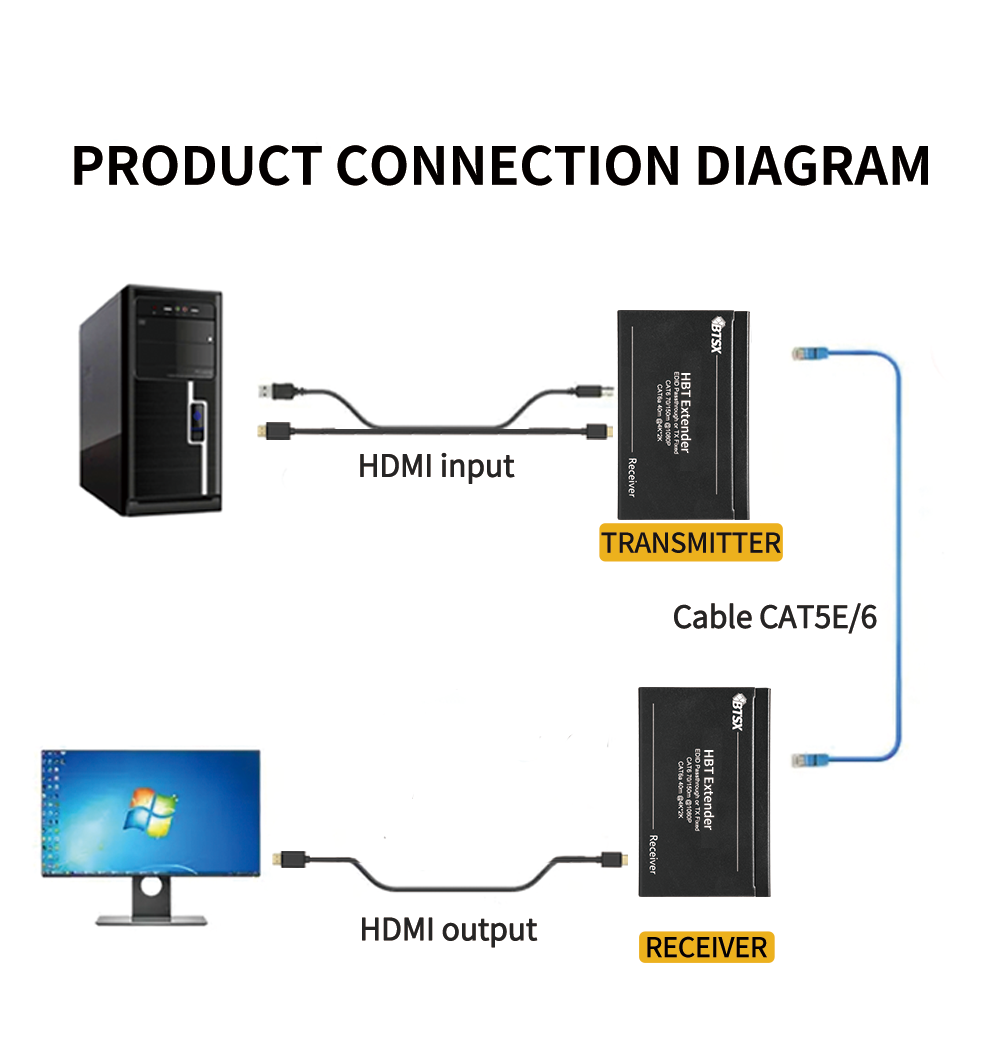

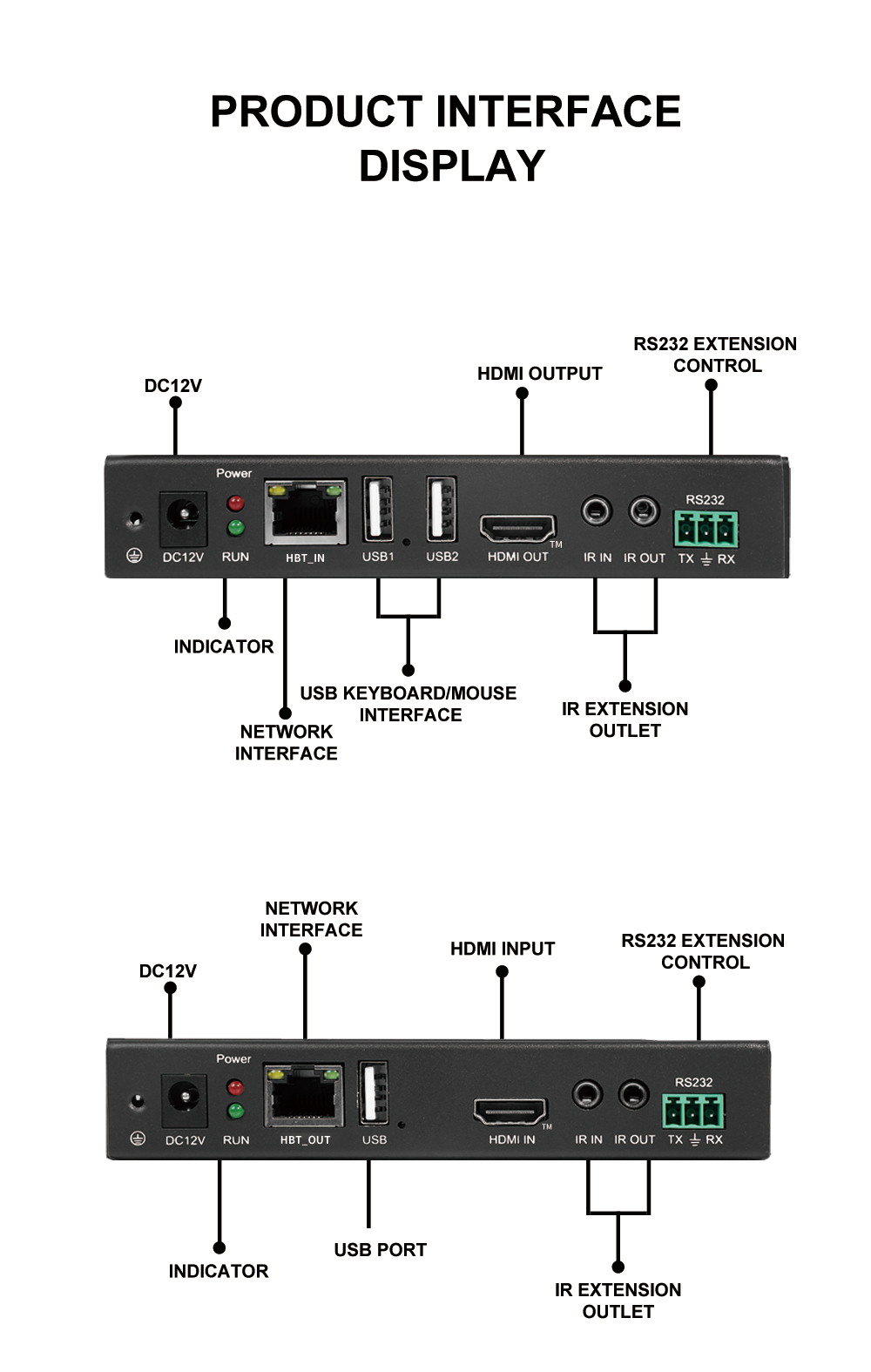

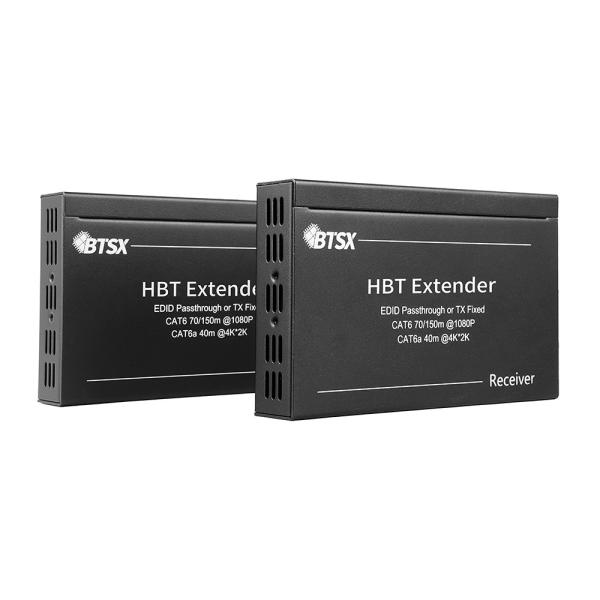

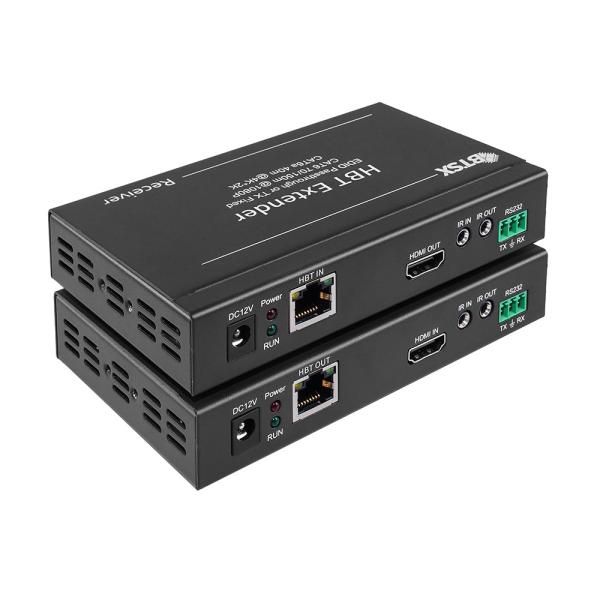

This HDMI extender includes 2 parts: transmitter and receiver.
Transmitter: mainly responsible for acquiring HDMI signals, transmitting or receiving IR control signals, and extending the signals through CAT cables;
Receiver: mainly responsible for receiving HDMI signals, transmitting or receiving IR control signals.
☞Compatible with HDMI 1.4, HDCP 2.2/DVI 1.0 and VGA；
☞Support 10Gbps bandwidth；
☞The max transmission of a single CAT5e/CAT6a cable
for 1080P resolution HDMI signal is 70 meters,
for 4Kx2K resolution HDMI siganl is 40 meters；
☞Adopting standard HD-BaseT transmission protocol, long transmission distance, fast speed, uncompressed video signal, clear picture quality, strong stability, low failure rate；
☞Supports bi-directional IR, RS-232 control and CEC pass-through；
☞Supports two-way RS232 communication/two-way IR control；
☞Support Line-powered POE for 12V power to a single (TX/RX) device only；
☞Plug and play, easy to operate.

☞Contact customers!
Welcome to consult the project function requiremen.
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
4Kx2K@30Hz HDBaseT Extender with 70m Transmission and Zero-Latency for Multi-Screen Projects
Specification
Parameter specification
Resolution
4K30Hz downward compatibility；
7680x1200@30，5760X1200@30，7680X1080@30
Signal Format
Supports common resolution in various input signal formats；
Supports common VESA and HDTV signal formats
Support
CEC/3D/Remote Wakening/EDID Fixed/Transparent Transmission/OEM
RS232/IR
Two-way RS232 transparent transmission
Two-way IR transparent transmission
Power Supply
DC 12V 2A
Power Dissipation
≤12W
Storage/Operating Temperature
-10～50ºC/-25～55ºC
Resolution/ Distance
4K2K
70 meters
1080P
40 meters
Specification
Dimenssion
10.5*7.6*2.7cm
Net weight
About 0.5KG
Packing List
Equipment*2;Power supply*1
Two-end USB cable*1;Certification*1;Warranty card*1
After-sales Service
Warranty 1 year
