Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ex-HDBT-4K-KVM-100
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
105*76*27mm
Material :
Metal
Color space :
RGB444; YUV
Pixel bandwidth :
165MHz/300MHz
Transmission bandwidth :
10.2G bps
Transmission distance :
1080p: 100m (CAT5E), 4K 30Hz: 100m (CAT6E)
KVM interface :
USB1.0, dual USB
RS232/IR :
Bidirectional transmission
Interface protocol :
HDMI1.4, HDCP2.2, DVI1.0, VGA
EDID support :
Solid/through transmission
Power input :
DC 12V 2A
Max resolution :
4K*2K@30Hz

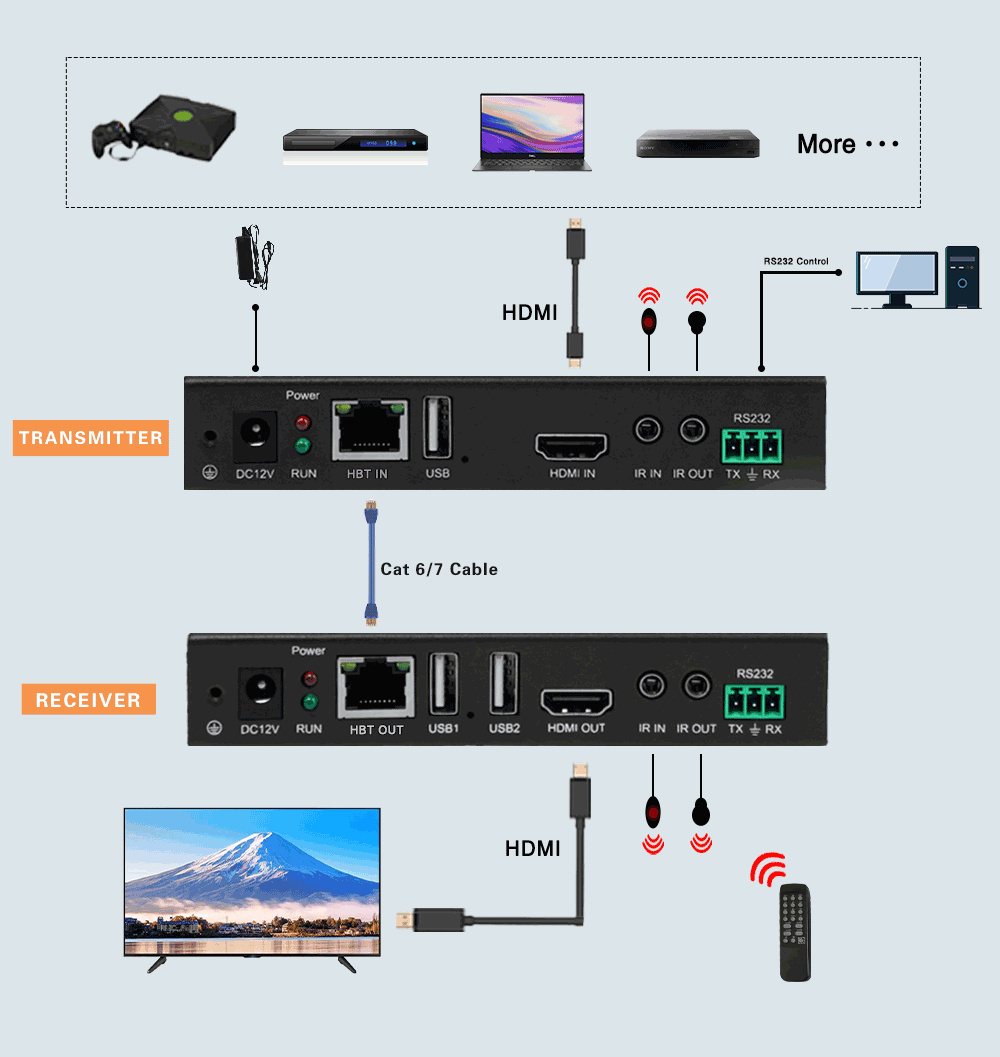

Input interfaces :
HDMI x1, RS-232 x1, RJ45 x1, IR x1
Output interfaces :
HDMI x1, IR x1
DVI max distance :
16 feet
POE support :
Yes
Description
Best Saling Product
Product Description
Place of Origin
Guangdong, China
Brand Name
Bitvisus
Model Number
BIT-Ex-HBT-4K-100
Input Interface
HDMI x1 RS-232 x1 Standard RJ45 interface x1 IR x1
Output Interface
HDMI x1 IR x1
DVI Max I / O distance
Less than 16 feet
Recommended maximum transmission distance
1080p: CAT6 230 / 330 feet
4K * 2K: CAT6 130 feet
Power
DC 12V/1A
Maximum resolution supported
4k*2k@30Hz
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
HDBaseT HDMI Extender with 4K Support 100m Transmission POE USB-KVM for Multi-Screen Project
Product Details
4K HDMI HBT Extender Features
BIT- Ex-HBT-4K-100 is a fast-speed transmitting uncompressed picture quality extender by Shenzhen Bitvisus Technology Limited.

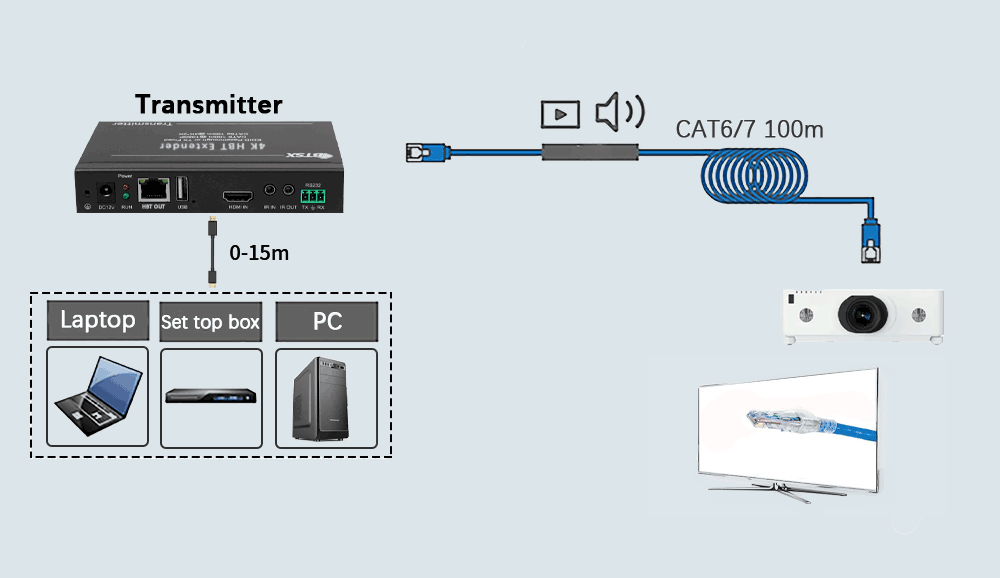

An extender product for transmitting HDMI 1.4 HD video signal through six kinds of network cables, which can effectively extend the network transmission distance and break the limit of traditional Ethernet transmission distance within 330 feet.

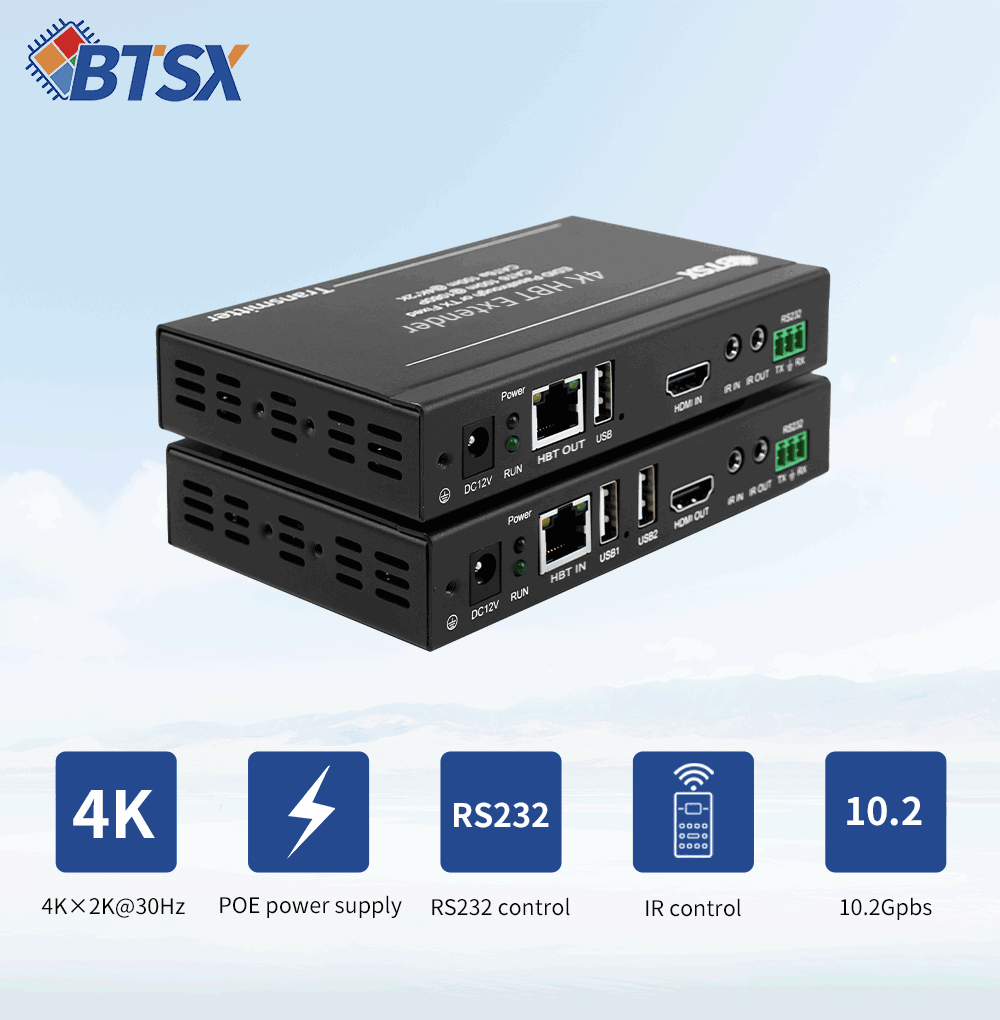

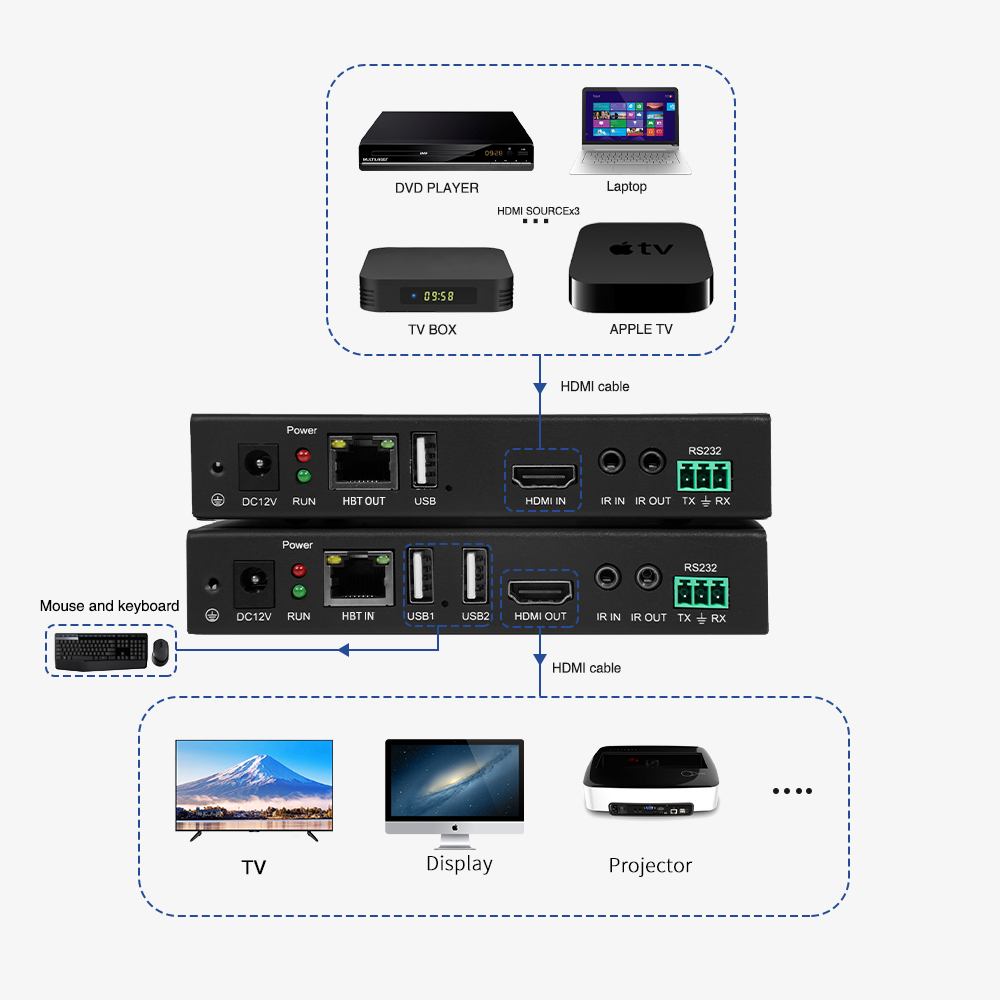

● Support 4K * 2K @ 30Hz resolution transmission, downward compatible with low resolution. ● When the resolution of HDMI interface is 4K * 2K @ 30Hz, it supports cat.6 or cat.7 with a maximum length of 130 feet. ●The standard HBT transmission protocol is adopted,with long transmission distance,fast speed,no compression of video signal,clear and smooth picture quality, reliable performance, strong stability, low failure rate. ● HBT standard supports power POE of network cable, and only needs to supply 12V power for a single (Tx / Rx) HBT device. ● Adopt full hardware design architecture, plug and play, without any software driver.
● With KVM function, you can connect mouse and keyboard
