Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ex-Fib-IP-4K-KVM
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :

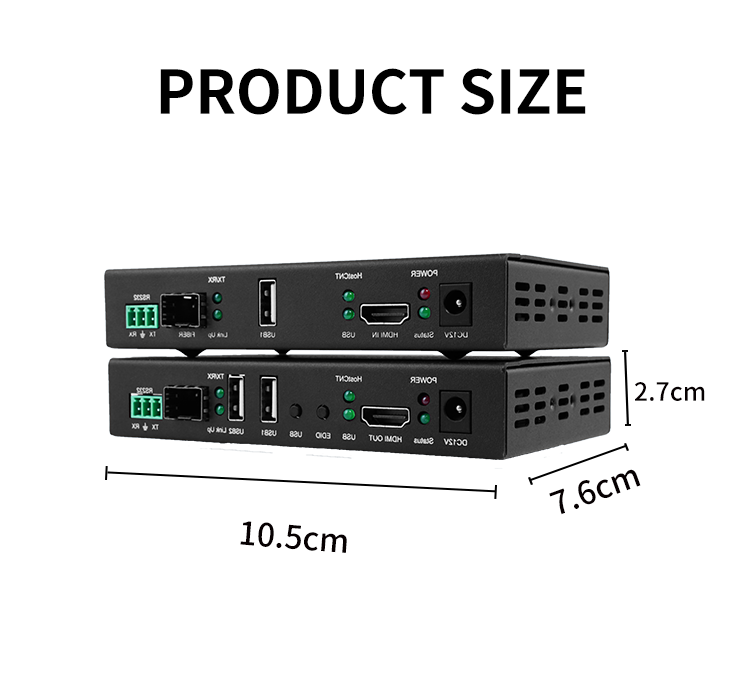

105*76*27mm
Material :
Metal
Supported resolution :
4K30Hz
Color space :
RGB444, YUV
Pixel bandwidth :
297MHz
Transmission bandwidth :
1.25Gbps
Transmission distance :
30KM
KVM support :
USB 2.0
RS232 support :
Two-way transparent transmission
3D support :
Yes
EDID learning :
Supported
CEC support :
Yes
Input interface :
HDMI1.4, IR, RS232
Output interface :
HDMI1.4, IR, RS232
Storage temperature :
-10～50ºC
Operating temperature :
-25～55ºC
Description
Zero Delay 30KM Fiber Optic KVM Extender
Uncompressed 4K30 with USB RS232 for Industrial AV Transmission
Product Overview

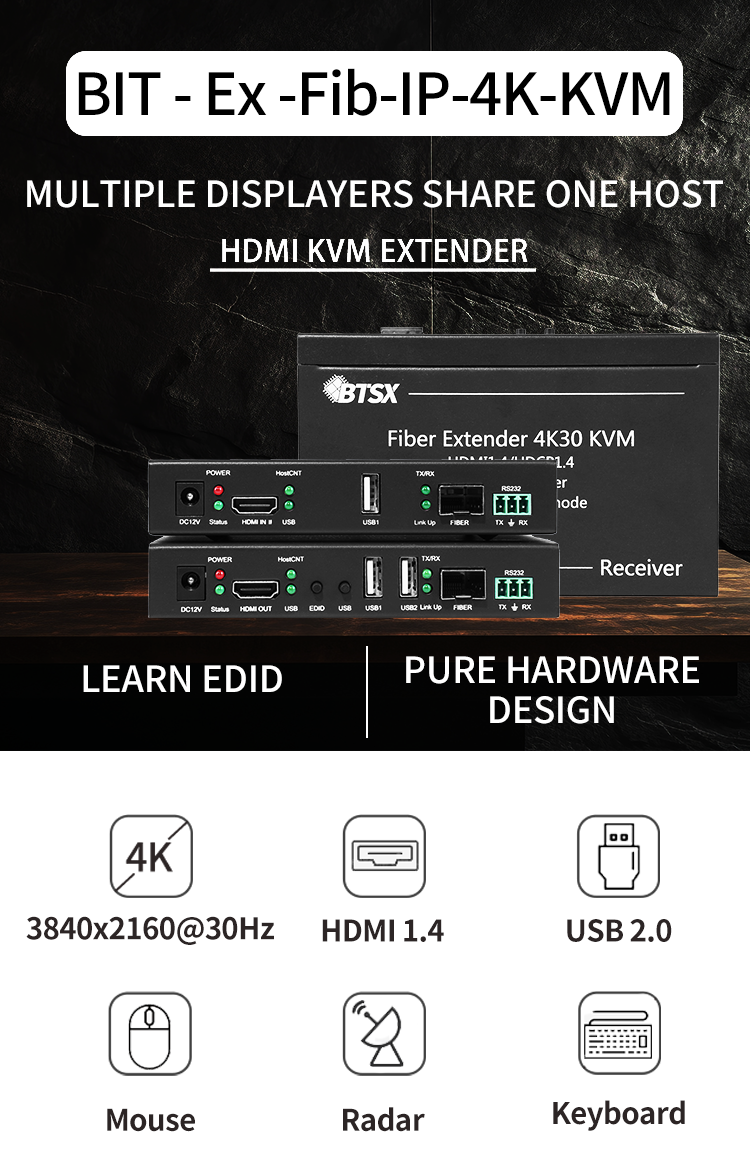

Advanced 4K EDID KVM USB Fiber Optic HDMI Extender designed for professional industrial AV transmission applications.
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Key Features
  • Ultra-high-definition 4K30Hz video transmission with industry-leading video processing chip
  • Extended transmission distance up to 20 km via HDMI interface
  • Customizable resolution support up to 3840x2160@30Hz with backward compatibility
  • Bidirectional RS232 communication functionality
  • USB-KVM functionality with dual USB interfaces for mouse and keyboard connectivity
  • High-speed USB 2.0 extension supporting touchscreens, U disk reading/writing, radar, printers, and more
  • Learning EDID Management for easy monitor compatibility
  • Zero delay uncompressed long-distance transmission with plug-and-play operation
    Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Contact our technical team to discuss your project requirements!
Technical Specifications

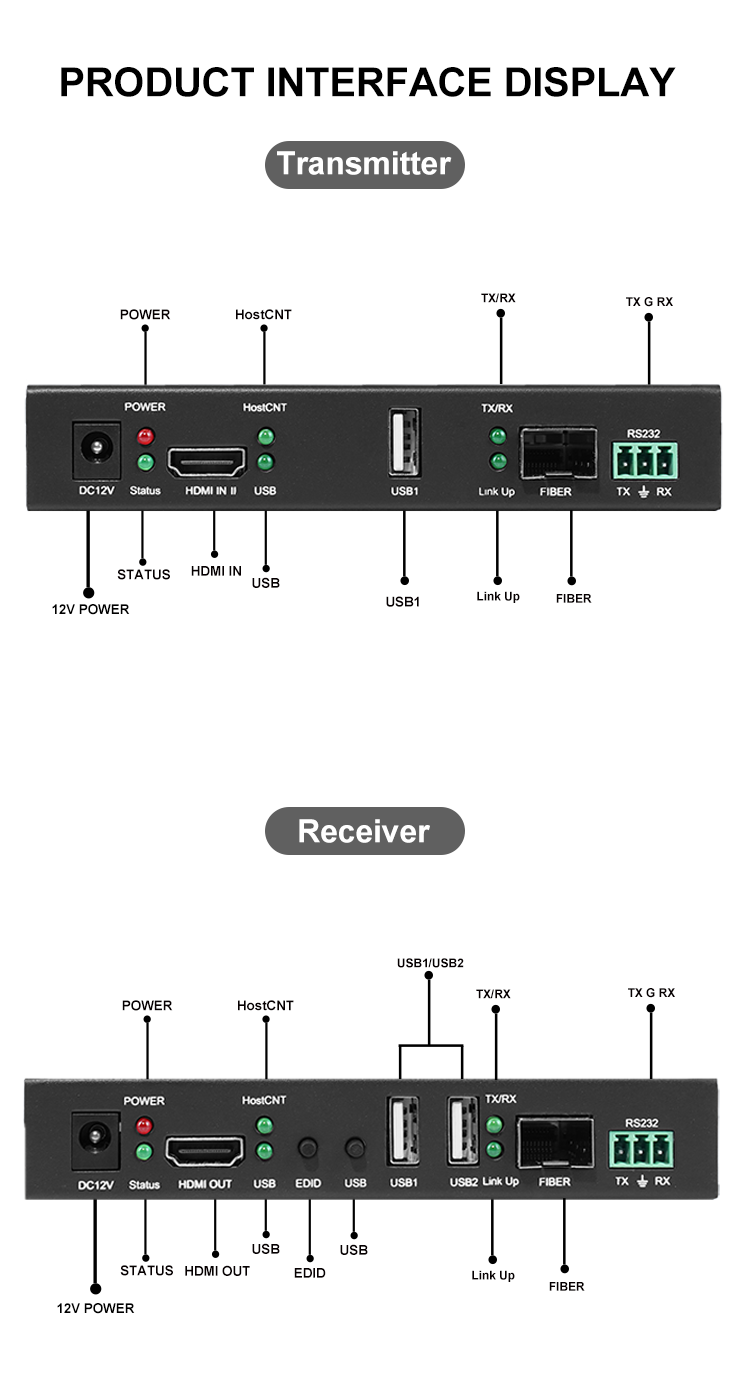

Input Transmitter (TX): HDMI1.4 (≤5m), IR, RS232 signal
Receiver (RX): LC-LC single-mode single-core fiber, 10KM
Output Transmitter (TX): LC-LC single-mode single-core fiber, 10KM
Receiver (RX): HDMI1.4 (≤5m), IR, RS232 signal
Audio: HDMI audio out
Performance Supported resolution: 4K30Hz backward compatible with standard resolutions
Color space: Support RGB444; YUV color space
Pixel bandwidth: 297 MHz
Transmission bandwidth: 1Gbps
Support: EDID, CEC, 3D, Remote wake up, OEM
KVM: USB 2.0, keyboard and mouse, U disk, radar, infrared touch, printer, etc
RS232: Two-way RS232 transparent transmission
Storage/Operating temperature: -10～50ºC / -25～55ºC

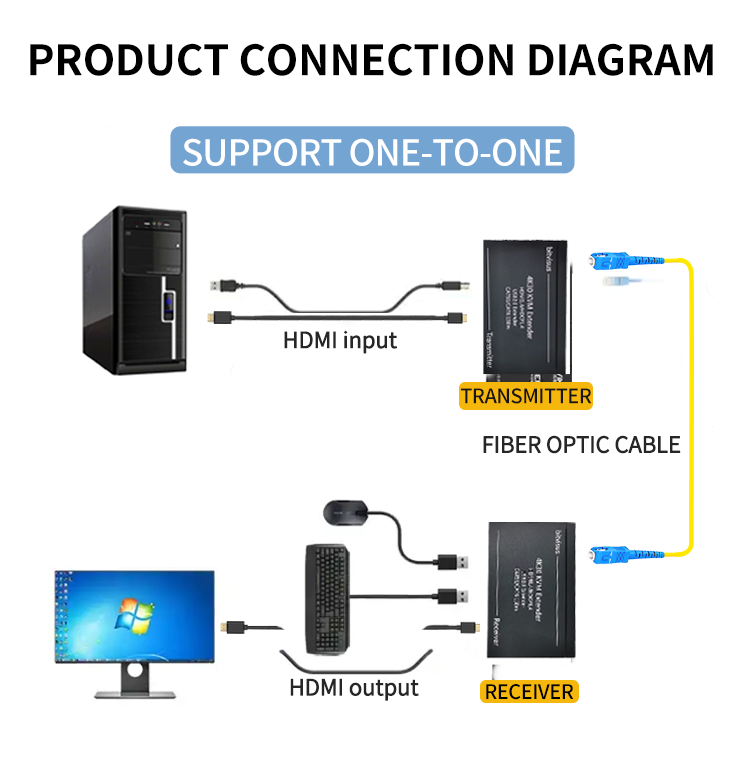

Use: HDMI, KVM, RS232 signal extension
Zero Delay 30KM Fiber Optic KVM Extender with 4K30 Resolution for Industrial AV Transmission
Package Contents
Equipment ×2, Power supply ×2, Double-ended USB cable ×1, Single-mode single-core optical module ×2, Certificate ×1, Warranty card ×1
Warranty & Support
1 year warranty with comprehensive after-sales service
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring 48-hour shipping (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in industrial AV transmission solutions
How to Order
  • Contact us via email, TM, WhatsApp, or Skype with your requirements
  • Receive proforma invoice based on your order request
  • Fast delivery after payment confirmation
Warranty & After-sale Service
  • 12-month warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect items
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
