4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact us
Model Number :
BIT-Ma-GS-0404-2.0
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
270mm x 122.5mm x 20.5mm
Material :
Metal
Input resolution :
3840x2160@60Hz
Output resolution :
3840x2160@60Hz
Maximum bandwidth :
18Gbps
HDMI input ports :
HDMI 2.0 x4
HDMI output ports :
HDMI 2.0 x4
Audio output :
HDMI, 3.5mm Headphone Holder, PDIF Audio
Control method :
Panel button control, infrared remote control
Power supply :
12V@2A AC-DC power
Power consumption :
12W
Default resolution :
1920x1080@60Hz
Working temperature :
0℃-50℃
Dimensions :
270mm x 122.5mm x 20.5mm
Audio formats :
DTS-HD, Dolby trueHD, LPCM, DTS, Dolby-AC3, DSD
HDMI protocol :
HDMI 2.0, HDCP 2.2
Description
Product Description
Product Name
BIT-Ma-GS-0404-2.0 /Ultra HD Matrix Switcher
Resolution
Up to 3840x2160@60Hz
Supporting Agreement
HDMI 2.0 、HDCP 2.2
Way To Control
Panel buttton control 、 infrared remote control
Audio output
HDMI Output Comes With Audio、3.5mm Headphone holder、PDIF Audio
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control


Product performance description
BIT_Ma_GS_2.0_0404 is a 4 in 4 out all-digital ultra-clear matrix switcher,Freely switch four HDMI signals,the highest supported resolution can reach 3840x2160@60, 3D video. Support HDMI 2.0, HDCP 2.2, and audio output, which can bring users a lossless and true ultra-clear and fully digital experience.
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
Product More Description：
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control

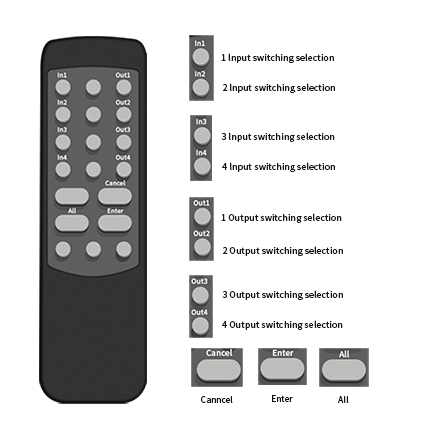

The instruction of remote control button:
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
【Enter】key:
In1+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 1.
In2+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 2.
In3+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 3.
In4+Out1/Out2/Out3/Out4/+ Enter: The output port 1/2/3/4 is switched to the signal of input port 4.
【All】key:
In1+All: All 4 output ports are switched to the signal of input port 1.
In2+All: All 4 output ports are switched to the signal of input port 2.
In3+All: All 4 output ports are switched to the signal of input port 3.
In4+All: All 4 output ports are switched to the signal of input port 4.

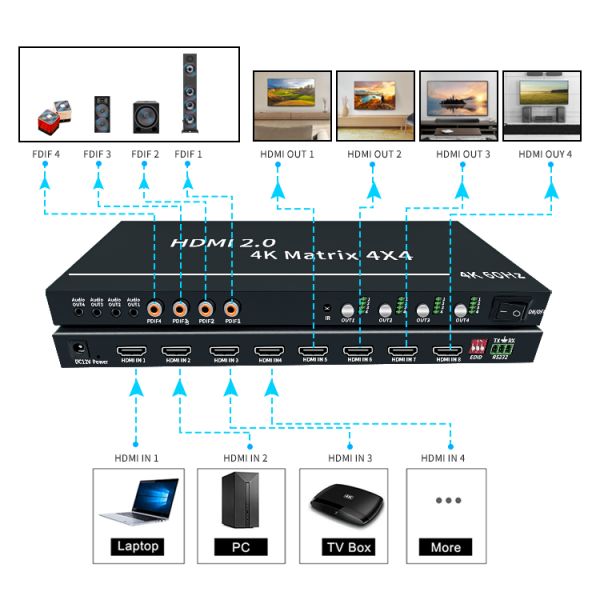

Device panel description
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control

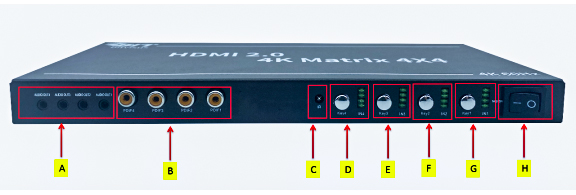

Front Panel
A: 3.5mm headphone socket, audio output, can be connected to headphone audio, etc.
B: RCA socket, PDIF audio output.
C: IR, used to receive remote control signals.
D: OUT4 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
E: OUT3 button and signal indicator, used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
F: OUT2 button and signal indicator,used for signal switching and signal input signal display, from top to bottom, the first light on represents input 1, the second light on represents input 2, and the third light on represents input 3. When the fourth light is on, it means input 4.
G: OUT1 button and signal indicator, used for signal switching and signal input signal display, from top toH: Power switch.
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control

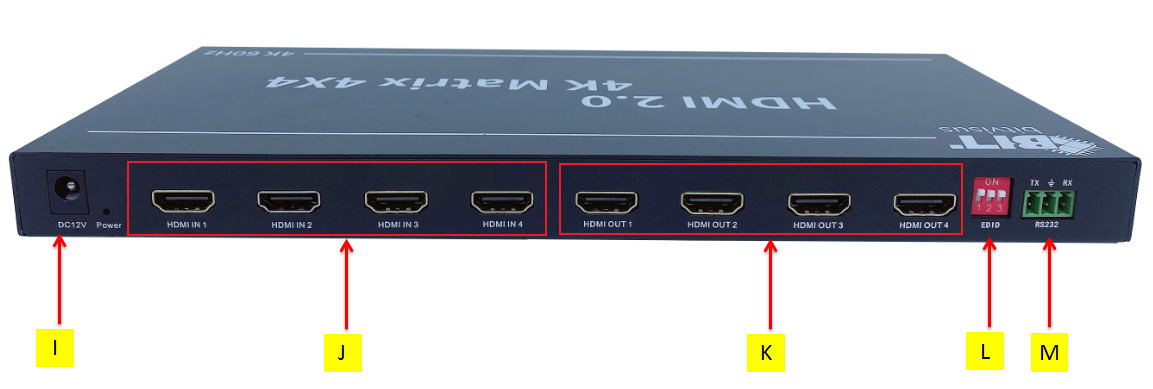

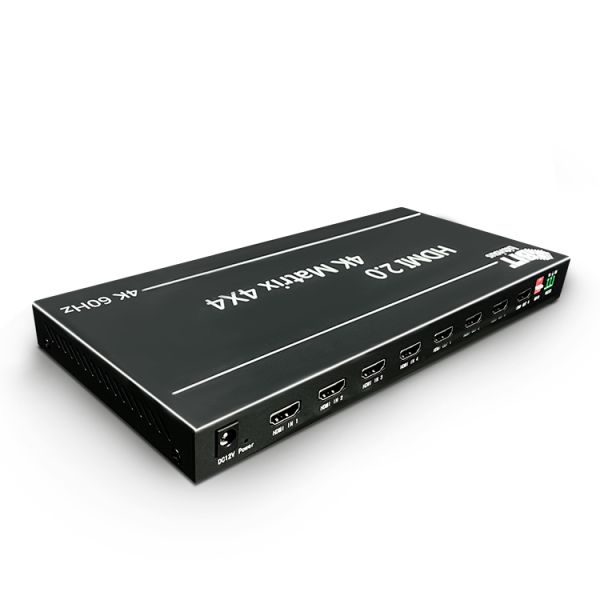

Back Panel
I: Power interface, connected to 12V@2AAC-DC power supply. The LED light (power) next to the interface is the power indicator light. The LED light is on when the device is normally powered.
J: 4 HDMI input ports, used to connect signal input sources.
K: 4 HDMI output interfaces (the interface sequence corresponds to the sequence of the front panel audio output interface and operation buttons), used to connect display devices such as displays, TVs, or monitors.
Features
1.Support 4 HDMI inputs (4 4K@60Hz), 4 HDMI outputs (4K@60Hz).
2.Support Single device, 4 inputs and 4 outputs (compatible with 1 input and 4 outputs).
3.Support audio format DTS-HD/Dolby trueHD/L PCM/DTS/Dolby-AC3/DSD.

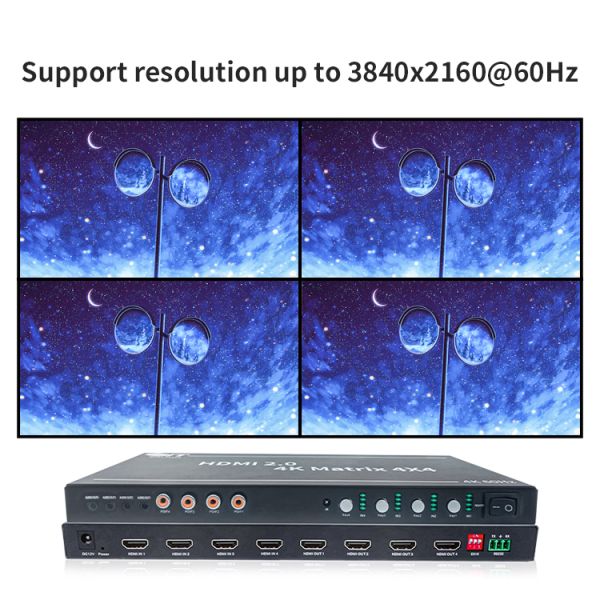

4.Support output resolution, maximum support 3840x2160@60Hz, backward compatible.

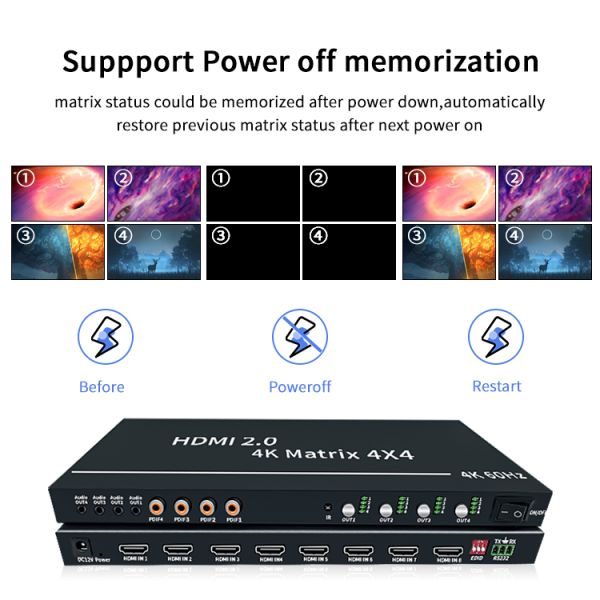

5.With power-down memory function.
6.Low power consumption, energy saving and environmental protection design, internal conduction heat dissipation, no external heat dissipation measures, and extremely high reliability.
7.Support computers, Android boxes, game consoles and other devices as input sources.

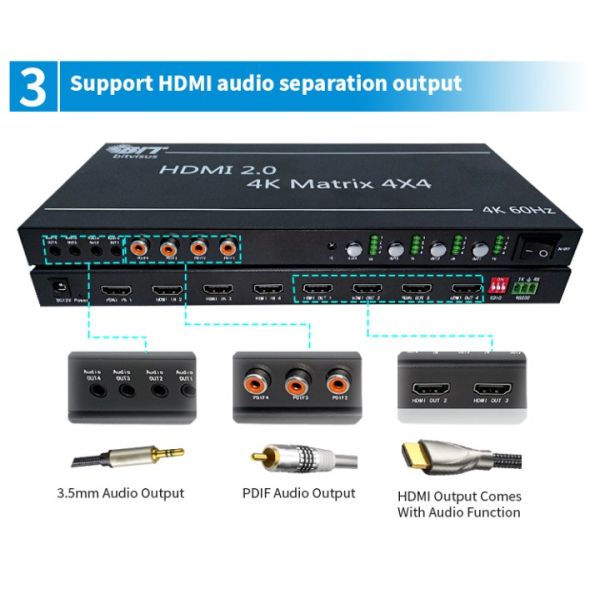

8.Support HDMI audio output, audio separation.
9.No stretching, no deformation, no need to compress the input source, and the picture is clear.
Specification
Input the highest supported resolution
3840*2160@60Hz
Maximum supported bandwidth
18Gbps
HDMI port
HDMI 2.0 x4
Single port support output maximum resolution
3840*2160@60Hz
HDMI output port
HDMI 2.0 x4
Audio output
HDMI, 3.5mm Headphone Holder,PDIF Audio
Control method
Panel button control, infrared remote control
Default resolution
1920*1080@60Hz
Work temperature
0℃-50℃
Power consumption
12W
Power supply
12V@2A AC-DC power supply
Size Length: Width: Height
270mm*122.5mm*20.5mm
Accessories
1 12V@2A AC-DC power supply 1 remote control
Warranty
1 Year
Best Selling Product
Packing & Delivery
Packing:
1.HDMI Matrix 0404: 1pc.
2.Remote Control: 1pc.
3.Power Supply: 12V/2A AC-DC.
4.User Manual: 1pc
Delivery:
1. EXW ShenZhen /ShangHai /HuNan /HanZhou /Hong Kong
2. Shipping days : depend on the area or religion
3. By express / By sea / By air
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
Company Profile
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
4K60 HDMI Matrix Switch 4 in 4 Out with HDMI 2.0 Support for Multi-Screen Control
FAQ
Q: Are you a manufacturer?
A:Yes,we are a manufacturer focusing on the development, production and sales of series products with FPGA image processing technology and high-definition audio and video signal transmission as the core.we have our own factory.

Q:What is your after-sale service?
A: We offer 100% guarantee on our product .

Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q: How long is your delivery time?
A: We are manufacturer.For products without customization,we usually ship them within 3 working days.

Q:Can you customize the product?
A:Yes,we have a team of professional engineers to customize the product.

Q:Can you provide samples?
A:We are honored to provide you with samples,but we need to pay for the samples.
