4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
4K HDMI Extender Kit with 70m Transmission and Bi-Directional Control for Video Walls
Specifications
Brand Name :
Bitvisus
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$91-117
Model Number :
BIT-Ex-HDBT-70
Certification :
CE,HDMI,HDCP,RoHS,FCC
Payment Terms :
T/T,PayPal
Supply Ability :
1000
Delivery Time :
5-8 days
Packaging Details :
135×85×25mm
Material :
Metal
Input TX :
HDMI 1.4 (5m), IR, RS232 signal
Input RX :
CAT 5E,70m
Output TX :
CAT 5E,70m
Output RX :
HDMI 1.4 (5m), IR, RS232 signal
Color space :
RGB444; YUV
Pixel bandwidth :
165MHz / 300MHz
Transmission distance :
1080p 70m (CAT5E), 4K 30Hz 40m (CAT6)
RS232/IR :
Bidirectional
Interface protocol :
HDMI1.4, HDCP2.2, DVI1.0, VGA
Max resolution :
4Kx2K @30Hz
Transmission speed :
10.2Gbps
Power supply :
12V
Poe support :
Yes
Design architecture :
Full hardware
Description

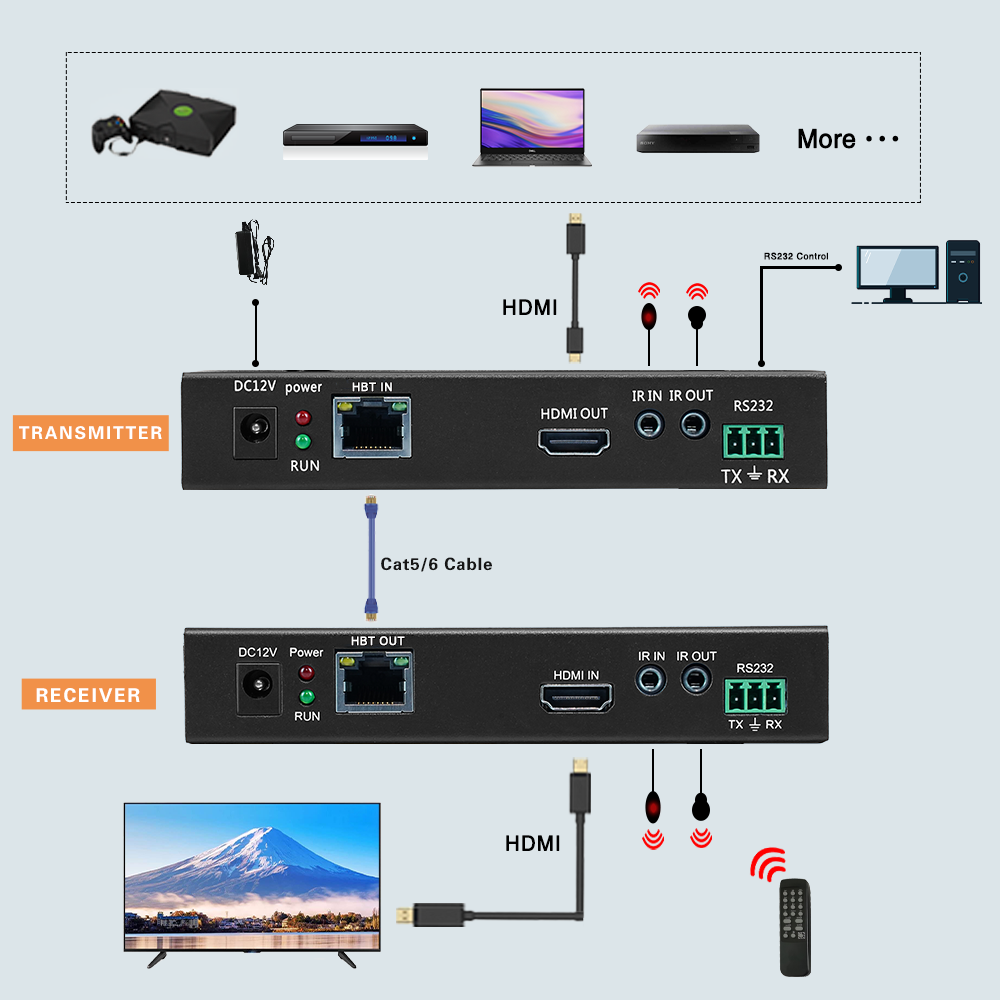

4K HDMI Extender Kit - 70m Transmission Over Single CAT5e/6 Cable
Professional HDMI extender kit designed for transmitting HDMI 1.4 HD video signals up to 70 meters (230 feet) over CAT5e/6 network cable, featuring bi-directional control and fanless design for LCD splicing wall applications.
Key Features & Specifications
  • Supports 4Kx2K @ 30Hz resolution transmission with downward compatibility
  • Lossless, no compression video signal transmission
  • Zero delay for clear and smooth picture quality
  • Maximum transmission distance: 70m (230ft) using CAT5e/6 cable at 4K resolution
  • HBT transmission protocol with 10.2Gbps speed
  • Supports Power over Ethernet (PoE) - only requires 12V power for single device
  • Full hardware design architecture - plug and play, no software drivers required
  • Fanless design for silent operation
  • Bi-directional control capability
  • Professional warranty: 1-year warranty with lifetime after-sales support

Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring 48-hour shipping (excluding weekends and holidays)
  • OEM/ODM services available for custom requirements
  • Leading manufacturer in HDMI extension technology
How to Order?
  • Contact us via email, TradeManager, WhatsApp, or Skype with your requirements
  • We provide proforma invoice based on your order request
  • Fast delivery after payment confirmation
Warranty & After-Sales
  • 12-month warranty with lifetime service support
  • Return or exchange available for faulty, damaged, or incorrect items
Shipment & Payment
  • Payment methods: T/T, Visa, PayPal, Western Union, L/C
  • Shipping carriers: DHL, UPS, EMS, FedEx, Air freight, Sea freight
