weichai 12M55 Baudouin 1500KW gas generator
weichai 12M55 Baudouin 1500KW gas generator
weichai 12M55 Baudouin 1500KW gas generator
weichai 12M55 Baudouin 1500KW gas generator
weichai 12M55 Baudouin 1500KW gas generator
weichai 12M55 Baudouin 1500KW gas generator
Specifications
Brand Name :
weichai
Model Number :
12M55
Certification :
ce
Place of Origin :
China
Description

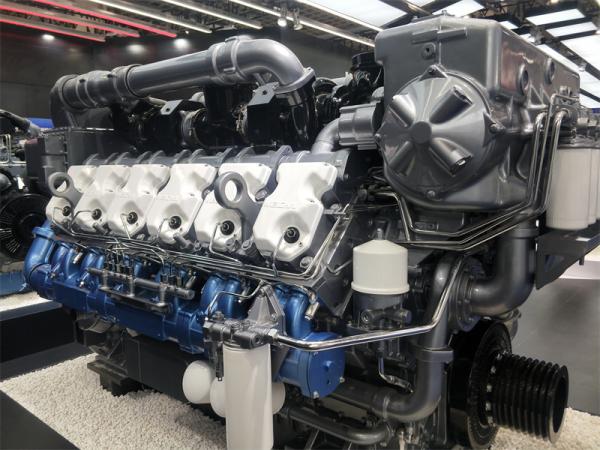

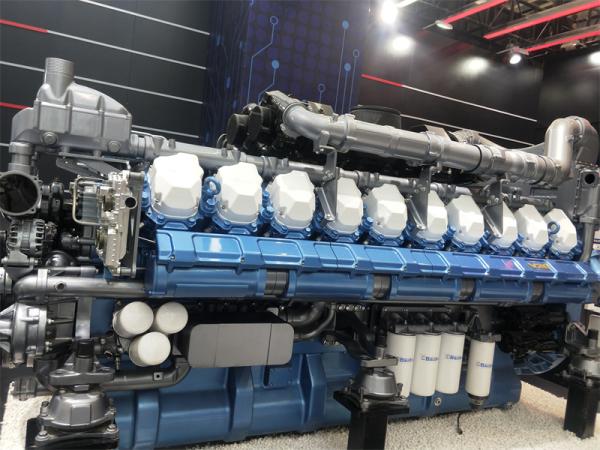

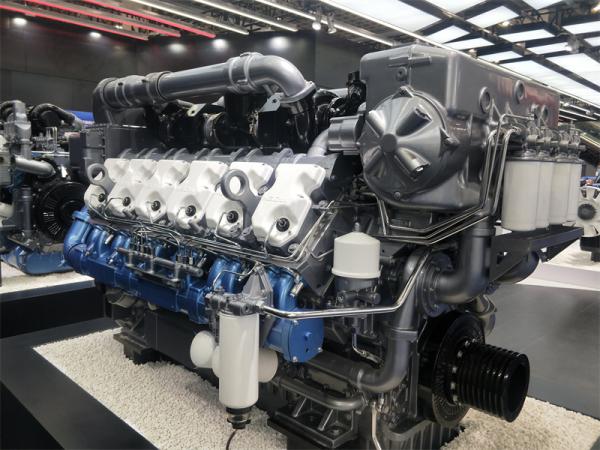

The 12M55NG Series Engine is a new generation of high-end gas engines developed by Weichai. It offers enhanced reliability and a higher degree of automation. The engine delivers a continuous power output of 1580 kWm, making it suitable for 1400 kWe continuous power generator sets.

Rated Power

  • Maximum Power: 1580 kWe

  • Minimum Power: / kWe

  • Maximum Torque Speed: / N·m / r/min

Emissions Standard

  • Emission Level: China Non-road Stage III

General

  • Product Series: 12M55NG

  • Fuel Type: Natural Gas

  • Engine Type: V-type 12-cylinder, four-stroke engine

  • Number of Cylinders: 12

  • Number of Valves: 4 per cylinder

  • Bore: 180 mm

  • Stroke: 215 mm

  • Displacement: 65.65 L

  • Aspiration: Turbocharged and intercooled

  • Compression Ratio: 12:1

  • Combustion System: Lean-burn, spark-ignited

  • Rotation Direction (viewed from flywheel end): —

  • Cooling System Capacity: — L

  • Lubrication System (Fill Volume): — L

Engine Dimensions

  • Length: 3254 mm

  • Width: 1794 mm

  • Height: 2199 mm

  • Dry Weight: 9600 kg
