Specifications
Place of Origin :
China
Brand Name :
WEEM
Model Number :
3128 Segmented Belt
MOQ :
100 pcs
Packaging Details :
4 pcs per box
Delivery Time :
10 workdays
Payment Terms :
T/T
Supply Ability :
All year
Certification :
ISO 9001 & ISO 14001
Treatments :
Anti-static
Grain :
Zirconia Alumina
Backing :
waterproof cloth|Yy weight polyester
Bond :
Resin over resin
Grit :
P40-P100
Appplication :
glass|metal|woodworking
Description


Zirconia Anti Static Segmented Wide Belt Grit 100 With Resin Bonded



Quick Detail:


WEEM 3128 anti-static, self-sharping Zirconia aluminum, waterproof polyester segmented belts are designed for very wide panel and board sanding.



Description:


WEEM 3128 Zirconia Aluminum belts are design for sectional belt, or segmented belt. YY weight polyester backing is use; it provided both stiffness strength and tensile strength, idea for sectional belt. Anti-static treatment made on backing to delay or prevent loading problem.

Zirconia Alumina, ZA, is recognized by its blue color. A rugged synthetic abrasive that is best suited to stock removal applications. The heavy duty structure requires heavier pressure to break down the self-sharpening grains. It is ideal for heavy grinding on ferrous and non-ferrous metals and planning hard woods. This abrasive can last up to 5 times longer than aluminum oxide on tough applications. This gives the grain a longer cutting life and is especially suited to coarser stock removal applications typically grit 40 to grit 80. For panel industrial, the customized belt size can be 1950mm x 2800mm or 2650mm x 3200mm etc.

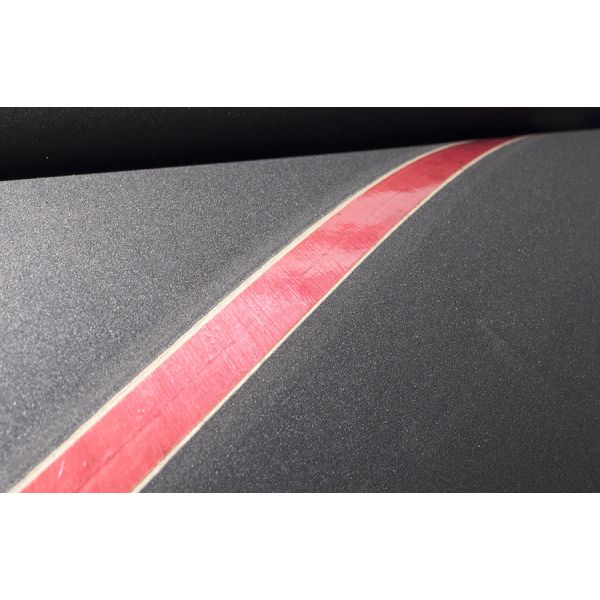

A strong bi-direction tape splice is used. Joint of WEEM 3128 segmented belt offer 2 types of joints.


Tap on gain line joint: Zirconia Segmented Belt / Custom as default.


Tap on butt line joint: Zirconia Segmented Belt / Custom




Applications:


Woodworking / MDF / HDF / OSD / Partial board / Chip board



Specifications:


Backing:

Yy weight polyester; waterproof cloth backing

Treatments:

Anti-static

Coated:

Close coated

Bond:

Resin over resin

Grain:

Zirconia Aluminum

Grit:

P40~P100

Width:

1828mm/72” ~ 3300mm/130”

Length:

Customer specific



Competitive Advantage:


It is made for wide belt sander, such as: Steinemann, Imeas, Sofuma etc. it offer great performance and durable with heavy duty grinding and sanding needs.
