Specifications
Brand Name :
Renchun
Model Number :
HWJ200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/P, T/T, Western Union, MoneyGram, D/A, L/C
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
20 sets per year
Filter Rating :
98% Screen Open Rate
Thickness :
Wedge Wire Thick 2mm
Cartridge Flange Size: :
OD150mm
Colour :
As Requirement
Length :
8700mm
width :
2500mm
Height :
2300mm
Voltage :
50/60Hz
Description

Full Automatic Wire Mesh Manufacturing Machine 2MM Thickness With Rolls

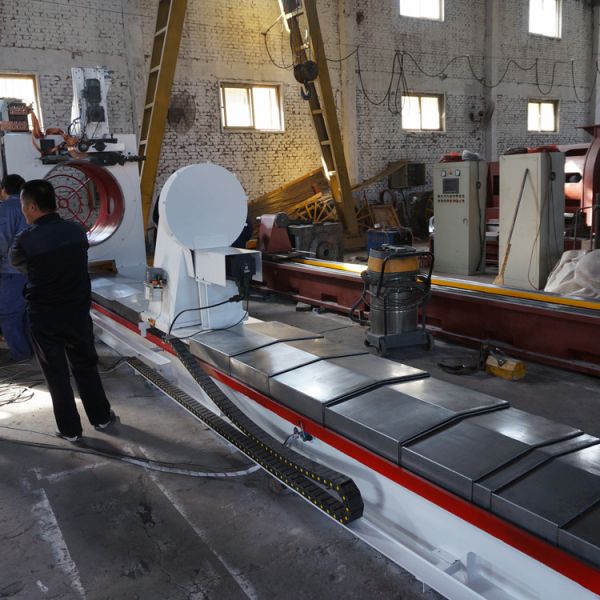

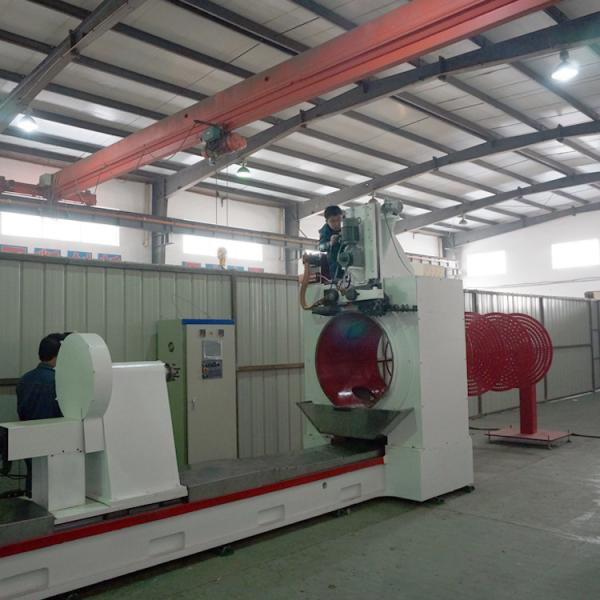

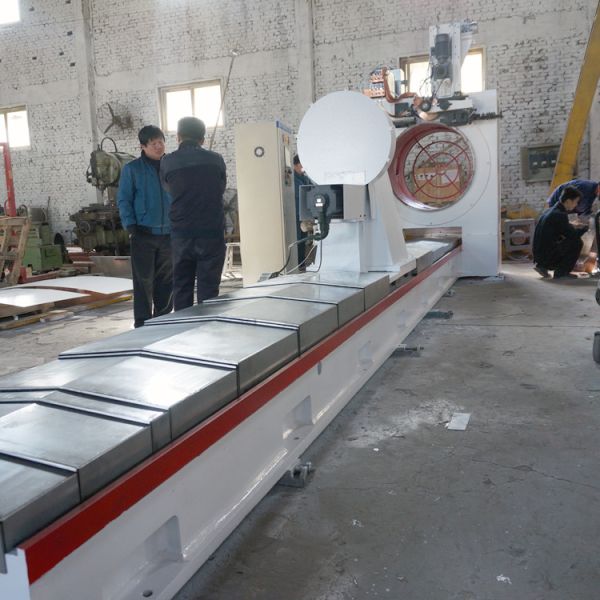

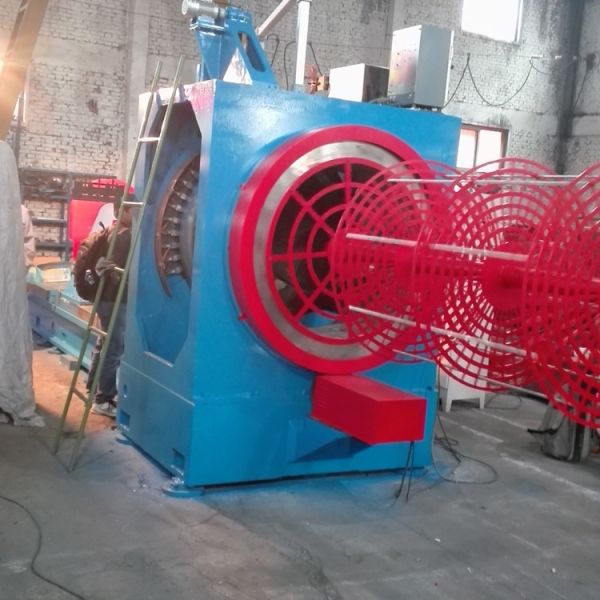

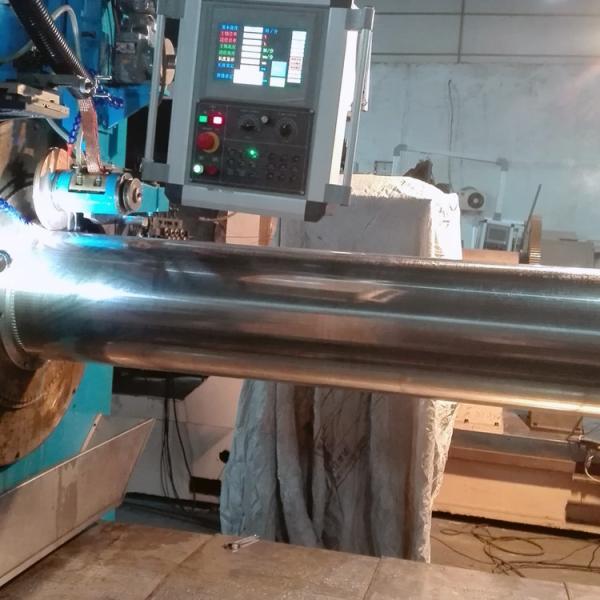

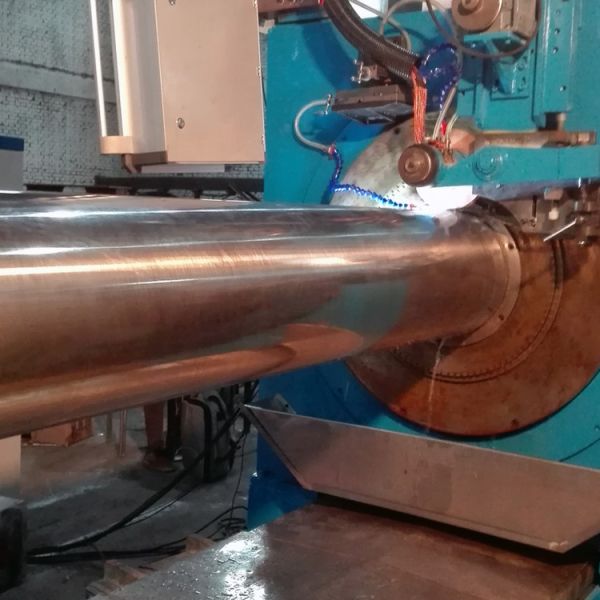

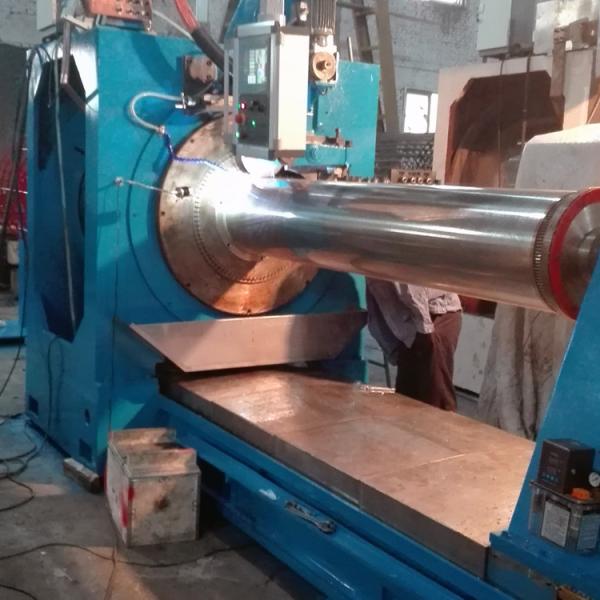

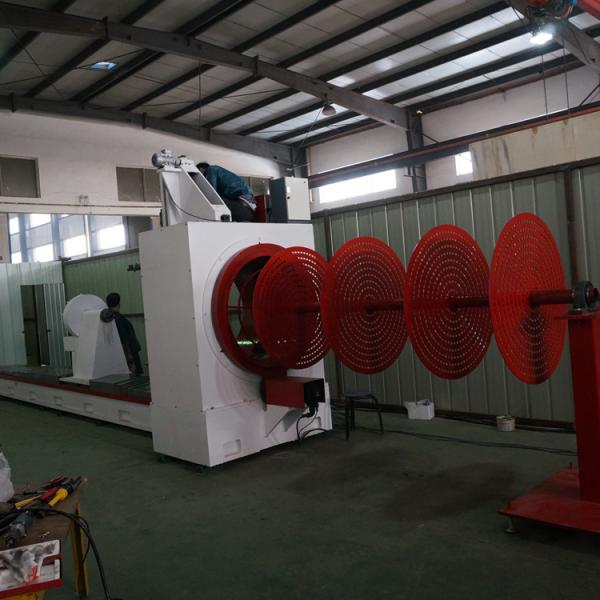

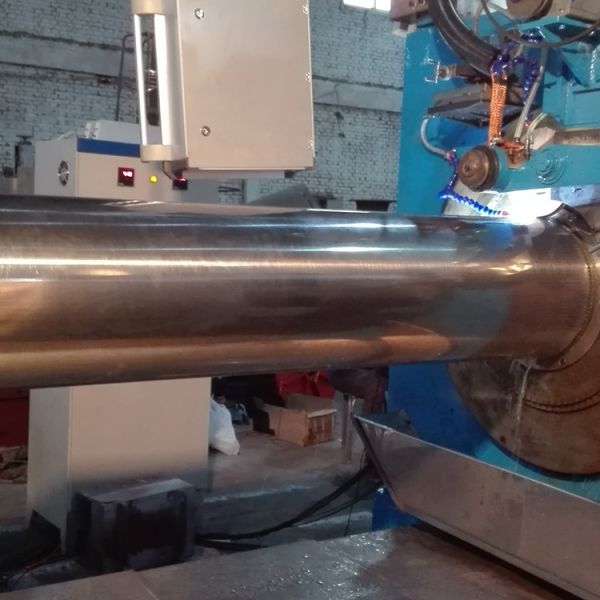

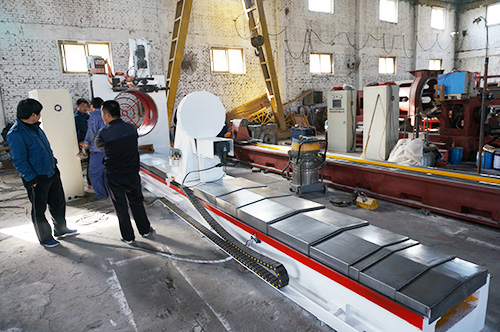

Stainless steel wedge wire screen welding machine

Material: Stainless steel wire(2-5mm) and low carbon steel wire(2-5mm)

Technical Parameters:

1. Wedged wire screen diameter range: 400-1200mm

2. Wedged wire screen length: max 4m

3. Slot (aperture)/Space between welding lines: 0.25-16mm

4. Welding precision: if the wire diameter tolerance is within 0.01mm, welding precision will be within +/-0.04mm.

5. Welding speed:6-30r/m adjustable based on tube diameter.

6. Welding transformer power:AC100KW

7. Driving motor power: servo motor(one 3kw, one 2kw)

8. Voltage:3 phase 380V 50 Hz 0r according to customers’ requirements

9. Dimension:11*2.1*3.8m

10. Weight:13Ton

1

Diameter of screen tube

Max.200mm,Min.50mm

2

Max. Length of filter tube

4000-6000mm

3

Rod and wire diameter

0.75mm to 1.5mm(profile wire)

4

Material

Carbon steel, stainless steel

5

servo motor

Three sets:2.5KW

6

Power of welding transformer

200KVA

7

Welding speed is adjustable according to the tube diameter

Max.40rpm,Min6rpm

8

Slot(adjustable)

Min0.08,Max.5mm

9

precision of slot

±0.02mm

Auxiliary Equipments:

1. V-wire rolling machine

2. Wire coiling machine

3. Wire straightening and cutting machine

Full Automatic Wire Mesh Manufacturing Machine 2MM Thickness With Rolls
