Specifications
Brand Name :
Renchun
Model Number :
HWJ200
Place of Origin :
Shijiazhuang
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/year
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Power(W) :
3KW
Pilot Arc Current :
10
Pulse Frequency :
2
Colour :
As requirement
Screen tube diamter :
50-200mm
Sccreen tube length :
2000mm
Slot :
0.05-15mm
Motor :
Mitsubishi servo motor
Description

Wire Mesh Manufacturing Machine , Slotted Screen Automatic Spot Welding Machine

1. Description

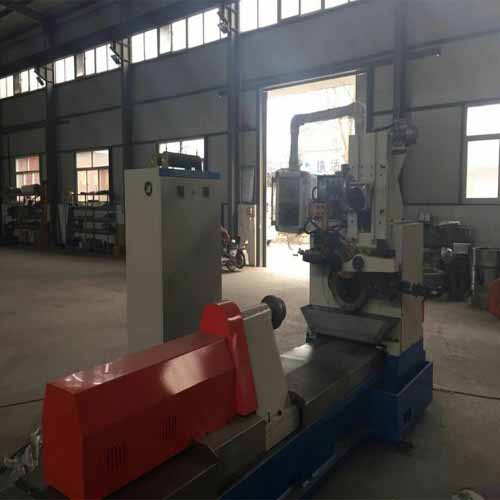

The machine is combined by CD61100 lathe,welding control cabinet, transformer roller and wire press unit. It has strongpoint of standard welding slot distance.

Slotted Cylinder Screen Welding Machine is named by the products.The machines can be called wedge wire screen welding machine, johnson screen welding machine, NC stainless steel screen welding machine, wire screen machine, water well screen welding machine, wrapped wire screen welding machine etc.


Slotted Screen Welding Machine adopt resistance welding fundamental.

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped with the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

It saves time and material during unload the filter tube.It is easy to learn how to control the machine.


2. Applications

Slotted Cylinder Screen Welding Machine (wrap wire screen machine), also named johnson screen welding machine, is usually used in producing small diameter screen tube, with its higher precision, which is widely used in Chemicals, sugar, micro filter applications.

3. Parameter

1Diameter of screen tubeMax.200mm, Min.50mm
2Max. Length of filter tube2000mm
3Rod and wire diameter0.75mm to 1.5mm(profile wire)
4MaterialCarbon steel, stainless steel
5servo motorThree sets:2.5KW
6Power of welding transformer200KVA
7Welding speed is adjustable according to the tube diameterMax.30rpm,6rpm
8Slot(adjustable)Min0.05mm,Max.5mm
9precision of slot±0.02mm

4. Features and Advantages

A. low noise
B. less power consumption
C. safety
D. easy to operate
E. high welding precision

Advantages: Domestic famous bearings, Internal famous servo motor, less power consumption,easily operation
