Specifications
Brand Name :
Renchun
Model Number :
HWJ200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/P, T/T, Western Union, MoneyGram, D/A, L/C
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Supply Ability :
20 sets per year
ITEM :
Wedge Wire Screen
Support Rod :
Q25
Profile Wire :
12S 1*2mm
width :
2500mm
Height :
2300mm
Voltage :
50/60Hz
Material :
316L
Wire Shape :
Wedge Wire
Description

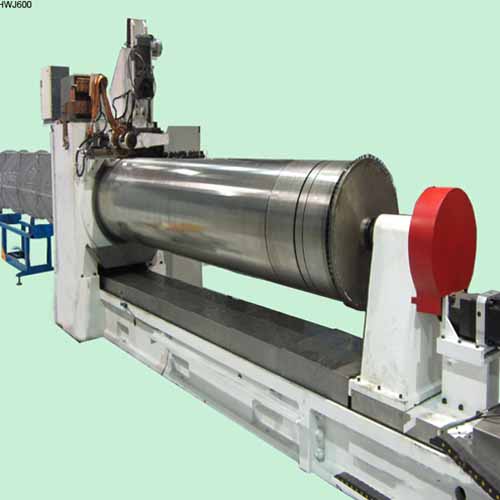

50Hz / 60Hz SS Wire Mesh Slotted Screen Welding Machine Q25 Support Rod

Main Parameter:

Wire diameter:26~200mm(Through V-shaped wire machine to flat,round,triangle and ladder.
Slot distance: 0.05-16mm
≥0.7mm---the diameter of sieve 400~600mm
≥1.0mm---the diameter of sieve600~1200mm
The diameter of the canister: 30~1200mm
The length of the canister: ≤6m
Rated voltage:380V; 50Hz; 3Phase(according to the customers’ requirement)
Size:9.6m*1.2m*2.3m(L*W*H)
Weight: 9T

Accessorial parts: electric control cabinet; V-shaped wire machine; wire line rolling machine

Wire wheels; wire straightening and cutting machine; flatten mesh machine

Plasma flame cutting machine

Characteristics:

The machine is combined by CD61100 lathe, welding control cabinet, transformer roller and wire press unit. It has strongpoint of standard welding slot distance.

Usage:

welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.

.50Hz / 60Hz SS Wire Mesh Slotted Screen Welding Machine Q25 Support Rod
