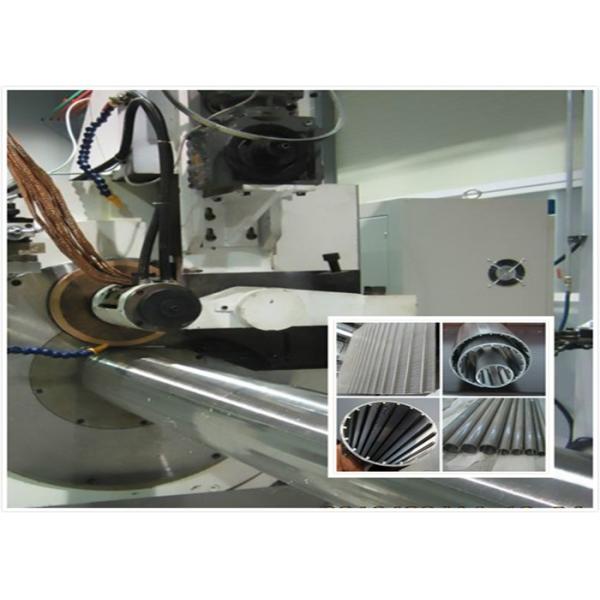

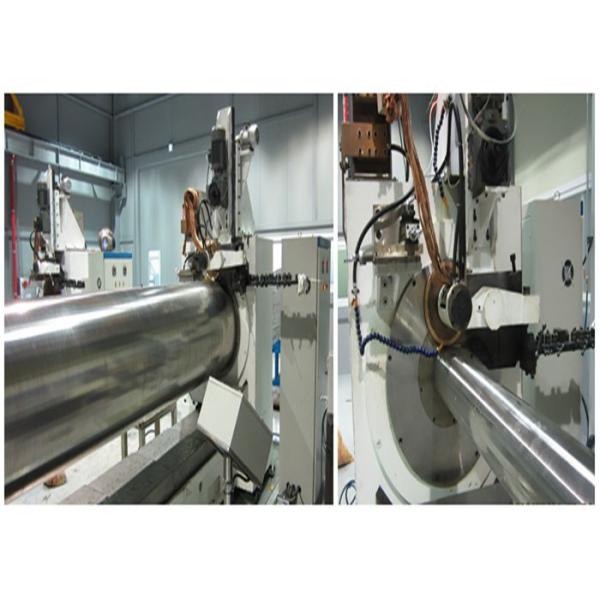

Sand Control Cylindrical Stainless Steel Wire Screen Welding Machine 6 RPM - 30 RPM​


The machine tube is intended for manufacturing of wedge wire screens in length up to 6000mm. The strengh,precision and design flexibility make it the choice in a broad range of industries and applications.


Wedge wire screens characters

• Wedge wire cylindrical screen has continuous slot, maximizingflow area and so increasing operating efficiencies and reducing downtime.
• High strength: Precion-welded at each rod and wire intersection for superior strength.
• Plug-resistant: with an inwardly enlarging slot, particles are far less prone to plugging as compared to plate and mesh combinations.
• Increased production: With an continuous slot design, screen open area is maximized for reduced head loss and greater efficiency and throughput in media retention and filtration applications.
• Wedge wire screens are highly durable, long-lasting option for critical screening tasks owing to its rigid and high-strength design.

The equipment with high precision and good round in application.


Parameters for Wedge Wire Screen Welding Machine

The electric system adopts Mitsubishi E60.Slot clearance can be adjusted as requirements.
The data displayed on the screen can be reset easily.
Lock-expanding ring is equipped on the machine.
After the operator feeds the longitudinal wire,expand and lock the wire with the ring.
I t saves time and material during unload the filter tube.
The machines are ideal for making filter tubes of oil filtering,water cleaning and water well filtering,mine
mesh,medical and chemical filters.

Our services

• We offer perfect pre-sale and after-sale services.
• Enquiry,consulting and equipment testing support.
• Train operators for free at factory.
• Engineers available to service machinery overseas.

Main Features

• Machine body in casting improve structure stability .
• Adopting advanced world famous brand components in ball screw and linear guide .
• High pressure double crank to control the die opening and closing.
• Running in a Mitsubishi control system ensuring system stability,clear guidance,easy operation.
• Apply a Humanized design, which can remote control the limited ball screw move back and forth, with improvement of the cantilever type control panel

Machine features

• Low noise
• Low energy consumption
• Safety
• Steady function

We satisfy our clients by the perfect design,new technology,practical function and easy operation. We have obtained the patent for our technology. Contact us now for your equipment needs!

Our principle

• Quality first
• Keep credit
• Reasonable price
• Delivery in time
• Mutual benefit
