Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Supply Ability :
50 sets per year
Machine welding type :
Sand Control Screen Cylindrical Screen
Filter tube length :
4000MM to 6000mm
Application :
Sand control oil screen seperation
Color :
Blue / Red / White / Yellolw as requirements
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption,safe
Precision :
0.02mm
Description

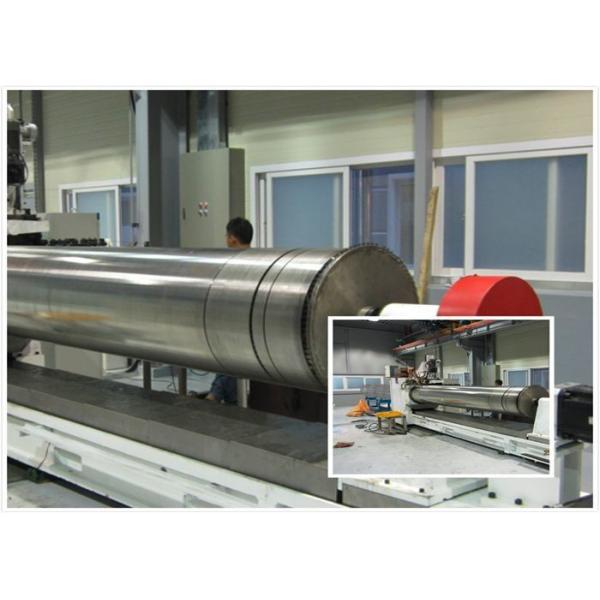

Sand Control Cylindrical Stainless Steel Wire Screen Welding Machine Low noise​

Item : HWJ 600 Wire screen welding machine

Material : stailess steel or carbon steel

Length :11000mm

Width :1100mm

Height :27000mm

Material: stainless steel or carbon steel

Control system: automatic NC control Mitsubishi from Japan

Liner guide and ball screw:Taiwan brand

Slot : 0.05mm to 20mm adjustable

Parameters for Wedge Wire Screen Welding Machine

Item name Sand Control Screen Cylindrical Screen Filter Tube Screen Welding Machine Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.1mm-20mm Slot precision ±0.03mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin


Characteristics

  • Low noise
  • Low energy consumption
  • Safety
  • Steady function

The slot clearance can be adjusted as requirement.
The data displayed on the screen can be reset easily.
Lock-expanding ring is equipped on the machine.
After the operator feeds the longitudinal wire,expand and lock the wire with the ring.
I t saves time and material during unload the filter tube.


Our services

  • We offer perfect pre-sale and after-sale services.
  • Enquiry,consulting and equipment testing support.
  • Train operators for free at factory.
  • Engineers available to service machinery overseas.

Sand Control Cylindrical Stainless Steel Wire Screen Welding Machine Low noise


Other model types

HWJ1200 600-1200mm 4000mm 1.5*2.5-3.7*6 Carbon steel stainless steel Two 7.5kw motors one 5.5kw motor 200KVA 6-10rpm 0.2-16mm ±0.03mm
HWJ1000 300-1000mm 3000 or 4000mm 1.5*2.5-3.7*6 Carbon steel stainless steel Two 7.5kw motors one 5.5 kw motor 200KVA 6-20rpm 0.15-16mm ±0.03
HWJ850 200-850mm 3000 or 4000mm 1.5*2.5-3.2*5 Carbon steel stainless steel Two 7.5kw motors one 5.5 kw motor 200KVA 6-20rpm 0.15-16mm ±0.03
HWJ650 150-650mm 4000 or 6000mm 1.2*2-2.7*4 Carbon steel stainless steel Two 7.5kw motors one 5.5 kw motor 200KVA 6-30rpm 0.15-16mm ±0.03
HWJ300 50-300mm 4000 or 6000mm 1.0*1.5-2.7*3 Carbon steel stainless steel Two 7.5kw motors one 5.5 kw motor 200KVA 6-40rpm 0.10-16mm ±0.02
HWJ200 26-200mm 2000*3000mm 0.75*1-2.2*2.5 Carbon steel stainless steel Two 7.5kw motors one 5.5 kw motor 200KVA 6-40rpm 0.08-16mm ±0.02



Our company

Shijiazhuang Renchun Mesh Equipment Co.,Ltd.(primitive name -Hebei Zhengda Machinery company) is a professional manufacturer which is specialized in product developing, designing and machine manufacturing .
With higher researching and developing ability of parent company(Shijiazhuang bearing equipment co., LTD.),We have designed wedge wire screen welding machine.

We satisfy our clients by the perfect design,new technology,practical function and easy operation. Best service for you. Welcome to contact us!
