Specifications
Brand Name :
Renchun
Model Number :
HWJ600
Place of Origin :
China
MOQ :
one set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
30-90 days
Packaging Details :
Touch screen and control cabinet packed in wooden box.;The mechanical parts bared in container
Supply Ability :
50 sets per year
Wire type :
Stainless Steel Wire
Aperture :
0.05mm to 20mm
Application :
Water well screen
Color :
Blue / Red / White / Yellolw as requirements
Electric system :
Mitsubishi E60 control system
Feature :
Low noise,low energy consumption,safe
Wire range :
1.2*2mm-2.7*4mm
Description

Gas Wells Slotted 304 / 316 Wedge Wire Screen Machine Low Energy Consumption​

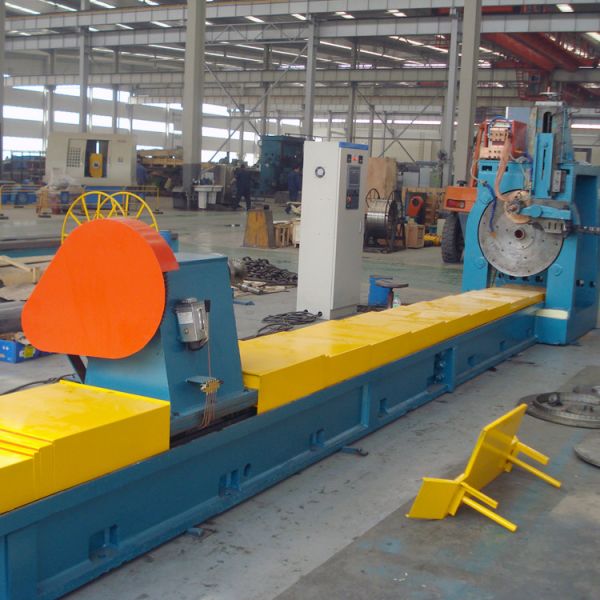

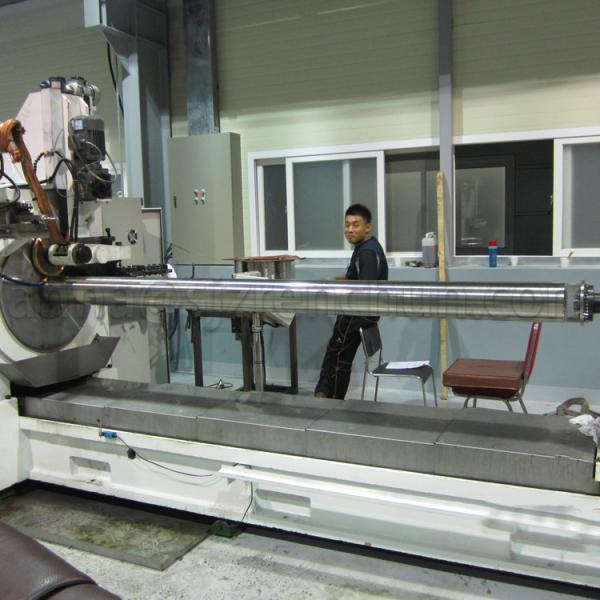

The equipment running steady and perfect to producing the profile wire screen pipe in good surface finish and roundness with high precision. Wedge wire screen consist of profile wire and support rods with the materials of galvanized steel, low carbon steel and stainless steel 304, 316.

Main products

Vee slot screens, Sieve plates, Wedge filters, Wedge wire mesh, Water filters, Johnson screens, Drum screens, Sieve mesh, Sieve bends, Wedge wire screen, Steel gratings, Sifter plate, Filter cartridge, Centrifuge baskets etc.

The machine tube is intended for manufacturing of wedge wire screens in length up to 6000mm. The strengh,precision and design flexibility make it the choice in a broad range of industries and applications.

Applications of filter stainless steel wedge wire screens

Oil and gas wells, Chemical, Mining, Papermaking, Industrial fluids, Environmental protection, Food industry, Sand control, Metallurgy, Decoration, Water treatment etc.
The machines are ideal for making filter tubes of oil filtering,water cleaning and water well filtering,mine
mesh,medical and chemical filters.

Parameters for Stainless Steel Wire Screen Slotted Wedge Wire Screen Welding Machine For Filter

Item name Stainless Steel Wire Screen Slotted Wedge Wire Screen Welding Machine For Filter Filter tube diameter 100mm-650mm
Rod and wire diameter 1.2mm-5mm Filter tube Max length 6000mm
Material stainless steel;carbon steel Mitsubishi double drive servo motor 7kw two sets;5.5 one set
Welding transformer power 200 KVA Welding speed 6-30 rpm
Slot (ajustable) 0.1mm-20mm Slot precision ±0.03mm
Application water well screen manufacturing Model number HWJ600
Origin Hebei ,China Sea port Tianjin



Our services

  • We offer perfect pre-sale and after-sale services.
  • Enquiry,consulting and equipment testing support.
  • Train operators for free at factory.
  • Engineers available to service machinery overseas.


Equipment details

1. Exported to North africa,Russia,Korea,France,Italy,Malaysia,Taiwan, etc,
2. Feature:low noise,low energy consumption,steady function and safety , environment protection .
3. Professional wedge wire screen/wire wrapped screen welding machine manufacture
4. Electric system adopts Mitsubishi from Japan .
5. The feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drives .

Characteristics

  • Low noise
  • Low energy consumption
  • Safety
  • Steady function

Gas Wells Slotted 304 / 316 Wedge Wire Screen Machine Low Energy Consumption
