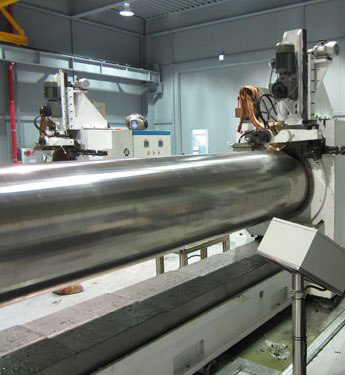

High Precision Wire Mesh Welding Machine 10-200 A Arc Current For Wedge Wire Screen Cylinders
High Precision Wire Mesh Welding Machine 10-200 A Arc Current For Wedge Wire Screen Cylinders
High Precision Wire Mesh Welding Machine 10-200 A Arc Current For Wedge Wire Screen Cylinders
High Precision Wire Mesh Welding Machine 10-200 A Arc Current For Wedge Wire Screen Cylinders
Specifications
Brand Name :
Renchun
Model Number :
HWJ200
Place of Origin :
China
MOQ :
1 set
Payment Terms :
D/P, T/T, Western Union, MoneyGram, D/A, L/C
Delivery Time :
30-90 days
Packaging Details :
1.The mechanical parts bared in container 2.Touch screen and control cabinet packed in wooden box.
Colour :
As Requirement
width :
2500mm
Voltage :
380V
Warranty :
One Year
Motor Type :
Other
Arc Current :
10-200A
Usage :
Welding Wedge Wire,wrap Wire,water Well Screen
Description

High Precision Wire Mesh Welding Machine 10-200 A Arc Current For Wedge Wire Screen Cylinders

1 Cylinder screen welding machine high precision from renchun factory description

Do you know Wire Screen Welding Machine ?

Regarding to the Wedge Wire Screen, we believe many people have good knowledge of this kind products.

At present ,basing on the Wedge Wire Screen good features(Fine slot size ,high filtering precision, firm structure, high temperature and corrosion resistance), Wedge Wire Screen almost instead of bridge screen,slotted screen and others.

Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: RENCHUN
  • Model Number: SS-HWJ Filter Screen Mesh
  • Usage: Liquid Filter
  • Type: Filter Cylinder
  • Material: stainless steel
  • Hole Shape: Square
  • Filter Rating: 98%
  • Thickness: Cunstomized
  • Length: 6000mm
  • Width: Cunstomized
  • Filter screen dimeter: 30-1200mm
  • Filter screen length: 6000mm
  • precision: ±0.05mm
  • Slot size: 0.1~16mm

Professional Factory Automatic Machinery Wedge Wire Cylindrical Screen Welded Wire Mesh Machine?

Wedge Wire Screen welding equipment adopts Japanese Mitsubishi E60 CNC control system.

Controlled by the Numeral control system, the servo motor drives the ball screw as well as the drawing disk which is mounted on the straight rail, so the slot clearance can be adjusted by touching the control screen without stopping the machine.

It is easy to change the data on the touching screen. Lock-expanding ring is equipped on the machine. After the operator feeds the longitudinal wire, expand and lock the wire with the ring.

2.Cylinder screen welding machine high precision from renchun factory

1 Diameter of screen tube Max.200mm,Min.50mm
2 Max. Length of filter tube 4000-6000mm
3 Rod and wire diameter 0.75mm to 1.5mm(profile wire)
4 Material Carbon steel, stainless steel
5 servo motor Three sets:2.5KW
6 Power of welding transformer 200KVA
7 Welding speed is adjustable according to the tube diameter Max.40rpm,Min6rpm
8 Slot(adjustable) Min0.08,Max.5mm
9 precision of slot ±0.02mm

3. Our customer

HWJ200 wedged wire screen welding machine With Double Bearings

Sale market:

　　Domestic market: Heilongjiang , Liaoning, Tianjin, Hebei, Henan, Shandong, Shanghai, Guizhou, Hubei, Shanxi, jiangsu, etc.

　　Foreign market: the United States, Brazil, Italy, Belgium, South Korea, Singapore, Tunisia, Turkey, Russia, India, etc.

　　Enterprise development concept and service

　　friendly cooperation

　　development and innovation,

　　mutual benefit

4. Features and advantages

A. low noise

B. less power consumption

C. safety

D. easy to operate

E. high welding precision

Pre-Sales Service

* Inquiry and consulting support.* Sample testing support.* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

5. Packing and loading

1. The mechanical parts bared in container

2. Touch screen and control cabinet packed in wooden box.
