CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical
CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical
CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical
CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical
Specifications
Brand Name :
STD Filter
Model Number :
STD WSF 004
Certification :
CE，ISO9001
Place of Origin :
Hebei,CN
MOQ :
1
Price :
$50-500 /pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1 pcs per day,
Delivery Time :
7 days or customized time
Packaging Details :
plastic in wooden package or standard export package
shape :
bend,panel,round
Color :
SS silver
Length :
up to 2 meters or as required
width :
up to 1 meter or customized
diameter :
1 meter or customized
Feature :
high resistance corrosion and precision
Material :
Stainless Steel
Type :
Filter Element
Usage :
Filtration
Application :
waste water filtration
Filter rating :
99%
Slot size :
0.1-6.0 mm
Description

Stainless Steel Silver Customized 0.02 mm Wedge Screen Filter For Petrochemical & Refining

Materials:

The products is high precision.It can customized to 0.02mm if you need.The stainless steel is also a perfect material.It is high rigidity and asistance corrosion.It is suitable for the petrochemical and refining.

Product Name Stainless Steel Silver Customized 0.02 Mm Wedge Wire Filter For Petrochemical & Refining
Material stainless steel
Color silver white
Standard DIN GB ISO API
Grade SS201 , SS304 , SS304L , SS316 , SS316L
Brade STD Filter
Thread smooth, fine
Used screening,filter
Slot size 0.1-3mm, opening area up to 60%
length 6m Length up to 6m
Diameter range from 25 to 1300mm
End connection flat and inclined face welding or threaded
Note

can be designed according to requirements

Characteristic:

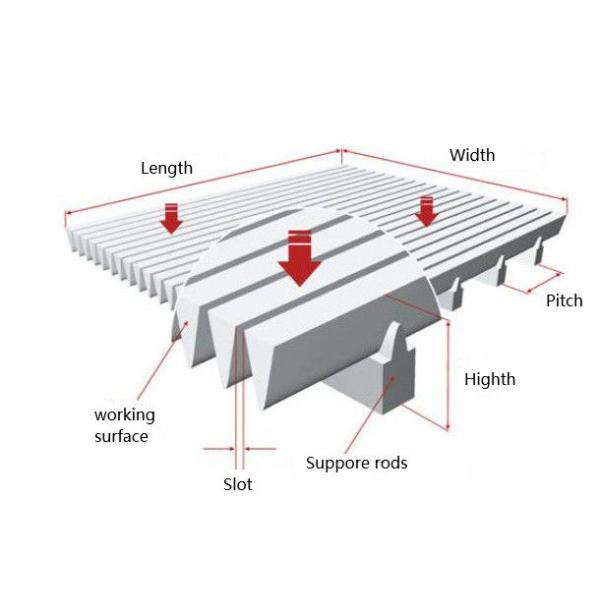

it has two parts:the wedge wire consisting the surface continuous,which being welded on the another part, the support rods.So it has the following characteristic:

Easy leakage, wear resistance, corrosion resistance. The mesh cross section is a trapezoid, narrow width of the gap, have a wire made of cold rolled stainless steel, this wire is support rods. The screen is uniform, the welding is stable, high hole rate, long service life, high strength, stiffness and bearing capacity of rigid, screening filter device can be made into various shapes.

CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical

Advantage

So smooth that it easy clean and backwash.high rigidity can work a long time and reducing the mantenance and replacment.All the surface is work surface,it has a high work efficiency.

Application:

1.Petrochemical & Refining

2.Industry filtration

3.koi pond

4.Drinking water pre-filter

5.Other liquid and solid seperation areas.

CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical

The details:

CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical

CE Certified High Precision 0.02 Mm Wedge Screen Filter For PetrochemicalCE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical

Packages

The package is standard export package or we can negotiate

CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical

The Delivery

CE Certified High Precision 0.02 Mm Wedge Screen Filter For Petrochemical
