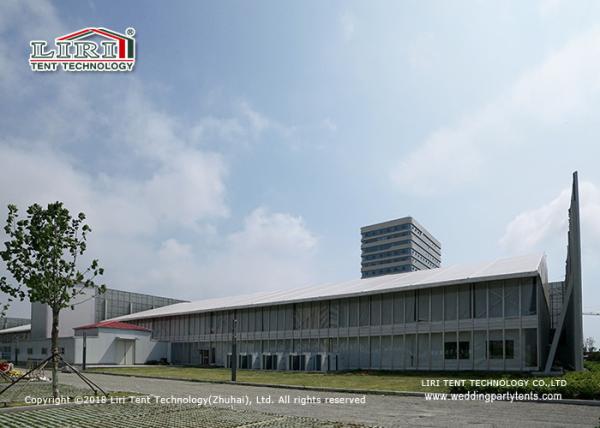

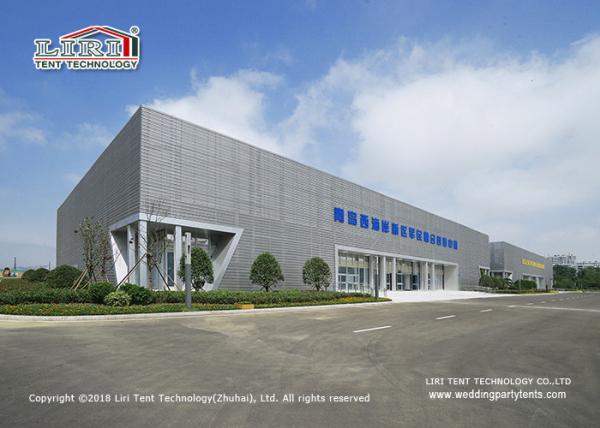

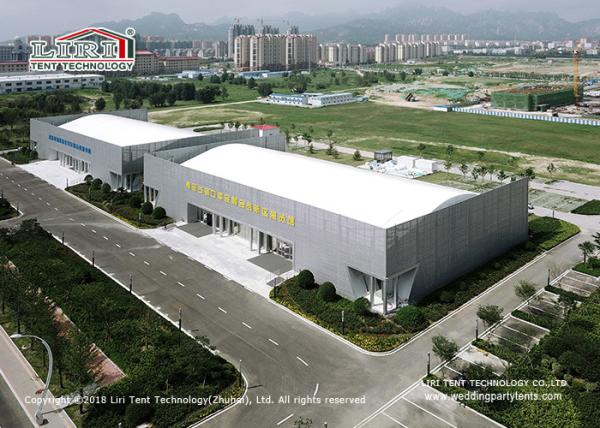

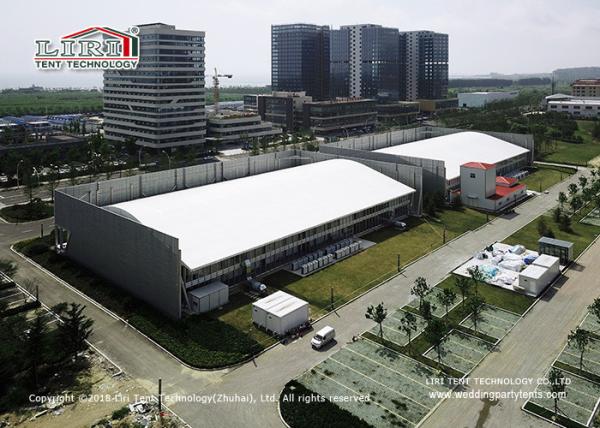

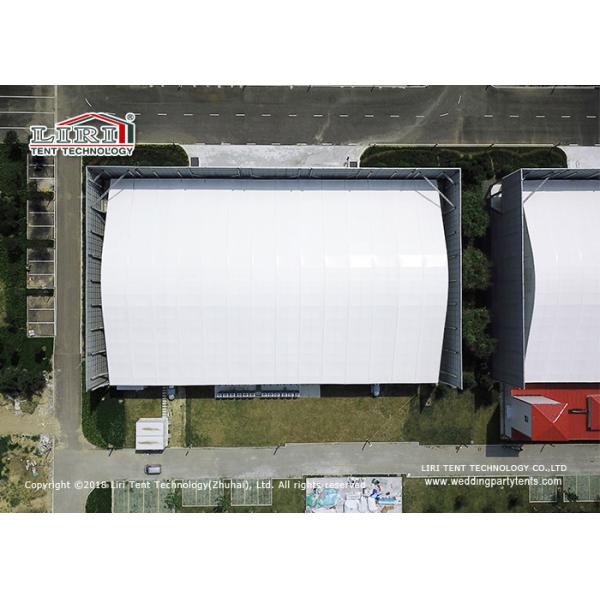

Luxurious White Arcum Tent With PVC Fabrice And Glass Walls For Exhibition

The Arcum Tent is composed of a high reinforced aluminum frame and PVC covers. Arcum tent is based on the “A” frame clear span tent design and reasonably absorbs the Chinese traditional architectural design elements. We pre-press the aluminum roof-beams so that it can become the curve shape.
The characteristics of the Arch Tent will include a good-looking structure with a beautiful roofline and a lot of space inside the tent. It will also give you a feeling of currency to use it for big tents, exhibitions, or for a temporary showroom.

Specifications:
Below chart shows the width range of the dome shape double decker tent with eave height and ridge height ranges, the length can be increased by 5m without limit.

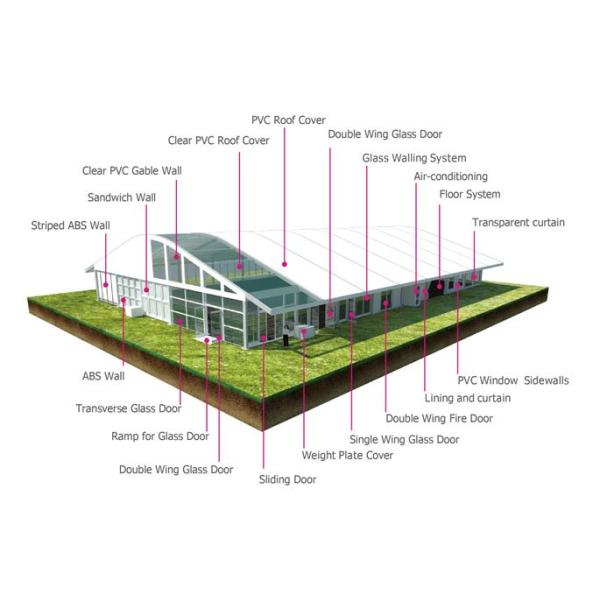

Optional Accessories

1. Covers: waterproof cover, colourful cover, inflatable roof cover

2. Wall: PVC fabric wall, glass wall, ABS hard wall, steel plate wall, sandwich panel wall
3. Windows: dome or square clear PVC windows, glass window for glass wall, mesh window,
4. Wooden Flooring System: VIP cassette flooring, simple cassette flooring
5. Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
6. Fixing Methods: ground anchors, weight plate, expandable bolts
7. Other Optional Items: chair, tabel, lighting, AC, carpet, installation tools etc.

Application:

Event, exhibition, warehouse, party, wedding, sport, ect.

Packaging

1. Aluminum frame packed in membrane film;

2. Hardware packed in solid carton box;

3. Roof and sidewall in professional PVC carry bag;

4.customized packing

Fxing Methods

1. If it is concrete ground , pls use the expandable bolts .
2. If it is termac ground or grass ground or sand ground or other soft grounds , pls use the steel anchors .
3. If it is marble or tile ground or other kind indestructible grounds , pls use the weight plates system ;
4. If you will make the concrete bases to fix the tent , pls use the embede bolts M 24 x 500 mm

Main Profile

Material: Hard pressed extruded aluminium 6082-T6, 6061/T6

Features: Stainless

Cover

Material: Double PVC-coated polyester textile, 750g-900g/m²

Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM,

UV resistant

Eave Connection Hot-dip Galvanized twin steel plate
Wind Loading 100km/hour
