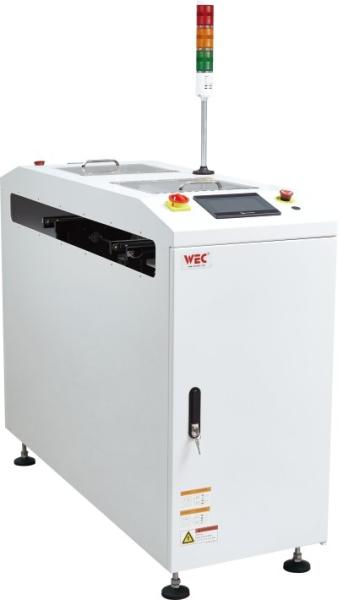

CE 1.2M PCB Shuttle Conveyor For SMT Production Line
CE 1.2M PCB Shuttle Conveyor For SMT Production Line
Specifications
Brand Name :
WEC
Model Number :
PC-460E-STB1200
Certification :
CE
Place of Origin :
Made In China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
500/pcs/1years
Delivery Time :
20-30 days
Packaging Details :
Carton Box
Material :
Sheet metal
Structure :
Belt Conveyor,Chain Conveyor
Warranty :
1 Year
Pcb width :
custom pcb design,50-460mm
Pcb direction :
L to R or R to L
Color :
PC color powder with spraying
Dimension(l*w*h) :
Customized Size
Description

SMT PCB 1.2M Shuttle Conveyor

Main Function:

  • Used in SMT when the front and rear machine rail edge not in the same line,as linking funtion.
  • Used to combine two SMT production lines into one,or makes one line separated to two lines.


Main Specification:

Machine size (L)600x(W)1200x(H)1100mm
PCB size custom pcb design,50*50～460*460mm.
Trasnport direction Front rail fixed,transport from left to right.
Transport rail load weight Under (2KG)
Inspection station Build with 150mm width workstation on front of the rail.
Framework 1.5mm sheet metal welded, with PC gray color powder on the surface.
Shuttle system: Step motor and Synchronous belt with T type rail,translation trip is 550mm.
SMEMA Standard SMEMA


PCB size: 250mm
PCB size: 330mm
PCB Size: 390mm
PCB Size: 460mm



CE 1.2M PCB Shuttle Conveyor For SMT Production Line



FAQ:

1.Q:Do you have warranty for this machine?
A:Warranty:1 year from date of delivery
2.Q:Who should I look for if I have after-sales problems?
A:We have an experienced after-sales team. I'm sure they can help you solve after-sales problems

Global Service:


For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

Product packing:

Our products are vacuum packed in non-fumigation wooden boxes

CE 1.2M PCB Shuttle Conveyor For SMT Production Line
