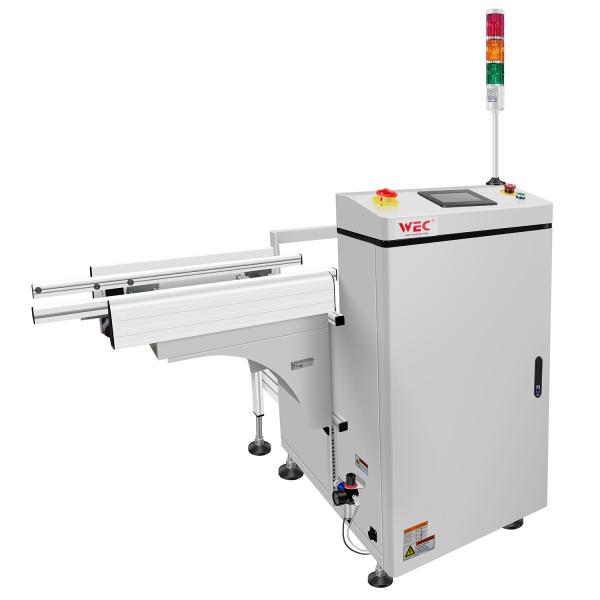

WEC Single Magazine 390 PCB Unloader Machine Easy Operation
WEC Single Magazine 390 PCB Unloader Machine Easy Operation
WEC Single Magazine 390 PCB Unloader Machine Easy Operation
WEC Single Magazine 390 PCB Unloader Machine Easy Operation
Specifications
Brand Name :
WEC
Model Number :
UL-390E-MT
Certification :
CE
Place of Origin :
Made In China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000pcs per year
Delivery Time :
20~30days
Packaging Details :
wooden box
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support
Material :
Aluminium, Stainless Steel, plate
Voltage :
220V, 110V
Warranty :
1 year
Type :
SMT PCB handling equipments
Description

WEC Single Magazine 390 Unloader

Main Function

  • Located in the end of SMT production line,collect and push PCBs to magazine one by one after received signal from upstream.
  • Magazine enter into to the rail from rear side.​

Main Specification:

Model No. UL-390E-OTB
Machine size (L)1460x(W)1350x(H)1200mm
PCB size 50*50～535*390mm
Transport direction front fixed, right to left.
Transport height 900+50/-20mm
Transport rail special alumnum rail,φ4.8mm green flat belt.
Transport weight Under(2KG)
Power AC220V/50-60HZ (single electronic box control)
Transport motor ZD 6W speed fixed motor.
Lift motor ZD 120W motor with brake
Control panel WEINVIEW touch screen.
Control system Omron PLC and Pannasonic sensors
Lift station TW ball screw,all in one sheet lift station.
Pusher cylinder SMC cylinder as PCB pusher, Paudima clamping cylinder.
Frameworks use 3.0mm cold sheet, with PC color powder on the surface.
Signal communication Standard SMEMA

FAQ

Q: What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: Why choose us?
A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.


Global Service


For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT

WEC Single Magazine 390 PCB Unloader Machine Easy Operation

Packing method:

The packing method of our product is vacuum wooden box as below details.

WEC Single Magazine 390 PCB Unloader Machine Easy Operation
