3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
Specifications
Brand Name :
WORLD
Model Number :
WEA40-4
Certification :
Provided
Place of Origin :
China
MOQ :
1 set
Price :
10000-90000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 set/month
Delivery Time :
30 days
Packaging Details :
nude
Applicable Industries :
Building Material Shops
Power Source :
Diesel Engine
Overall Dimensions :
6298*2440*2790mm
Fork Length :
1200mm
Fork Width :
150mm
Engine Model :
QSB4.5-C160-30
Loading Capacity :
4000kg
Max. Lift Height :
1500mm open legs
Max.Out-reach Distance :
10500mm
Load Capacity Max.Forward Reach :
800kg
Min.Fround Clearance :
400mm
Min.Turning Radius Outer Tire Center :
5500mm
Operating Weight :
14000kg
Description

Product Overview

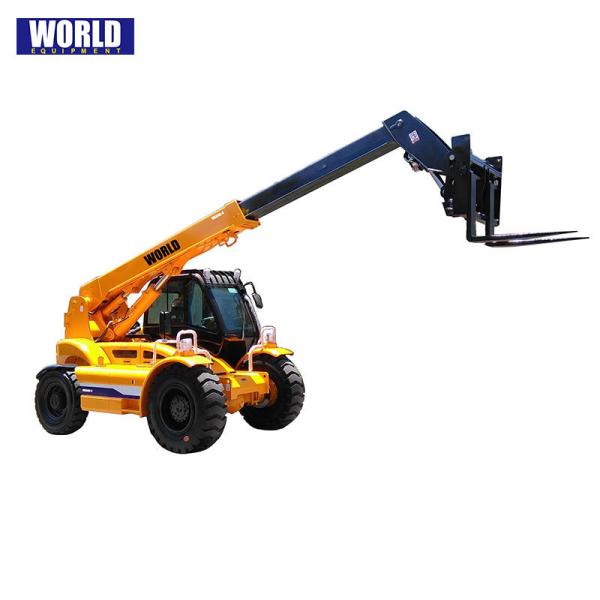

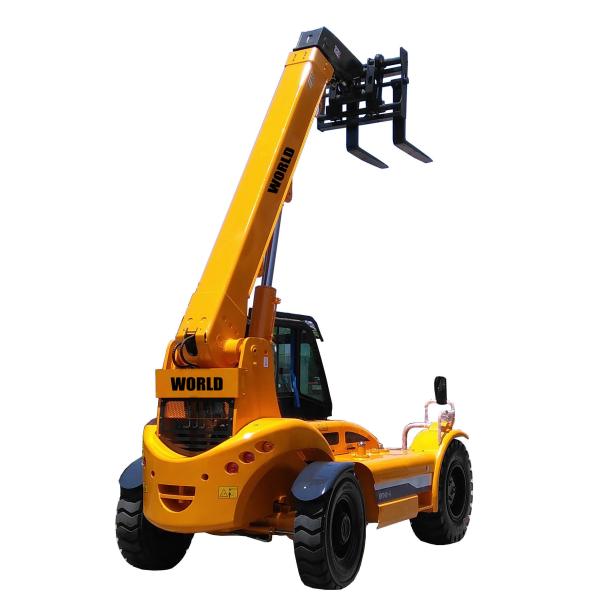

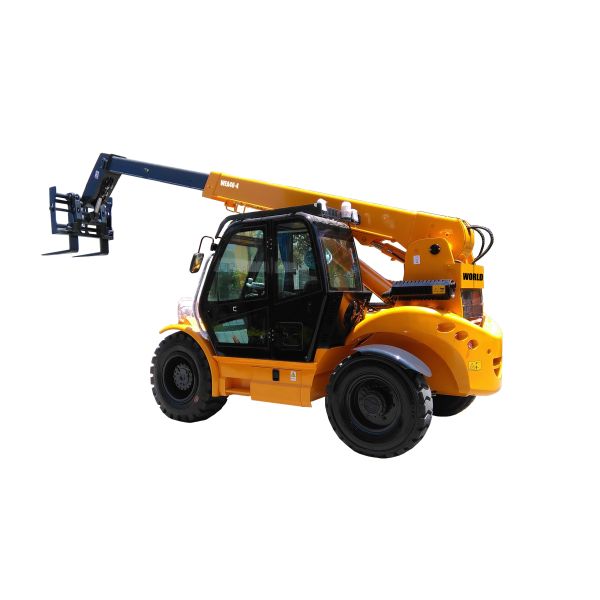

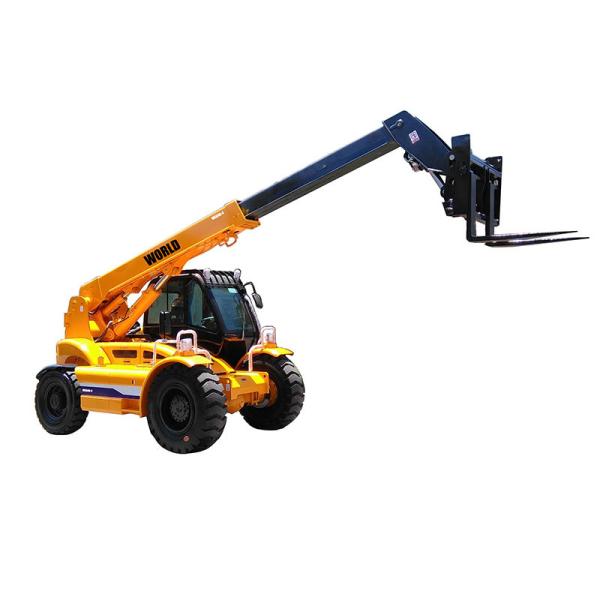

WEA40-4 Telescopic Forklift

  • comes with four-wheel drive and rigid suspension.
  • hydraulic mechanical drive, hydraulic power steering and hydraulic brake, rear-wheel steering.
  • the two-stage quadrilateral telescopic boom serves as the working unit. A regular lift truck is equipped with a fork or a boom.
  • the lift truck is applicable to the unstuffing and casingof pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety of packaged goods.

3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler

Product Specification

Item
Specification
WEA40-4
1
Basic Parameter
Max.Lifting Height (without outriggers)
15m
2
Rated load Carrying Capacity
4000 kg
3
Max Out-Reach distance
10.5m
4
Load Capacity@ Max. Forward Reach
800kg
5
Loader Center
600mm
6
Operating weight
14000 kg
7
Max.Travelling speed (unloaded)
25km/h
8
Max. Lifting height
7000 mm
9
Engine
Engine Model
DF Cummins QSB4.5-C160-30
10
Rated power
119/2200 kw/rpm
11
Torque
Diesel
12
Emission Level
National III
13
Intake Cooling
Charge Air Cooling System
14
Transmission System
Transmission
Hydraulic static transmission
15
Hydraulic (high/low speed)
2/2
16
Transmission gear
Front 2/ rear 2
17
Gradeability
25% (4 wheel drive)
18
Traction
80kN
19
System capacity
Hydraulic Tank Capacity
250L
20
Fuel tank capacity
245L
21
Hydraulic system
Pressure
28 MPa
22
Flow
300 L/min
23
Steering system
Steering type
Load Sensing Full Hydraulic Steering
24
Pressure
16MPa
25
Rear axle steering type
Horizontal hydraulic cylinder type steering mechanism
26
Steering Angle
35°
27
Braking system
Service Brake
Caliper Disc Brake
28
Brake oil pressure
10MPa
29
Parking brake
Hydraulic disc brake
30
Main Dimension
Overall dimension (without fork)
6298*2440*2790 mm
31
Min. Ground clearance
400 mm
32
Min. Turning radius outer tire center
5500 mm
33
Boom Frame Upward Angle
70°
34
Boom Frame Downward Angle
-2°
35
Wheel Base
3070 mm
36
Front Tread
2100 mm
37
Rear Tread
2100mm
38
Fork Size(L*W*H)
1220*150*60mm
39
Telescopic Boom Changing angle range
-11°～60°
40
Standard Tires
Pneumatic Tire
Front 16/70-24-24PR
Rear 16/70-24-24PR

Package And Delivery

3T 4T Diesel Telescopic Handler Forklift Four Wheel Steering 7m 14m Telehandler
