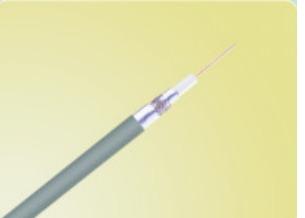

Tinned Copper Braid CAT LAN Cable 6.73mm RG59 Coaxial Cable
Tinned Copper Braid CAT LAN Cable 6.73mm RG59 Coaxial Cable
Tinned Copper Braid CAT LAN Cable 6.73mm RG59 Coaxial Cable
Tinned Copper Braid CAT LAN Cable 6.73mm RG59 Coaxial Cable
Specifications
Product Name :
tinned CAT LAN Cable
Features :
Solid bare copper conductor
Applications :
digital switchboard
OD :
6.73MM
Description

RG- Coaxial Cable

  • Copper clad steel or Solid bare copper conductor
  • Skin-Foamed-Skin PE insulation
  • Tinned or bare copper Braid
  • AL-Foil with AL braid or tinned copper braid shield
  • PVC Jacket

  • Typical structural parameters

    Type RG-58 RG-59 RG-6 RG-7 RG-11
    Cable OD(Φmm) 4.95 6.73 7.54 8.64 10.34
    WET(kg/bool) 95.3 103.45 52.7 93.5 134.3
    Electrical Performance
    Project Performance
    ZIN(Ω) 75±3
    Capacitance(pF/m) -
    Environmental Performance
    Project Performance
    Min. Bending Radius Static 8D
    Dynamic 15D
    Temperature Installation 0~50℃
    Rated －15℃~75℃
    Storage －15℃~75℃
    Others:
    Project Content
    Application Scope Used as digital switchboard and connecting photoelectric transmission equipment and exchanger with distributing frame
    Reference Standard USA MIL-C-17
