AAWG 100GHz Spacing Flat Top 36ch C20-C55 LC/UPC
AAWG 100GHz Spacing Flat Top 36ch C20-C55 LC/UPC
Specifications
Brand Name :
Wuhan ETERN Optoelectronics
Model Number :
AAWG-1F36-C20-0302024-MDM
Certification :
RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiable
Payment Terms :
T/T
Packaging Details :
Single item
Description

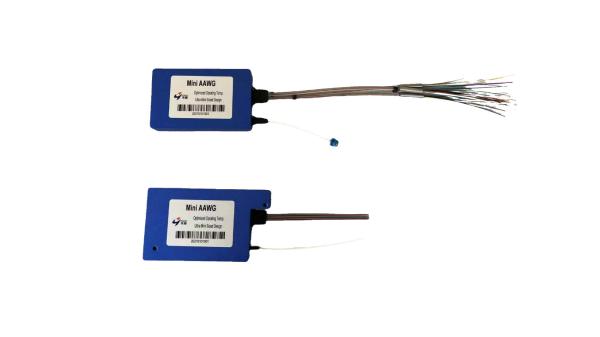

AAWG, 100GHz Spacing, Flat-Top, 36ch, C20-C55, LC/UPC

Description

ETERN Arrayed Waveguide Grating (AWG) is a cost-effective, high-performance DWDM Mux/Demux device operating on 100GHz channel spacing in the C and L band ITU grid, without any electrical power needed.

Etern AAWG offers low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. The products are Telcordia GR-1221-CORE and GR-1209-CORE qualified, and RoHS complaint.

Customer PN Manufacturing PN Product Code Notes
AAWG-1F36-C20-0302024-MDM AAWG, 100GHz Spacing, Flat-top, 36ch, C20-C55, LC/UPC
AAWG 100GHz Spacing Flat Top 36ch C20-C55 LC/UPC

Optic Specification

Parameters Unit Value
Channel Number 36
Channel Spacing GHz 100
Center Wavelength nm 1538.186 ~ 1561.419
Channel Frequency THz 192.0 ~195.5
Reference Passband nm ±0.1
Insertion Loss dB ≤5.5
Insertion Loss Uniformity dB ≤1.5
Passband Ripple dB ≤0.5
Bandwidth @1dB nm ≥ 0.4
@3dB ≥ 0.6
Isolation Adjacent Channels dB ≥25
Non-adjacent Channels ≥30
Total crosstalk dB ≥21
PDL dB ≤0.5
PMD ps ≤0.5
Return Loss dB ≥40
Chromatic Dispersion ps/nm ±20
Operating Temperature ℃ -5 to +65
Storage Temperature ℃ -40 to +85
1.1. Specified with connectors at room temperature.
Pigtail and connector type/length
Parameter Specifications Unit
Fiber Type SMF-28e With 600um Loose tube fiber(TBD)
Fiber Length Common Fiber 300(TBD) mm
Ribbon Fiber 200(TBD) mm
Fan-out 200(TBD) mm
Optical Adaptors (All port) LC/UPC
