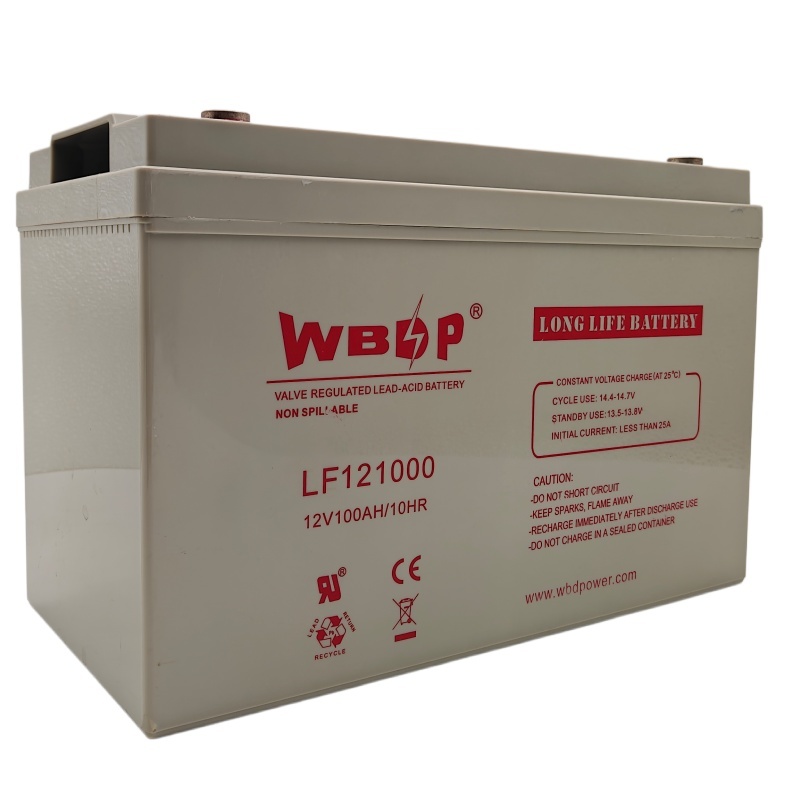

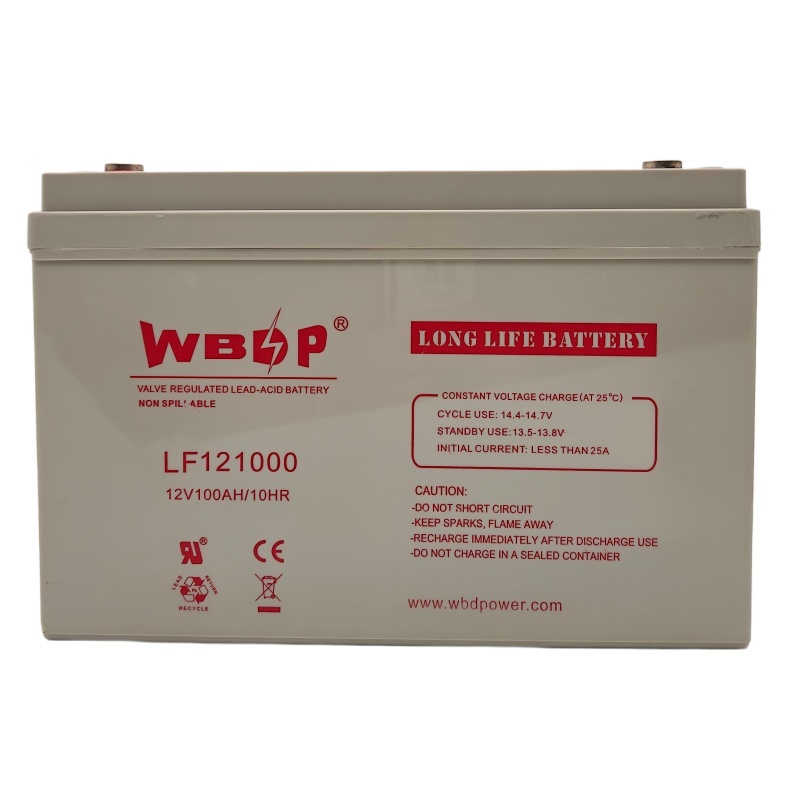

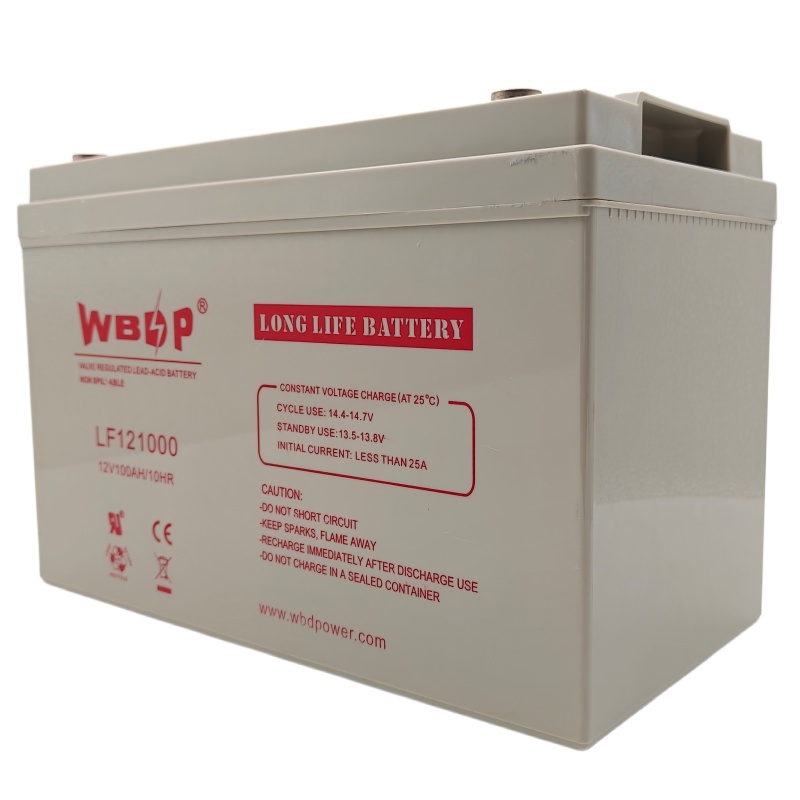

WBDP LF121000 is our flagship long-life series sealed valve-regulated lead-acid battery. Designed for heavy-duty, round-the-clock standby and cyclic energy storage, this 12V100Ah battery measures 328*172*222mm with a net weight of 32kg. It adopts advanced long-life alloy grid technology to extend floating service life significantly, making it the prime energy storage solution for large industrial UPS power systems, telecom base stations, data room backup power and off-grid energy storage projects. Trusted by global telecom operators, system integrators and power engineering contractors.

• Model: LF121000
• Rated Capacity & Voltage: 12V 100Ah (10-hour discharge rate)
• Outer Dimensions: 328 * 172 * 222 mm
• Net Weight: 32 kg
• Series: LF Long Life Series, Non-Spillable VRLA Battery
• Standard Charging Parameters (25°C Ambient Temperature)
  • Cycle charging voltage: 14.4 – 14.7 V
  • Float standby charging voltage: 13.5 – 13.8 V
  • Maximum initial charging current: ≤25 A
• Terminals: Thick copper screw terminals, support high-current series & parallel connection for battery banks
• Certifications: UL Recognized, CE, EU REACH SVHC compliant

1. Industry-Leading Long Service Life Design
   Specially formulated calcium-lead thick plate grid drastically slows corrosion and capacity attenuation. Delivers ultra-long floating standby life, perfectly matching 10+ year service cycle demands of telecom machine rooms and large UPS data centers, reducing frequent battery replacement costs for clients.
2. Non-Spillable Fully Sealed Maintenance-Free Construction
   Hermetic safety valve sealing structure locks electrolyte completely inside the housing. Zero risk of acid leakage, no regular water topping-up required. Safe for indoor cabinet stacking installation without corrosion to racks, circuit boards and communication equipment.
3. Stable High-Current Discharge for Heavy Loads
   Low internal resistance structure ensures steady large-current output during grid power outages. Supports full-load startup of high-capacity industrial UPS and uninterrupted signal transmission for telecom base stations, eliminating voltage drop risks to critical equipment.
4. Standardized Cabinet Size for System Integration
   Universal 328*172*222mm footprint fits most mainstream 100Ah battery racks for telecom and UPS systems. Easy series/parallel assembly to build large energy storage battery banks without custom cabinet modification.
5. Wide Temperature Adaptability & Low Self-Discharge
   Advanced raw material formula achieves ultra-low self-discharge rate during long idle storage. Maintains consistent performance across wide indoor temperature ranges, reliable for year-round continuous operation in data rooms, telecom shelters and power stations.
6. Global Authorized Certifications for Smooth Export
   Comes with UL and CE certification, and fully complies with EU REACH hazardous substance regulations. Passed strict third-party electrical safety tests, enabling hassle-free customs clearance for bulk shipments to Europe, North America, Southeast Asia, Middle East and other regions.

• Large industrial UPS uninterruptible power supply & data center backup power
• Telecom base stations, communication cabinets, mobile signal tower power storage
• Off-grid solar & wind hybrid energy storage systems
• Centralized emergency lighting power stations for commercial buildings
• Medical equipment, industrial automation critical backup power
• Large-scale security monitoring central power supply
