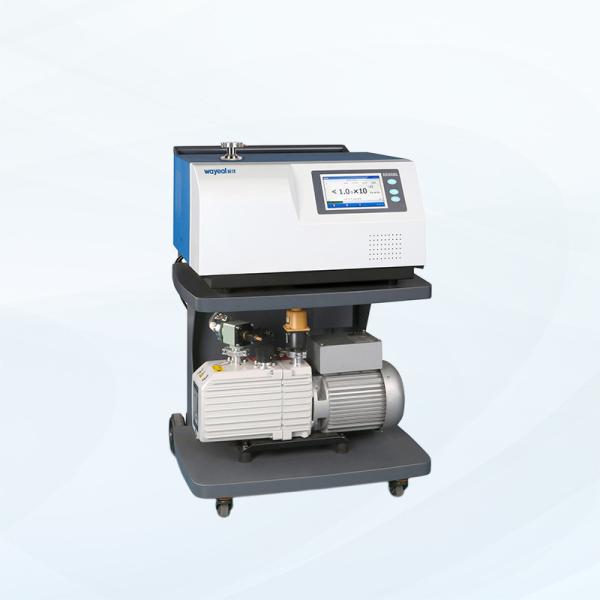

SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
SFJ-231 Helium Leak Detector With DN25KF Leak Detection Port
Specifications
Brand Name :
Wayeal
Model Number :
SFJ-231
Place of Origin :
Anhui, China
Certification :
CE
MOQ :
1 Unit
Price :
Negotiate
Packaging Details :
Wooden Case
Delivery Time :
35 days
Payment Terms :
T/T, VISA
Supply Ability :
200 Units/Month
Ion Source :
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
User Interface :
7inch Color Touch Screen
Communication Interface :
RS232/485, LAN
Detection Method :
Helium Mass Spectrometer
Operating temperature :
0~40°C
Leak rate display :
Numbers, Bar Charts, Graphs
Detectable Quality :
2, 3, 4 (H2, He3, He4)
Leak detection port :
DN25KF
Description

Technical Parameters of Helium Leak Detector:

Product Name Helium Leak Detector SFJ-231
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Main Features Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing

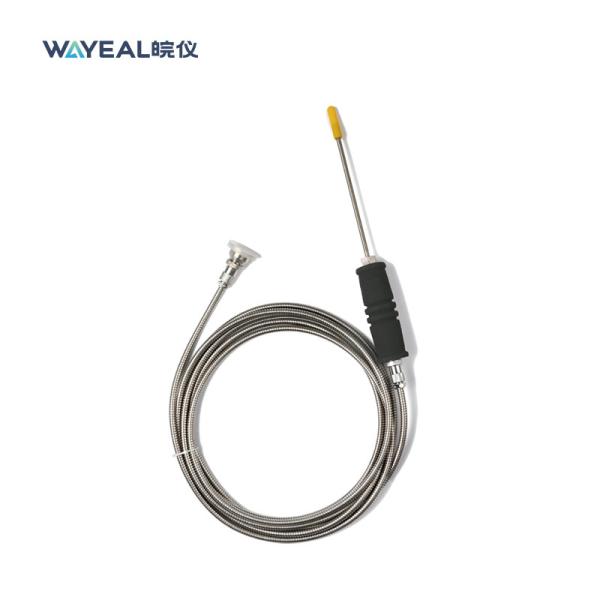

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

Sprayer and Blowing Method (Locating leaks under vacuum)

1. The helium detector evacuates the internal gas of the inspected part to a certain vacuum level, and the device reaches the leak detection state.

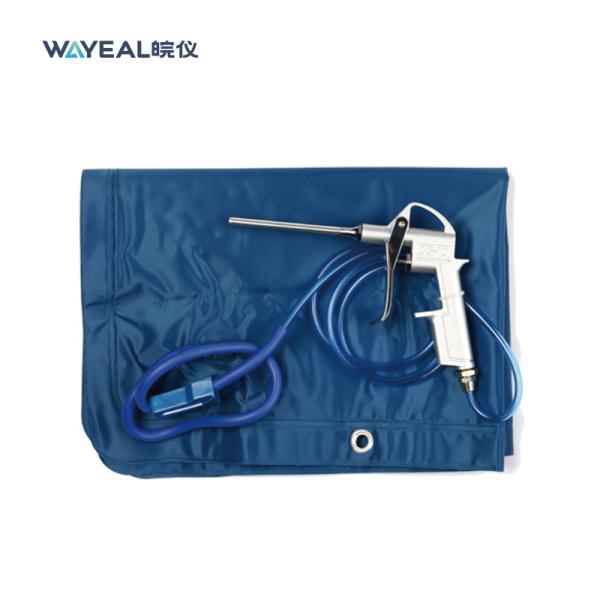

2. Helium is sprayed through the gun to sweep the outer surface of the inspected part.
3. Location of leaks by helium flow into the leak point

Features: high sensitivity, easy operation
