Specifications
Brand Name :
Wayeal
Model Number :
SFJ-16C
Certification :
CE
Place of Origin :
Anhui, China
MOQ :
1 Unit
Price :
Negotiate
Payment Terms :
T/T, VISA
Supply Ability :
200 Units/Month
Delivery Time :
35 days
Packaging Details :
Wooden Case
Leak detection port :
DN25KF
Start Time (min) :
≤1.58min
Detection Method :
Helium Mass Spectrometer
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode :
5*10-13 Pa.m3/s
Diamension :
400 * 330 *301mm
MES Interface :
Standard
Language :
Chines/English
I/O Input output interface :
8 Inputs, 8 Outputs
Description

Introduction of Helium Leak Detector:

A helium leak detector, also known as a mass spectrometer leak detector (MSLD), is used to find and size leaks into or out of a system or containing equipment. Helium, the tracer gas, is injected into a test component linked to the leak detector. The helium escaping through the test component enters the system, where it is measured and shown on a meter. It is utilized in package design, failure analysis, tooling qualification, packaging line setup and validation, and product quality monitoring.

Technical Parameters of Helium Leak Detector:

SFJ-16M Helium Leak Detector

Performance Indicators






 Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode		 Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode		 5.0×10-8
Response time(s) <1
Startup time(min) ≤95s
Leakage detection range
(Pa·m3/s)		 5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)		 1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1500
Detectable quality 2,3,4(H2 , He3, He4)

Basic Configuration










 Man-machine interface 5 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,LAN
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm		 592 * 498 * 370mm
Specifications of leak detection port DN16 KF/2pcs
Power Supply DC24V
Operating temperature 0-40ºC
Power 240W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart
Applications of Helium Leak Detector:

The Wayeal SFJ-16C Helium Leak Detector is suitable for use in various industrial vacuum detection scenarios. It can be used for vacuum leak detection in refrigeration and air conditioning systems, automobile industry, aerospace industry, pharmaceutical industry, and many other industries that require vacuum detection. The product can also be used as a mass spectrometer leak detector which makes it a versatile product for various applications.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

8 Outputs I/O Interface Helium Leak Detector For Detecting He4 In Chines / English

Sniffer Method

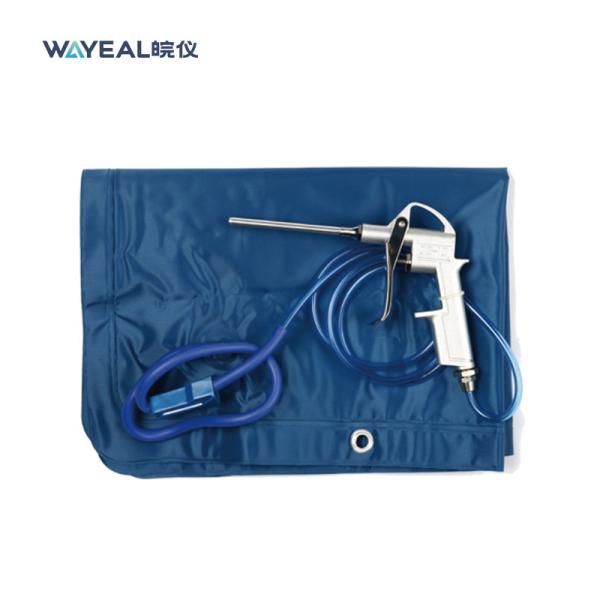

8 Outputs I/O Interface Helium Leak Detector For Detecting He4 In Chines / EnglishHelium Hood Method

8 Outputs I/O Interface Helium Leak Detector For Detecting He4 In Chines / English
