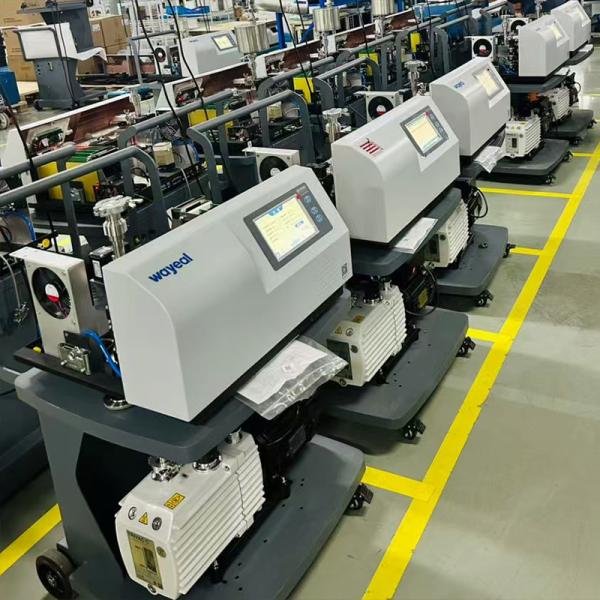

7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
7Inch Color Touch Screen Helium Leak Detector for PCBs Leak Detection
Specifications
Brand Name :
Wayeal
Model Number :
SFJ-231
Place of Origin :
Anhui, China
Certification :
CE
MOQ :
1 Unit
Price :
Negotiate
Packaging Details :
Wooden Case
Delivery Time :
35 days
Payment Terms :
T/T, VISA
Supply Ability :
200 Units/Month
Leak detection port :
DN25KF
Product Name :
Helium Leak Detector
Diamension :
645*678*965mm
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode :
2.5*10-9 Pa.m3/s
Detection Method :
Helium Mass Spectrometer
Start Time (min) :
≤1.58min
Operating temperature :
0~40°C
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode :
5*10-13 Pa.m3/s
Description

Technical Data of SFJ-231 Helium Leak Detector

Product Name Helium Leak Detector SFJ-231
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

Helium Leak Testing for PCB Sealed Chamer (Vacuum Mode)

This method is designed for circuit boards with independent sealed cavities, such as those integrating pressure sensors or MEMS components.

1. Preparation

  • Verify the PCB assembly is complete and free of mechanical damage.
  • Clean the cavity surface to remove oil and dust that could interfere with testing. Connect the cavity's vent port to the SFJ-231 helium leak detector using a DN25KF adapter, ensuring leak-free piping (pre-check with helium if necessary).
  • Power on the detector with AC220V, 50Hz/60Hz supply, allow ≤2 minutes for startup, then select "Vacuum Mode" via the touchscreen and set the leak rate threshold according to design specifications.

2. Cavity Evacuation

  • Activate the built-in or external vacuum pump to evacuate the cavity to a base pressure (typically ≤10Pa, adjusted for cavity volume and material) to eliminate residual air interference.

3. Helium Tracer & Leak Detection

  • Apply trace helium (He⁴) externally along seams (e.g., lid-substrate interface) or internally via dedicated channels. Monitor the detector's display in real-time using numerical, bar, or curve graphs. If the leak rate exceeds the set threshold (e.g., 5.0×10⁻¹² Pa・m³/s, adjustable to product standards), record the leak rate and cavity ID.

4. Data Recording & Analysis

  • Export test data via USB to generate leak reports and upload to production management systems (e.g., MES) via RS232/485 interfaces for quality traceability.
