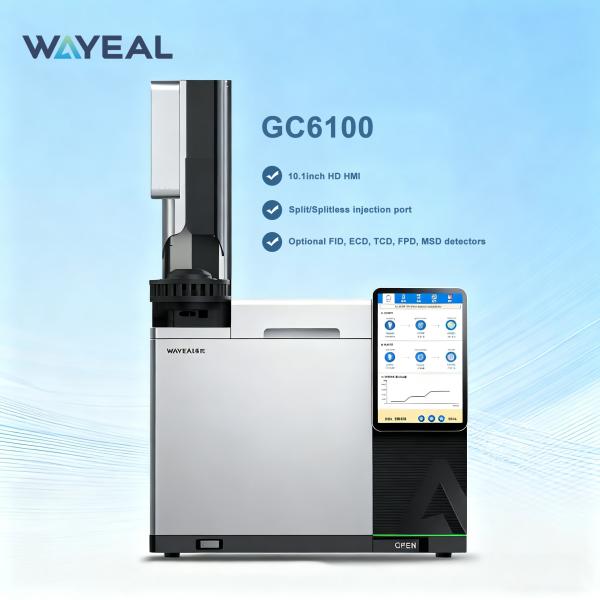

GC6100 Gas Chromatography with FID Detector
GC6100 Gas Chromatography with FID Detector
Specifications
Brand Name :
Wayeal
Model Number :
GC6100
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
15 Pieces per month
Delivery Time :
30 days
Packaging Details :
One piece per wooden case
Name :
GC System
Detection Limit :
2×10 -12g/s
Detector :
FID Detector
Column Quantities :
2 Columns
Qualitative repeatability :
≤0.05%
Position :
16
Description

GC6100 Gas Chromatography with FID Detector
Technical Parameters of GC6100 Gas Chromatography

Power Supply220V ±10%, 50Hz ±2%
Ambient Temperature5°C to 40°C
Relative Humidity20% to 85%
Technical Specifications
Retention Time repeatability<0.008% or <0.0008min
Peak Area Repeatability≤0.5% RSD
Injection Port
Injection PortSplit/Splitless
Maximum Operating Temperature450°C
Control Precision0.001 psi
Control Range0–100 psi
Gas Control ModesConstant pressure, constant flow, programmed pressure/flow ramps
Maximum Split Ratio12,500:1
Optional Carrier GasesN₂, H₂, He, Ar
Flow Rate Range (N₂ as carrier gas)0–500mL/min
Column Oven
Temperature Range Ambient +4°C to 450°C
Programmable Temperature Ramps32 steps/33 platforms
Maximum Heating Rate≥75°C/min
Cooling Time (22°C ambient)From 450°C to 50°C in <5 minutes
Maximum Program Run Time9999.99 minutes
FID Detector
Maximum Operating Temperature450°C
Minimum Detectability≤1.5pg/s
Linear Range≥10⁷
DataAcquisition RateUp to 1000 Hz (provide proof of software interface)
ECD Detector
Minimum Detectability≤4×10⁻¹⁵ g/mL
Linear Rang≥10⁴
TCD Detector
Sensitivity≥60,000 mV·mL/mg
Linear Range≥10⁴
Instant Noise≤0.1 mV
Baseline Drift≤0.2 mV
Autosampler
Sample Capacity16 positions
Solvent Bottle Positions2
Waste Bottle Position1
Syringe Cleaning ModesStandalone, pre-injection, post-injection
Injection Volume0.1–5μL

Product Performance

1. High precision

1.1 Very low noise, FID noise is better than the international leading level;
1.2 High sensitivity detector, low baseline drift;
1.3 Good reproducibility of peak area and retention time;
1.4 High temperature control accuracy and good stability, the column thermostat provides a constant temperature environment for the effective separation and detection of various components.

2. Flexibility and scalability

2.1 Optional multiple detectors (FID, FPD, ECD);
2.2 Any two detectors and two chromatographic columns can be installed at the same time; It can have three independent circuits, gas system and three signal output terminals at the same time;
2.3 Flexible syringe injection system, optional autosampler or six-port valve injection.


Product Application

Environmental Protection: Trace Toxicants in Air and Water Contaminated Areas Analysis, monitoring and research

Biochemistry: clinical applications, pathology and toxicology studies.
