Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
Specifications
Brand Name :
Wayeal
Certification :
ISO, CE
Place of Origin :
Anhui, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T
Supply Ability :
10 Pieces Per Month
Delivery Time :
60 days
Packaging Details :
One piece per wooden case
Product Name :
Automatic Vacuum Chamber Helium Leak Detection System for Lithium Battery
Power :
20KW
Opening pressure :
≤30Pa
Evacuation pressure :
≤2000Pa
Yield rate :
≥99.9%
Equipment failure rate :
≤1%
Description

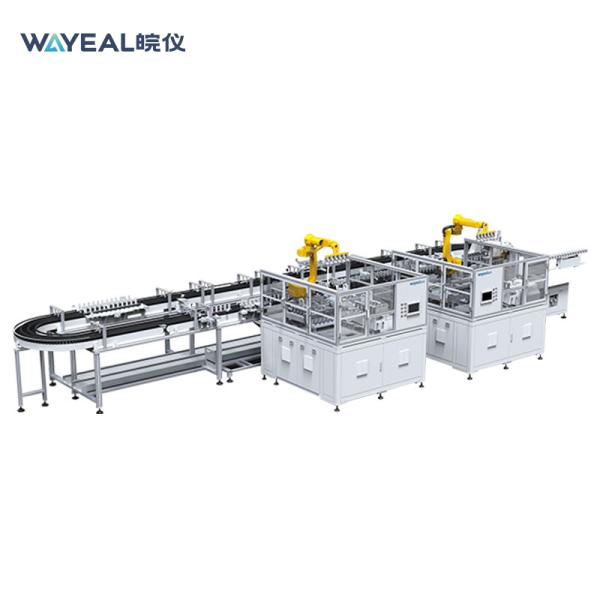

Automatic Vacuum Chamber Helium Leak Detection System for Lithium Battery

System Introduction

The vacuum acuum leak detection systems are used for the rapid and accurate detection of helium or hydrogen by vacuum helium injection, suction lance, helium hood and back pressure detection methods for industrial testing in a variety of demanding and harsh environments.

Technical Parameter of the Vacuum Chamber Leak Detection System

Automatic Vacuum Chamber Helium Leak Detection System for Lithium Battery

Workpiece

Metal bipolar plates, Membrane electrode

Product Size

4500*2000*2000mm/Customized

Power

20KW

Weight

3000KG/Depends on real item

Leak detector opening detecting pressure

≤30pa

Workpiece Evacuation pressure

≤2000pa

Helium leak detector parameters

Display ranges

1.0*10-3~10-13 Pa.m3/s

Minimum detectable leakage rate

5*10-13 Pa.m/s

Response Time

<1S

Leak rate control setting

Set up on the system according to your process requirements

Overkill Rate

≤1%

Leakage rate

0

Equipment failure rate

≤1%

Yield rate

≥99.9%

Leak detection tempo

≥3PPM

Motro Power

600 W

Ultimate pressure

1000 Pa

Product Performance

1. The size of Accept your customized sizes of vacuum chamber, equipment size and layout

2. High-end configuration, standardized design and production, and stable and reliable performance;
3. The multi-chamber linkage design can realize flexible production, and the production rhythm can reach 6PPM-20PPM per unit;
Product Application

Power switchgear, ring main unit, pole top switch, power castings
Automatic Vacuum He Leak Detector System helium leak testing machine For Lithium Battery
