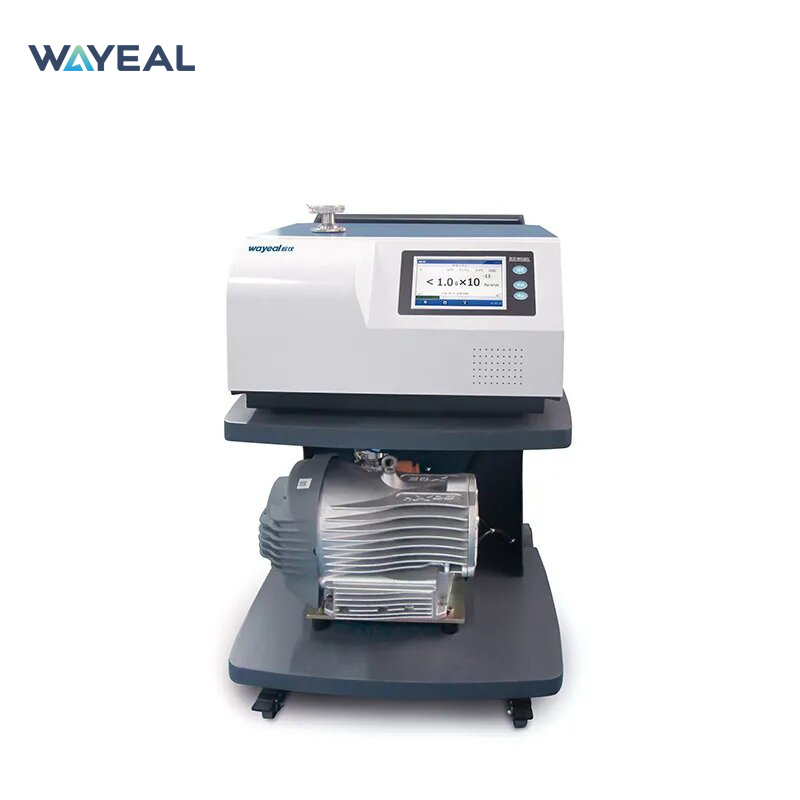

220V Dry Vaccum Pump Helium Leak Detector Refrigeration Industry
220V Dry Vaccum Pump Helium Leak Detector Refrigeration Industry
Specifications
Brand Name :
Wayeal
Model Number :
SFJ-231d
Certification :
ISO90001, CE
Place of Origin :
Anhui, China
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 Pieces Per Month
Delivery Time :
15 Days
Packaging Details :
1 Piece Per Wooden Case
Product Name :
Helium Leak Detector
Power :
AC220V, 50HZ/60HZ
Leakage detection range (Pa·m3/s) :
5.0×10-13~1.0×10-3
Maximum allowable leak detection pressure (Pa) :
1330
Ion source :
2pcs
Communication interface :
RS232/485,USB*2
Description

LCD Touch Screen Leak Detector Helium Mass Spectrometer Leak Detector

Introduction of Helium Leak Detector

Helium mass spectrometer leak detector is an instrument for rapid positioning and quantitative measurement of leakage of sealed containers. Fast and accurate detection of hydrogen or helium by vacuum helium injection, suction lance, helium hood, back pressure, etc. Suitable for a variety of demanding and harsh industrial environments.

Product Parameters

SFJ-231d Helium Leak Detector

Performance Indicators

Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

5.0×10-13

Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode

5.0×10-9

Response time(s)

<1

Startup time(min)

≤2

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)

Basic Configuration

Man-machine interface

7 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,USB*2

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

592 * 498 * 370mm

Specifications of leak detection port

DN25 KF

Power Supply

AC220V,50HZ/60HZ

Operating temperature

0-40ºC

Power

1000W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart

Features of Helium Leak Detector

1. Original imported molecular pump
2. Fault prompt and alarm function
3. Double iridium with ion source
4. One-click automatic clearing of helium background;
5. Clean air circuit system
6. Multiple leak detection modes: coarse detection, fine inspection, ultra-fine inspection and sniffing mode.

Applications of Helium Leak Detector

Scientific research
New energy battery
Aerospace
Automobile refrigeration
Analytical instruments
Power plants
Nuclear industry
Pressure vessels
