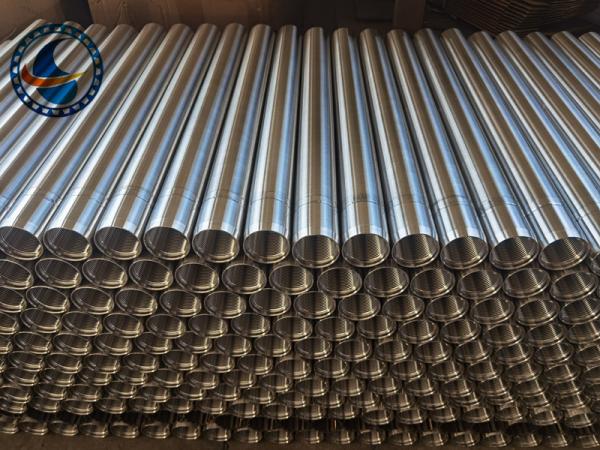

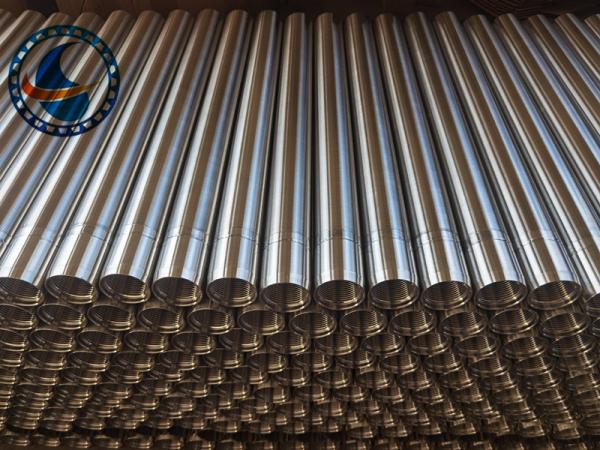

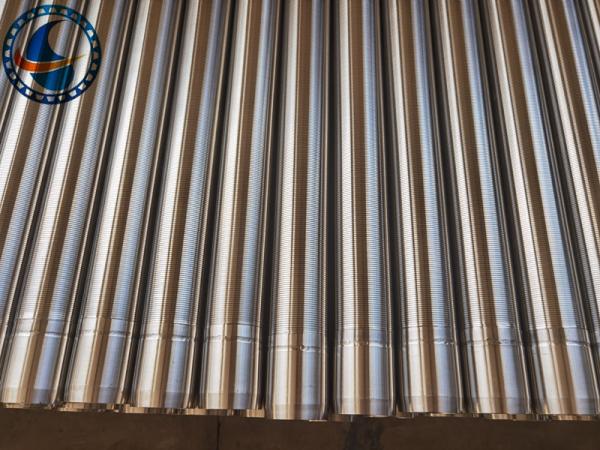

SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
SS 316L Oil Sand Control Wire Wrapped Screen Pipe With 2.28*3.56mm V Shaped Wire Shape And Polished Surface
Specifications
Brand Name :
Hengyuan
Model Number :
HY062404
Certification :
ISO, CIQ, CE, SGS
Place of Origin :
Anping, Hebei , China
MOQ :
1 piece
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 meters per day
Delivery Time :
7 days
Packaging Details :
plastic film in contaciner or woonen boxes
Name :
Oil Sand Control Wire Wrapped Screen Pipe
Material :
Stainless Steel 316L
Slot :
0.3mm
End connection :
Welded rings
Filter type :
From outside to inside
Standard length :
5.8m
Wire shape :
2.28*3.56mm V shaped
Support rod :
3*4.6mm V wire
Open area :
11.6%
Surface :
polished
Description

SS316L Oil Sand Control Wire Wrapped Screen Pipe

Oil Sand Control Wire Wrapped Screen Pipe also be named: Johnson screen, Johnson well screen, Wedge wire screen,Wound screen, Wire wrapped wire, Water well screen, Countinuous slot well screen, Wedge wire mesh, Wedge wire screen panel, Sand control screen,Wedge wire screen pipe, Wedge wire screen tube, Rotary filter drum,Downhole slotted tube, Taper steel tube, Stainless steel screen tube,Galvanized screen, Wedge wire slot tubes, Wire screen cylinder

Product Name Oil Sand Control Wire Wrapped Screen Pipe
Material Stainless steel 304,316L, 321, 904L, Duplex steel 2205,2507 etc.
Length Upto 6 meters
Standard SY/T5182-2008
Diameter From 29-1300mm
Ends Welded rings, Male/female threaded, Flange, Closed up etc.
Slot size 0.025-100 mm
Surface Polish
Wrapped wire 1*2mm, 1.2*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 2.2*3.5mm, 3*4.6mm
Support rod 2*3mm,3*4.6mm VEE wire or ø2.5-6.0mm round wire

Oil Sand Control Wire Wrapped Screen Pipe Normal Size:

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

(Width*height)(mm)

Support rod

(mm)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 VEE WIRE ø3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 VEE WIRE ø3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 VEE WIRE 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 VEE WIRE 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 VEE WIRE 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 VEE WIRE 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 VEE WIRE 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 VEE WIRE 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 VEE WIRE 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 VEE WIRE 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 VEE WIRE 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 VEE WIRE 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 VEE WIRE 4.0MM/59

Oil Sand Control Wire Wrapped Screen Pipe Usage:

Oil Sand Control Wire Wrapped Screen Pipe can be used in petroleum, gas and water well, filling with gravels, can prevent the sand and protect the equipment in the well and underground, prolong the life span. It has the characteristics of easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost and etc.
