Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Oil Well AISI 316L Oil Sand Control Wire Wrapped Screen Pipe With 0.3mm Slot Size
Specifications
Brand Name :
Heng Yuan
Model Number :
HY062502
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7 days
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20GP container
Name :
Oil Sand Control Wire Wrapped Screen Pipe
Material :
Stainless Steel 316L
Diameter :
75mm
Length :
5500mm
Slot size :
0.3mm
Wire :
2.28*3.56mm
Support rod :
3*4.6mm V wire
Package :
Wooden box
Surface :
Polished
End :
welded rings
Use :
Oil well
Description

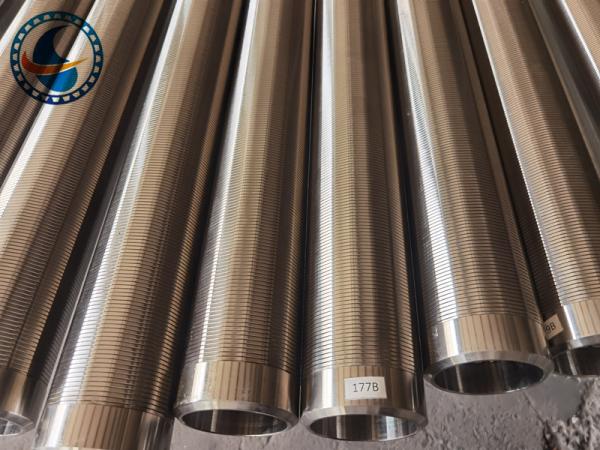

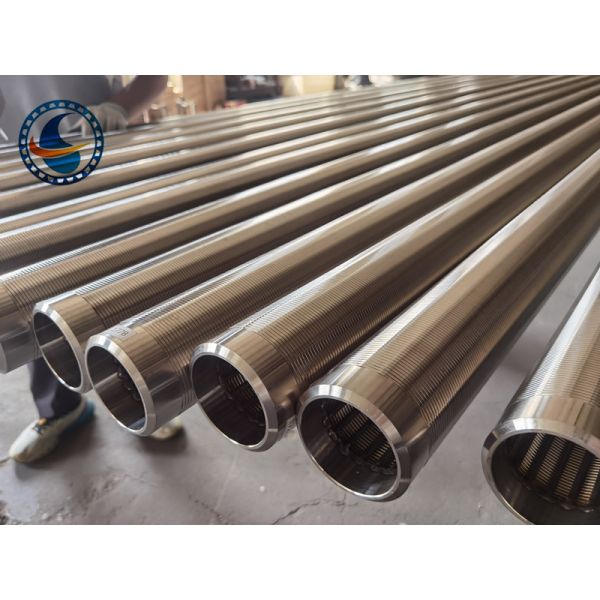

Stainless Steel 316L Oil Sand Control Wire Wrapped Screen Pipe

Stainless Steel Oil Sand Control Wire Wrapped Screen Pipe Characteristics:

Extended lifetime

Slot does not change during abrasive operation on the screen surface.

Increased efficiency

Capability to withstand heavy loads

High open area

No clogging

Perfectly smooth and flat surface

High precision of execution

Increased capacity and more precise separation, dewatering and filtration

Self-cleaning effect

Low pressure loss

High open area and strength parameter

Proper size of profile wire

Proper size of structural support wire

Profile shape of working wires (type Sb, Sbb or special wires)

Increased economical effectiveness, Lower cost

Higher efficiency

Permanence of exploited resources

Reduced maintenance cost

FAQ

Q1. Can I have a sample order for Oil Sand Control Wire Wrapped Screen Pipe ?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 5 days, mass production time needs 1-2 weeks acconding to the order quantity.

Q3. Do you have any MOQ limit for Oil Sand Control Wire Wrapped Screen Pipe ?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Oil Sand Control Wire Wrapped Screen Pipe ?

1st, let us know your requirements or application.
2nd, We quote according to your requirements or our suggestions.
3rd,customer confirms the samples and places deposit for formal order.
4th, We arrange the production.

Q6. Is it OK to print my logo on Oil Sand Control Wire Wrapped Screen Pipe ?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Oil Sand Control Wire Wrapped Screen Pipe Specification:

Name Oil Sand Control Wire Wrapped Screen Pipe
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.
