Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Stainless Steel 304 Corrosion Resistance Downhole Slotted Tube
Specifications
Brand Name :
Heng Yuan
Model Number :
HY0626
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union,
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Downhole Slotted Tube
Material :
Stainless steel
Grade :
304
Diameter :
89mm
Length :
3m
Slot size :
1.0 mm
Wrap wire :
1.5*2mm
Support rod :
2*3mm
End connection :
Thread couplings
Package :
Woden box, Container
Description

SS 304 Downhole Slotted Tube Strong Corrosion Resistance

Downhole Slotted Tube Regular Specification:

Profile wire:

Width(mm): 1.0, 1.5, 2.0, 2.3, 3.0, 3.2,

Height(mm): 1.5, 2.0, 2.5, 3.5, 4.6, 6.0

Support rods:

Width(mm): 2.0, 2.2, 2.3, 2.5, 3.2

Height(mm): 2.5, 3.0, 3.5, 4.6, 6.0

Round rods : diameter from 2.50 mm to 6.0 mm

Note: other wires and rods available upon request

Slot size(mm): 0.10, 0.25, 0.70, 1.0, 2.0, 5.0 ... 45mm also achieved upon request.

Diameter(mm):48, 63, 89, 117, 168, 219, 273, 325, 500, 800, 1000

Length: up to 6 meters.

End connection: Plain beveled ends for welding or threaded male &female coupling(spiral).

Other sizes available on request. Deep well construction specifications available on question.

Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.

Downhole Slotted Tube Specificarion:

Material Stainless steel
Grade 304
O.D 89 mm
Size 3-1/2"
Length 3 m
Solt size 1.0 mm
End connection Thread coupling ( male / female )
Wire size 1.5*2mm Vee shaped wire
Support Rod 2*3mm Vee shaped wire
Name Downhole slotted tube

Downhole Slotted Tube Characteristic:

Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance

Downholde Slotted Tube Use:

Downhole Slotted Tube has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:

water well

water supply systems

Refining & petrochemical

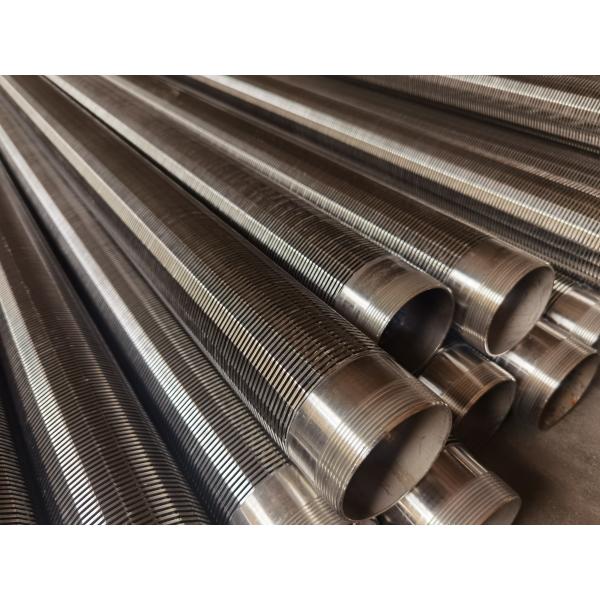

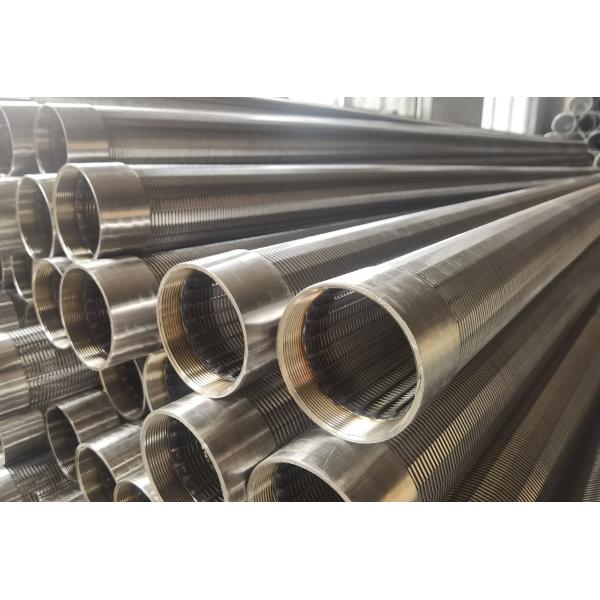

Downhole Slotted Tube Pictures

Stainless Steel 304 Corrosion Resistance Downhole Slotted TubeStainless Steel 304 Corrosion Resistance Downhole Slotted Tube

Stainless Steel 304 Corrosion Resistance Downhole Slotted TubeStainless Steel 304 Corrosion Resistance Downhole Slotted TubeStainless Steel 304 Corrosion Resistance Downhole Slotted Tube
