Specifications
Brand Name :
Heng Yuan
Model Number :
HY091501
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui city,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Johnson wire wrapping screen
Material :
Stainless steel 304
Length :
2900mm
Diameter :
89mm
Slot size :
1.5mm
Wire :
1.5*2mm Vee- Wire
Support rod :
2*3mm Vee-Wire
End connection :
Male/female Threaded
Hole shape :
Wedge,v-shape
Feature :
Corrosion Resistance
Size :
can be customized
Weave style :
Wedge Wire Wrapped
Description

Stainless Steel Johnson Wire Wrapping Screen For Sand Control

Johnson Wire Wrapping Screen is welded by winding strip winding bracket, it has high strength, stiffness and bearing capacity, can be made into a variety of shapes of rigid screening filter device. This product is processed by fusion welding process, seam screen surface has the advantages of high screening efficiency, low maintenance requirements, long service life.

Due to there are many various specifications and sizes, So can't supply you quotation here, specific specifications can be directly contact us.

Looking forward to cooperating with you.

Johnson Wire Wrapping Screen Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Johnson Wire Wrapping Screen Characteristic:


1. Easy to leak, wear and corrosion resistance.
2. The cross section of the mesh is trapezoidal. The gap is narrow at the top and wide at the bottom.
3. It is a screen bar made of cold-rolled stainless steel wire.

The support bar is welded by automatic mine screen production equipment.

The screen seam is uniform, the welding quality is stable, the opening rate is high, the service life is long, and the strength is high. Rigidity and bearing capacity can be made into rigid screening and filtering devices of various shapes.

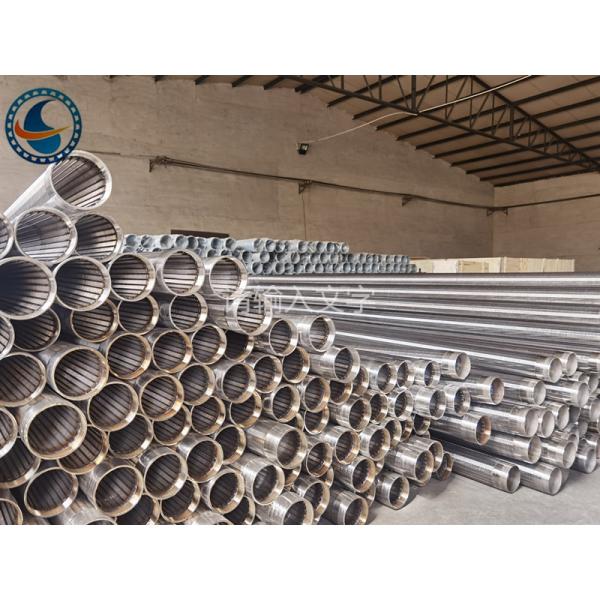

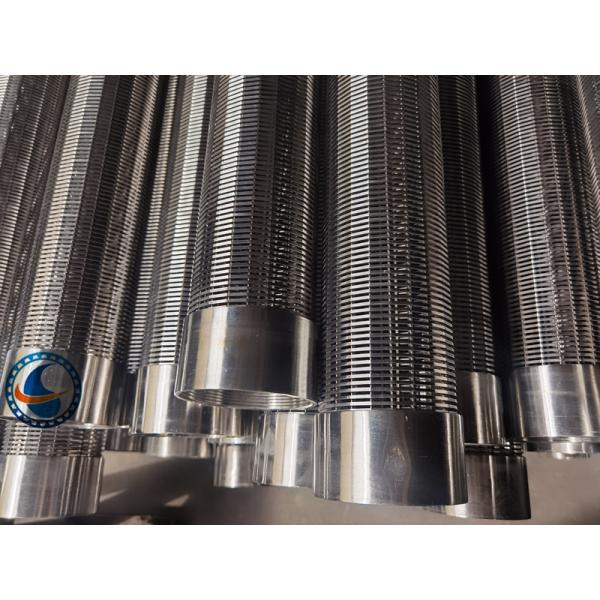

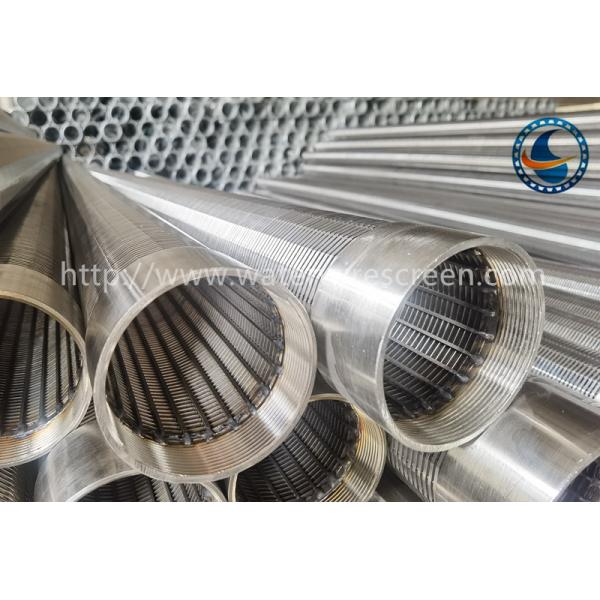

Johnson Wire Wrapping Screen Pictures:

Johnson Wire Wrapping 304 Stainless Steel Sand Control Screens 2900mm LengthJohnson Wire Wrapping 304 Stainless Steel Sand Control Screens 2900mm Length

Johnson Wire Wrapping 304 Stainless Steel Sand Control Screens 2900mm LengthJohnson Wire Wrapping 304 Stainless Steel Sand Control Screens 2900mm Length

Johnson Wire Wrapping 304 Stainless Steel Sand Control Screens 2900mm Length
