Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Full Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
Specifications
Brand Name :
Heng Yuan
Model Number :
HY091702
Certification :
ISO,CIQ,CE, FORM E etc
Place of Origin :
Hengshui City,Hebei,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,64 pcs per 20 ft container
Name :
Full Welded Wedge Wire Wound Screen Tube
Material :
stainless steel 316L
Diameter :
63mm
Length :
2000mm
Slot size :
0.3mm
Wire :
1.5*2.5mm
Support rod :
2*3mm etc
Package :
Wooden box
Surface :
Polished
Hole shape :
Vee-shaped
Description

Stainless Steel 316L Full Welded Wedge Wire Wound Screen Tube

Full Welded Wedge Wire Wound Screen Tube Materials:

304, 316L Hastelloy alloy, with strong structure, tensile and compressive properties, high strength and corrosion resistance, and can work under high temperature.

Full Welded Wedge Wire Wound Screen Tube Structure:

Cylindrical screen is made up of rod and V wire wrapped around on advanced inverter welding equipment made in welding, solder joint strength is high, uniform crack, corrosion resistance is strong, effective filter has big filter area, good seepage, simple structure, cracks in 0.05 millimeter above, can be arbitrarily selected by the user, according to user needs, can supply alone.

Full Welded Wedge Wire Wound Screen Tube Features:

Full welding type filter tube, filter board is to use the triangle (V) stainless steel wire (cross or carbon steel wire welded together, welding high strength, good filtering effect, not easy jam is chemical, mining, petroleum, paper making, water Wells, water treatment equipment, sugar, wine and other industries filtration equipment.

Full Welded Wedge Wire Wound Screen Tube Specification:

Name Full Welded Wedge Wire Wound Screen Tube
Material Stainless steel 304, 304L, 316L and 321 etc.
Profile Wire

1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc
Support Rods 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm
Round From 2.5mm to 6.0mm
Slot Size 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc
Pipe Length Max 6 meter
Pipe diameter 25mm to 1300mm
Screen Ends Plain Beveled ends, male/female threaded, flange or close up.

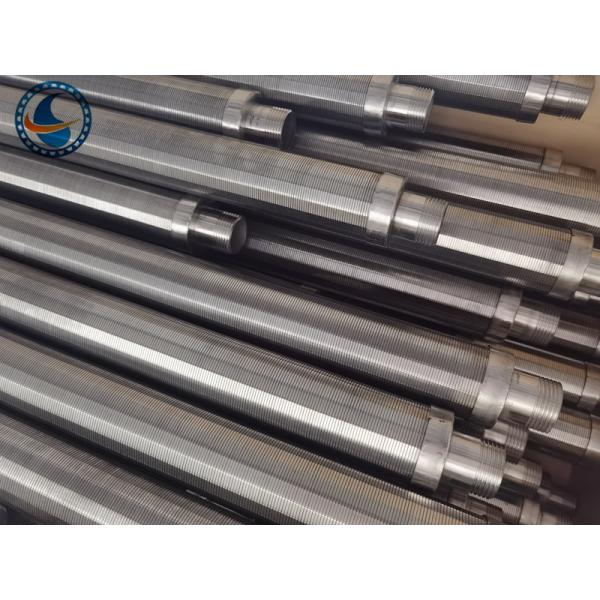

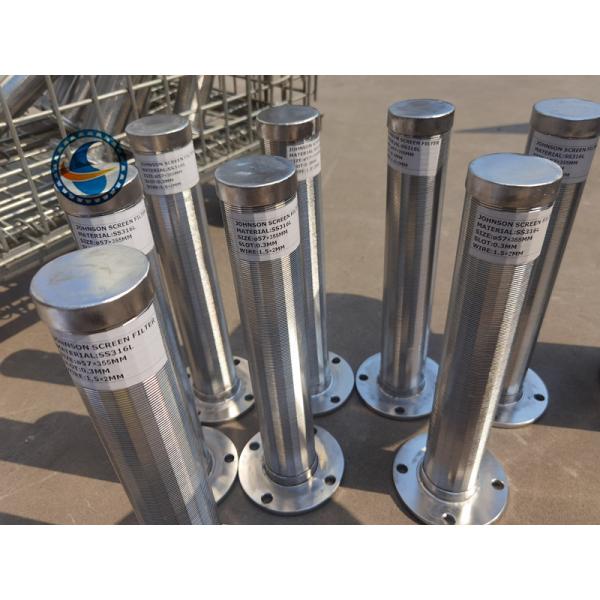

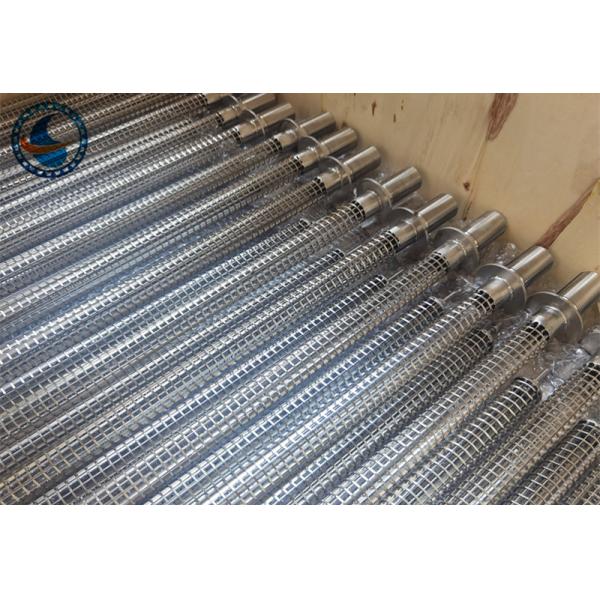

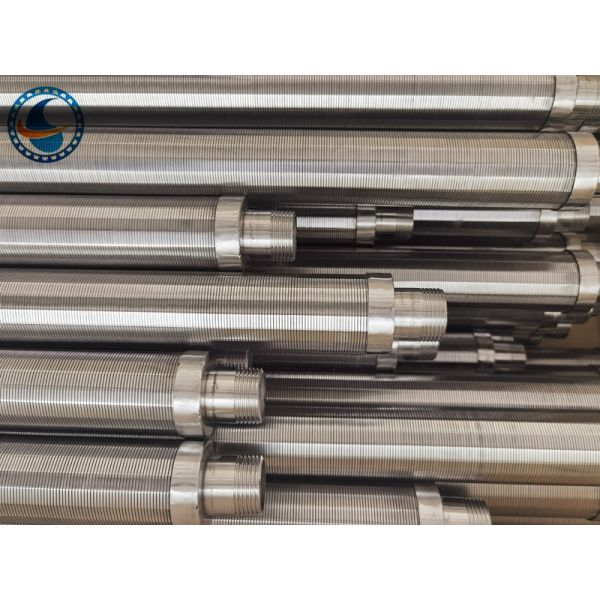

Full Welded Wedge Wire Wound Screen Tube Pictures:

Full Welded Stainless Steel 316l Odm Wedge Wire Screen PipeFull Welded Stainless Steel 316l Odm Wedge Wire Screen PipeFull Welded Stainless Steel 316l Odm Wedge Wire Screen PipeFull Welded Stainless Steel 316l Odm Wedge Wire Screen Pipe
