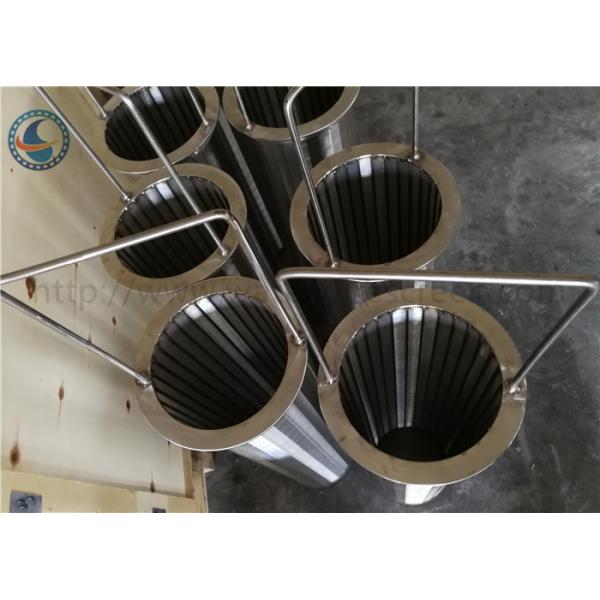

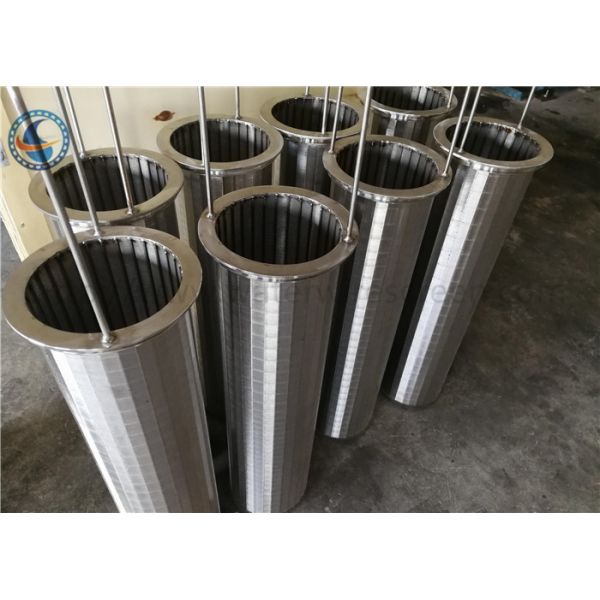

Stainless Steel 316 Filter Welded Johnson Screen Mesh
Stainless Steel 316 Filter Welded Johnson Screen Mesh
Stainless Steel 316 Filter Welded Johnson Screen Mesh
Stainless Steel 316 Filter Welded Johnson Screen Mesh
Specifications
Brand Name :
HengYuan
Model Number :
HY-11
Certification :
ISO, SGS, CE, CIQ
Place of Origin :
Anping, Hebei, China
MOQ :
1 piece
Price :
Negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs /month
Delivery Time :
7 days
Packaging Details :
wooden boxes,container
Name :
2507 Stainless Steel Johnson Wedge Wire Screens For Filteration
Material :
Low carbon galvanized ,stainless steel
Length :
Upto 6000mm
Diameter :
29-1200mm
Technique :
Full welded
Features :
Non-clogging
Application :
Filteration
Package :
Wooden boxes,container
slot type :
slot
wire type :
V wire
support wire :
v wire
usage :
liquid filter
Description

219.1 mm Stainless steel 316 Filter Johnson screen mesh

219.1 mm Stainless steel 316 Filter Johnson screen mesh have two types. One type consists of two layers wedge wire screens and the middle filter. The other type consist of perforated base pipe or slotted API casing pipe and outer screen jacket. The base pipe can be stainless steel or carbon steel API 5CT casing. Having the API casing inside a wire wrap screen jacket is supporting the screen and enhance the capabilities and high tensile strength Loads. Base pipe can be made from API pipe seamless casing spiral or stainless steel casing. Opening area for the base pipe is up to 15% and for the jacket is up to 30%. Johnson type jacket slot size is between 0.15mm to 3mm.

Wedge Wire Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30 Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot Size 0.015, 0.020, ...0.10, 0.15, 0.20, 0.25, 0.30...6.00mm also achieved upon request.
Material galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 20mm to 1200mm.
End Connection Plain beveled ends, flanged or threaded couplings


Features of Johnson wire wrap screen

• They are non-clogging


• Self-supported and rigid


• Very long lifetime


• Reliable and consistent filtration rating


• All metallic construction (non-metallic also possible like PP)


• Easy to clean smooth filtering surface


Specification (wedge wire): Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Specification (support rod): Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other specifications available as per request
Slot size 0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also achieved upon request.
Material: galvanized low carton (LCG), stainless steel (304,316 etc.)
Length up to 6 meters.
Diameter from 25mm to 1200mm.
End connection Plain beveled ends, flanged or threaded couplings

Stainless Steel 316 Filter Welded Johnson Screen MeshStainless Steel 316 Filter Welded Johnson Screen MeshStainless Steel 316 Filter Welded Johnson Screen Mesh​

​
